4

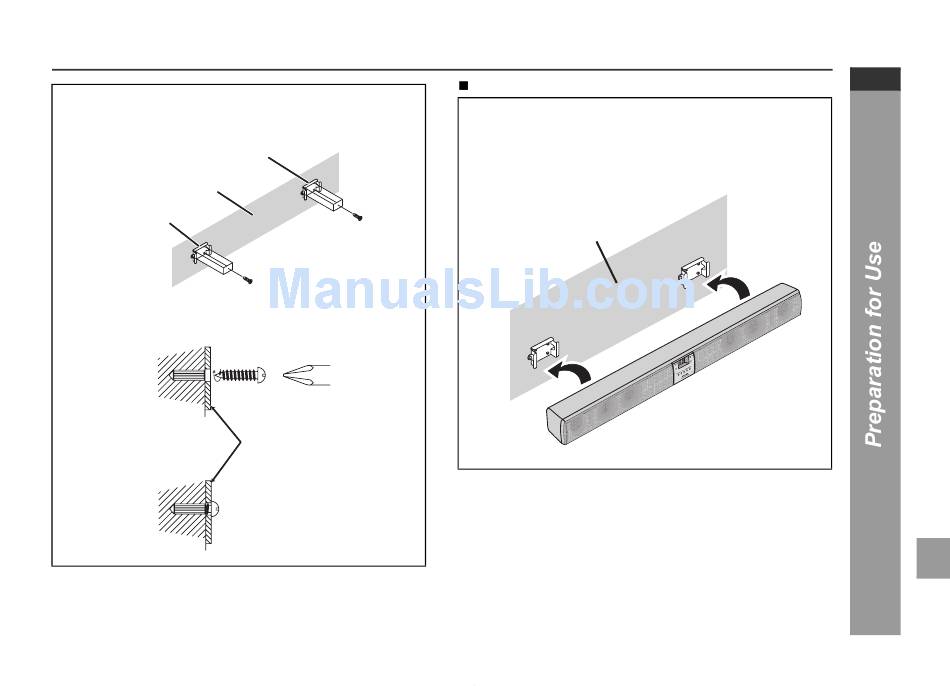

Screw the wall mount angle to the wall as shown in the
illustration. (Total screw is 8 pieces)
Wall mount angle
Wall surface
Wall mount angle
Wall surface
Wall surface
Note:
Make sure all screws are fully tightened. (screws are not
supplied)
(screws x 4)
(screws x 4)
Wall mount angle
Installing the speaker
1
Align the wall mount slot at the speaker to the wall
mount angle.
2
Slot the speaker into the wall mount angle.
3
Fix them securely.
Wall surface
HT-SB200
ENGLISH
E-8
