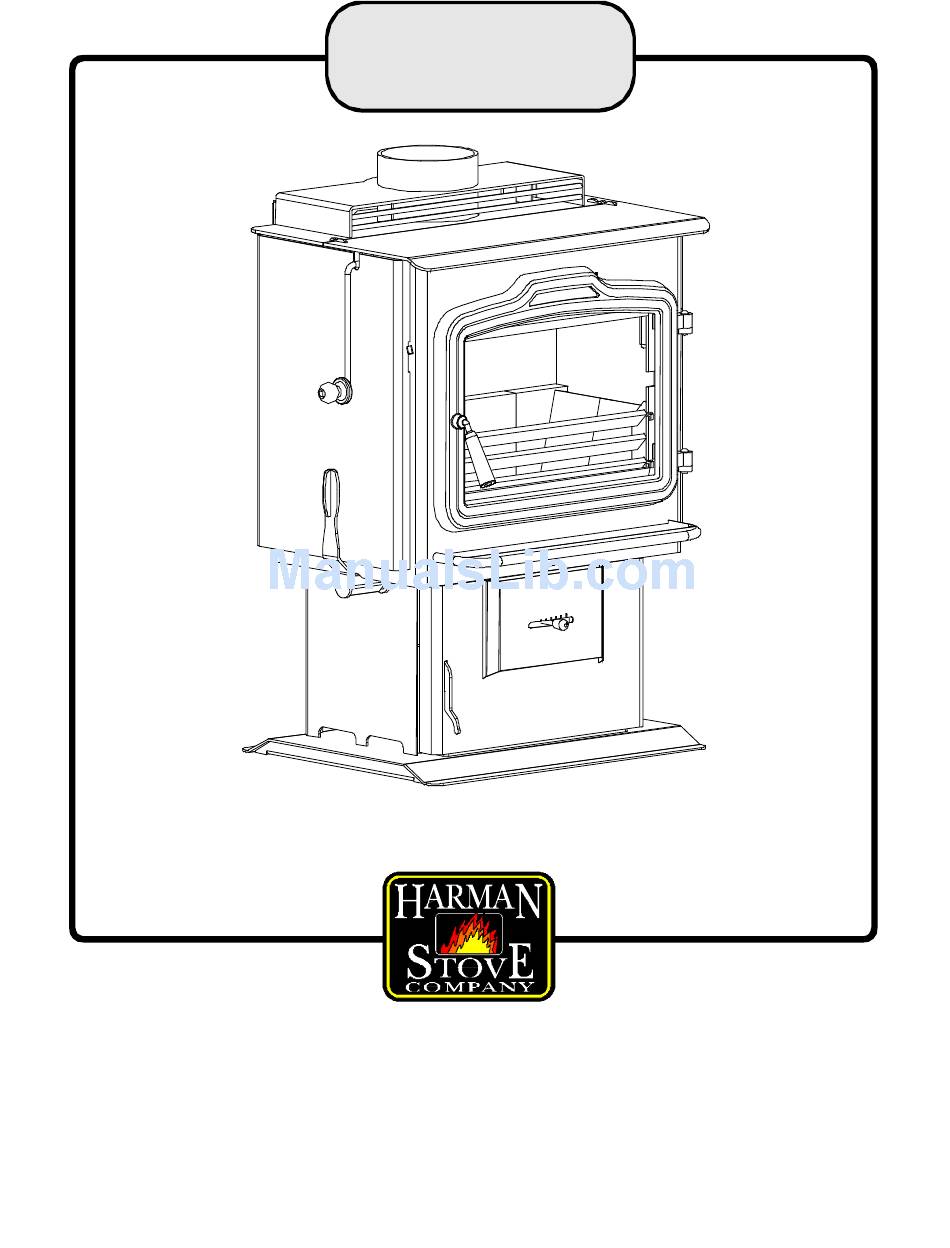

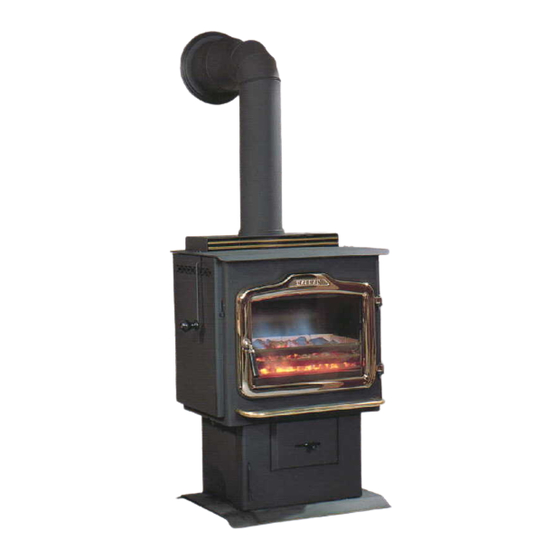

HARMAN
TLC 2000
OPERATOR'S
MANUAL
FOR USE IN THE U.S. AND CANADA
SAFETY NOTICE: IF THIS HARMAN TLC 2000 STOVE IS NOT PROPERLY INSTALLED, A
HOUSEFIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW INSTALLATION DIRECTIONS.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONSAND INSTALLA-
TION INSPECTION REQUIREMENTS IN YOUR AREA.
R6
Advertisement
Table of Contents
Related Manuals for Harman Stove Company TLC 2000 Stove
Summary of Contents for Harman Stove Company TLC 2000 Stove
- Page 1 OPERATOR'S MANUAL FOR USE IN THE U.S. AND CANADA SAFETY NOTICE: IF THIS HARMAN TLC 2000 STOVE IS NOT PROPERLY INSTALLED, A HOUSEFIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW INSTALLATION DIRECTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONSAND INSTALLA-...
-
Page 2: Table Of Contents
Failure to follow instructions may result in property damage, bodily injury, or even death. NOT TESTED FOR MOBILE HOME INSTALLATIONS. SAVE THESE INSTRUCTIONS Harman Stove Company 352 Mountain House Road Halifax, PA 17032 TLC 2000 Coal Stove INDEX... -
Page 3: Carbon Monoxide (Co) Awareness
CO detectors are very sensitive and may sound (Never sleep in the same room with any coal burning stove.) Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or “freshen up”... -
Page 4: Specifications
Specifications - Harman TLC 2000 Weight Flue Size Log Length Recommended Heating Capacity Blower Size (optional) 375 lbs 6 inch 16" with 18" Max 1,900 sq. ft. 135 variable speed TLC 2000 Coal Stove... - Page 5 Top Load Door Arm Wood Air Control Side Shield Removable Shaker Handle Front Load Door Latch Ash Door Latch Top Load Door TLC 2000 Coal Stove Clean-out Cover Top Load Opening Glass Door Grates Coal Air Control Ash Door...
-
Page 6: Operation
To open the top load door move the wooden knob located on the left side of the stove front and upward until it locks the top open. Page 6. If the latch in either of your TLC 2000 doors needs ad- justment, follow the instructions given in the Maintenance sec- tion. -
Page 7: Building A Fire
2" - 3" (50 mm - 80 mm) is formed; (You may need to leave the ash door open a crack to get the blaze going properly, but never leave the stove unattended.) Add more wood to create a deeper charcoal base 3" to 4". - Page 8 Fireplace Stove Reloading. Once you have prepared and maintained a thick char- coal bed, you should be able to reload the stove, allow some burning at the maximum air setting, and reset the air control in about five minutes. Select hardwoods if possible, as they are heavier and contain more heating capacity (BTU’s) per load than do soft-...
- Page 9 Avoid overfiring your stove, a potentially hazardous situation which can lead to overheating of combustible mate- rials, damage to the stove, and in extreme cases, cause a fire. Overfiring is caused by: 1. Too much air flowing through the stove too quickly. 2. You may have positioned the primary air control level too far to the right.
- Page 10 To install the grill place the handle in the grill as shown at left. The grill can now be lifted and positioned in the open- ing on top of the stove as shown below left. Caution: Cooking Grill May Be Hot. Always wear gloves when handling the grill.
-
Page 11: Maintenance
Abrasive cleaners and metal polishes will remove the plating and therefore should never be used. If the door needs to be cleaned, wait until the stove is completely cool, then use a sponge, soap and water to gently remove dirt and stains. Before relighting the stove, remove all soap residue and wipe dry. - Page 12 Blower The optional blower on your TLC 2000 stove re- quires very little maintenance. You should, however, keep the air inlet and the motor free of dust and dirt.
-
Page 13: Installation
DO NOT INSTALL IN A SLEEPING ROOM Assembly Blower ( Optional ) Bolt the blower to the bottom rear of the stove with four 1/4-20 bolts. Tighten the bolts, but do not overtighten. The power cord for the blower must be connected to a grounded outlet, and may not be routed above, under, over or around the stove itself. - Page 14 A parallel installation is one in which the back and sides of the stove are parallel to the walls behind and to the side of the stove. A corner installation is one in which the back of the stove is positioned diagonally across a corner of the room.
-
Page 15: Chimney System
(to keep debris and creosote flakes inside the system). Each joint, including the one to the stove’s flue collar and the one to the chimney itself should be secured with at least three sheet metal screws. -
Page 16: The Chimney
7" (180 mm) or 8" (200 mm) may be used. For square or rectangular masonry chimneys, nominal sizes of 8" x 8"or 8"x 12" (200 mm x 200 mm, 200 mm x 300 mm) may be used. TLC 2000 Coal Stove... - Page 17 A breech pipe must extend at least 2" (50 mm) into the room, so the connector can be attached with sheetmetal screws. TLC 2000 Coal Stove Venting to a Masonry Fireplace Chimney In some situations, a code compliant chimney originally used for a masonry fireplace may be used to install your TLC 2000.
-
Page 18: Installing To A Prefabricated Chimney
If you smell smoke, turn up the air control lever setting, and thoroughly ventilate your dwelling. During future burns, be careful not to overload the stove with fuel, so you will not be tempted to constantly operate at a low air control setting. -
Page 19: Parts List
TLC 2000 Parts List 1-10-08074 2-00-852129 1-10-08127 1-00-08710 3-44-10050 2-00-852149 2-00-852153 8A. 2-00-852140-2 2-00-852140-1 2-00-852141 10A. 2-00-852145 10B. 2-00-852144 11A. 1-10-08159A 11B. 1-10-05165 3-43-4722386 1-10-08690 1-10-08718 2-00-852132 16A. 2-00-852135 16B. 3-31-08739 2-00-852133 2-00-854148 3-40-08746 2-00-852136 2-00-08725 2-00-08726 3-40-900450125 2-00-852119 3-00-00208 1-00-08643 1-10-852166 2-00-852139... -
Page 20: Parts Diagram
34. Brick Backers (2) 35. 1/4 & 1/8 Dowel Pins (2) TLC 2000 Coal Stove... -
Page 21: Warranty
MERCHANTABILITY, OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. No employee, agent, dealer, or other person is authorized to give any warranty on behalf of Harman Stove Company. This warranty does not apply if the product has been altered in any way after leaving the factory. Harman Stove Company and its agents assume no liability for “resultant damages of any kind”...
