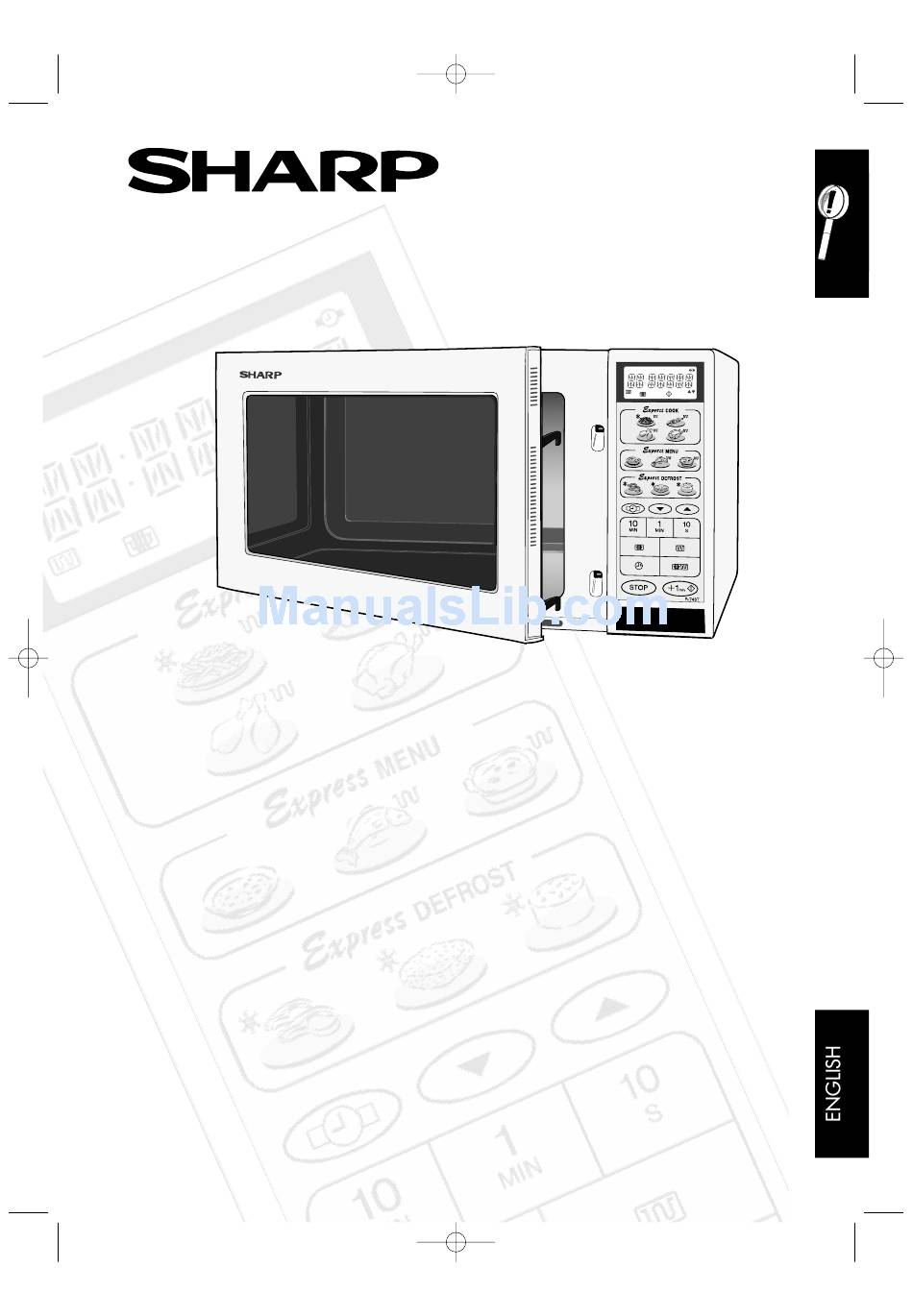

Important
R-74ST
MICROWAVE OVEN WITH GRILL
OPERATION MANUAL WITH COOKBOOK
OPERATION MANUAL
This operation manual contains important information which you should read carefully before using
your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the
oven is modified so that it operates with the door open.
900 W (IEC 60705)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-74ST and is the answer not in the manual?

Questions and answers

Summary of Contents for Sharp R-74ST

  • Page 1 R-74ST ENGLISH 15/06/2001 9:37 AM Page A Important R-74ST MICROWAVE OVEN WITH GRILL OPERATION MANUAL WITH COOKBOOK OPERATION MANUAL This operation manual contains important information which you should read carefully before using your microwave oven. IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified so that it operates with the door open.
  • Page 2 Page B RATINGS LABEL R-74ST 230V 50Hz 2.35kW SERIAL No. _ _ _ _ _ _ _ _ _ SHARP ELECTRONICS (U.K.) LTD 1000W FABRIQUE AU ROYAUME - UNI FABRICADO EN EL UNIDO 2450MHz 900W MADE IN U.K. Dear Customer, Congratulations on acquiring your new microwave oven with grill, which from now on will make your kitchen chores considerably easier.
  • Page 3: Table Of Contents

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 1 CONTENTS OVEN AND ACCESSORIES ..........2 CONTROL PANEL .
  • Page 4: Oven And Accessories

    NOTE: When you order accessories, please mention two items: part name and model name to your dealer or SHARP authorised service agent. This microwave will be supplied with 2 racks (High and Low).
  • Page 5: Control Panel

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 3 CONTROL PANEL Digital display and indicators: 1. MICROWAVE indicator 2. GRILL indicator 3. CLOCK SET indicator 4. LESS/MORE indicators 5. COOKING IN PROGRESS indicator COOK Operating keys: 6. EXPRESS COOK keys Press to select one of the 4 automatic cooking programmes.
  • Page 6: Important Safety Instructions

    EBR-45ST licensed by Do not operate the oven if it is damaged or SHARP must be used. This is available from your malfunctioning. Check the following before use: dealer. Refer to the frame installation instructions for a)The door;...
  • Page 7 SHARP to do so. If the oven lamp fails, please consult your dealer or an authorised SHARP Temperature of the container is not a true service agent.
  • Page 8: Installation

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 6 IMPORTANT SAFETY INSTRUCTIONS Do not use metal utensils, which reflect microwaves MENU operation, because they may melt. Plastic and may cause electrical arcing. Do not put cans containers must not be used during above modes in the oven.
  • Page 9: Before Operation

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 7 BEFORE OPERATION Your oven has an energy save mode. Plug in the oven. Nothing will appear on the display at this time. 1. Open the door. The oven display will show “ENERGY SAVE MODE”.
  • Page 10: Setting The Clock

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 8 SETTING THE CLOCK There are two setting modes: 12 hour clock and 24 hour clock. Step 1. Step 2. 1. To set the 12 hour clock, press the CLOCK SETTING key once, as in Step 1 opposite.
  • Page 11: Microwave Power Levels

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 9 MICROWAVE POWER LEVELS Your oven has 5 power levels. To choose the power 450 W (50 % output) for dense foods which level for cooking, follow the advice given in the require a long cooking time when cooked recipe section.
  • Page 12: Grill Cooking/Dual Grill Cooking

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 10 GRILL COOKING/DUAL GRILL COOKING This microwave oven has two GRILL cooking modes: 1. Grill only. 2. Dual Grill (Grill with microwave). 1. GRILL ONLY COOKING This mode can be used to Grill/Brown food.
  • Page 13: Other Convenient Functions

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 11 OTHER CONVENIENT FUNCTIONS 1. MULTIPLE SEQUENCE COOKING A sequence of 3 stages (maximum) can be programmed using combinations of MICROWAVE, GRILL or DUAL GRILL. Example: To cook : 10 minutes on 450 W power (Stage 1).
  • Page 14 R-74ST ENGLISH 15/06/2001 9:37 AM Page 12 OTHER CONVENIENT FUNCTIONS 2. MINUTE PLUS FUNCTION The +1min/START key allows you to operate the two following functions: a. Direct start You can directly start cooking on 900 W microwave power level for 1 minute by presssing the +1min/START key.
  • Page 15: Express Cook, Express Menu & Express Defrost Operation

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 13 EXPRESS COOK, EXPRESS MENU & EXPRESS DEFROST OPERATION EXPRESS COOK, EXPRESS MENU and EXPRESS DEFROST automatically work out the correct cooking mode and cooking time. You can choose from 4 EXPRESS COOK, 3 EXPRESS MENU and 3 EXPRESS DEFROST menus.
  • Page 16: Express Cook Chart

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 14 EXPRESS COOK, EXPRESS MENU & EXPRESS DEFROST OPERATION Example: To cook Chicken Legs 0,4 kg. 1. To select the menu required and weight range, press the CHICKEN LEGS key three times. After 2 seconds the oven will start to cook automatically.
  • Page 17: Express Menu Chart

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 15 EXPRESS MENU CHART MENU WEIGHT (Increasing PROCEDURE Unit) / UTENSILS Chicken Pan with 0,5 - 1,5 kg* (500 g) • See recipe for Chicken Pan with Vegetables on Vegetables (initial temp Chicken 5° C) page 17.
  • Page 18: Recipes For Express Menus

    R-74ST ENGLISH 15/06/2001 9:37 AM Page 16 RECIPES FOR EXPRESS MENUS CHICKEN PAN WITH VEGETABLES Spicy chicken fricassee Ingredients Preparation 0,5 kg 1,0 kg 1,5 kg 1. Mix the rice and saffron and place in the greased dish. 60 g...
  • Page 19 R-74ST ENGLISH 15/06/2001 9:37 AM Page 17 RECIPES FOR EXPRESS MENUS GRATIN Spinach gratin Ingredients Preparation 1. Mix together the leaf spinach with the onion 0,5 kg 1,0 kg 1,5 kg and season with salt, pepper and nutmeg. 150 g...
  • Page 20: Care And Cleaning

    After 3 minutes do both GRILL heating elements become red? If you answer “NO” to any of the above questions, call a Service Technician appointed by SHARP and report the results of your check. See inside back cover for details of address.
  • Page 21: Service Addresses

    463-43113 BELGIUM En cas d´une réclamation concernant une four a micro-onde SHARP, nous vous prions de vous adresser à votre spècialiste ou à une adresse des SHARP Services suivantes. Indien uw magnetron problemen geeft kunt u zich wenden tot uw dealer of een van de onderstaande Sharp service centra.
  • Page 22 Bahnhofstraße 17, Blitz Elektro-Elektronik GmbH, Tel: 03691-292930, Fax: 03691-292915 FRANCE En cas de réclamation pour les fours micro-ondes SHARP, nous vous prions de vous adresser à votre spécialiste ou à l’une des stations techniques agréées SHARP suivantes : A.A.V.I.: 1, Rue du Mont de Terre, 59818 Lesquin Cédex. Tél : 03 20 62 18 98 - Fax : 03 20 86 20 60. Départements desservis : 02, 08, 59, 62, 80 / ASYSTEC : P.A.
  • Page 23 446696, Fax: 095-434337 / AS. TEC., Via R. Villasanta 227, 09100 Cagliari, Phone: 070-524153, Fax: 070-504109 ESPANA En caso de una reclamación con vuestra SHARP Microwave, preguntan por favor la casa dónde han comprado su máquina o infórmanse en una de las SHARP Service casas siguientes.
  • Page 24 R-74ST ENGLISH 15/06/2001 9:38 AM Page 22 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . 872.85.42, CL BRUCH 55, 08240 MANRESA, BARCELONA / PULGAR I EDO S.L. - 93/ 436.44.11, CL CASTILLEJOS 333, 08025 BARCELONA, BARCELONA / ELECTRONICA MATEOS - 849.28.77, CR DE CALDAS (BAJOS) 76, 08400...
  • Page 25 R-74ST ENGLISH 15/06/2001 9:38 AM Page 23 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . 33930 LA FELGUERA/LANGREO, ASTURIAS / S.A.T. JUAN-MANUEL, 98/ 581.22.48, CL URIA 60, 33800 CANGAS DE NARCEA, ASTURIAS / DANIEL SERRAN0 LABRADO, 920/ 37.15.16, CL JOSE GOCHICOA 16, 05400 ARENAS DE S.PEDRO, AVILA / ELECTRONICA GREDOS, 920/ 22.48.39, CL EDUARDO MARQUINA 24, 05001...
  • Page 26 R-74ST ENGLISH 15/06/2001 9:38 AM Page 24 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . SANTA URSULA 5, 28801 ALCALA DE HENARES, MADRID / GARMAN C.B., , CL CARLOS SOLE 38 local, 28038 MADRID, MADRID / AVILES SANCHEZ ANTONIO, 952/ 36.16.02, CL CIUDAD DE ANDUJAR 2, 29006 MALAGA,...
  • Page 27: Specifications

    R-74ST ENGLISH 15/06/2001 9:38 AM Page 25 SPECIFICATIONS AC Line Voltage : 230 V, 50 Hz, single phase Distribution line fuse/circuit breaker : Minimum 16 A AC Power required: Microwave : 1,37 kW Grill : 1,0 kW Grill/Microwave : 2,35 kW...
  • Page 28 Wäldern worden Gedruckt in Grossbritannien Imprimé au Royaume-Uni SHARP ELECTRONICS (EUROPE) GMBH. Gedrukt in Groot-Brittannie Sonninstrasse 3, 20097 Hamburg Stampato in Gran Bretagna TINS-A274URR0 Germany Impreso en el Reino Unido...
