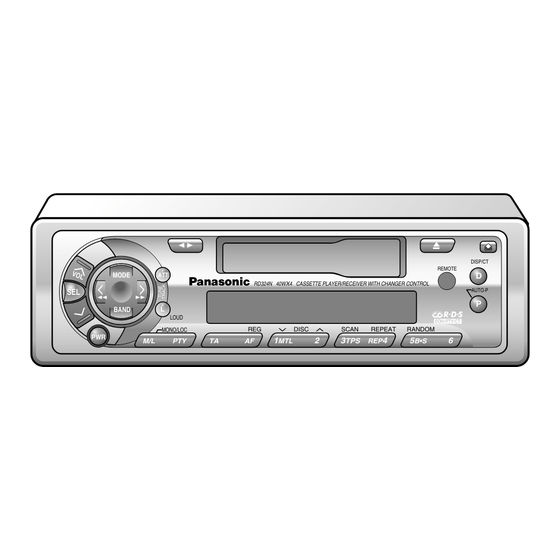

RD324N 40W X 4 CASSETTE PLAYER/RECEIVER WITH CHANGER CONTROL
SEL
BAND
L
LOUD
MONO/LOC
REG
DISC
SCAN
REPEAT
PWR
M/L
PTY
TA
AF
1
MTL
2
3
TPS
REP
¡Please read these instructions carefully before using this product and save this manual for future use.
¡Bitte lesen Sie diese Bedienungsanleitung vor der Verwendung dieses Produktes aufmerksam durch und bewahren Sie sie danach
für spätere Nachschlagzwecke sorgfältig auf.
¡Prière de lire ces instructions attentivement avant d'utiliser le produit et garder ce manuel pour l'utilisation ultérieure.
¡Leest u deze instructie alstublieft zorgvuldig door voor u dit product in gebruik neemt en bewaar deze handleiding voor later gebruik.
¡Si prega di leggere attentamente queste istruzioni prima di usare questo prodotto e di conservare questo manuale per usi futuri.
¡Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
¡Przeczytaj uwazæ n ie instrukcjeç obs¬ugi przed rozpoczeç c iem uzæ y wania urzaç d zenia i zachowaj jaç do uzæ y tku w przysz¬oóci.
DISP/CT
REMOTE
D
AUTO·P
P
RANDOM
4
5
B•S
6
Cassette Player/Receiver with Changer Control
CQ-RD324N
Operating Instructions
Bedienungsanleitung
Bedienungsanleitung
Manuel d'instructions
Manuel d'instructions
Gebruiksaanwijzing
Gebruiksaanwijzing
Manuale di istruzioni
Manuale di istruzioni
Manual de Instrucciones
Manual de Instrucciones
Instrukcja ob¬ugi
Instrukcja ob¬ugi
Advertisement
Table of Contents
Related Manuals for Panasonic CQ-RD324N
Summary of Contents for Panasonic CQ-RD324N
-
Page 1: Operating Instructions

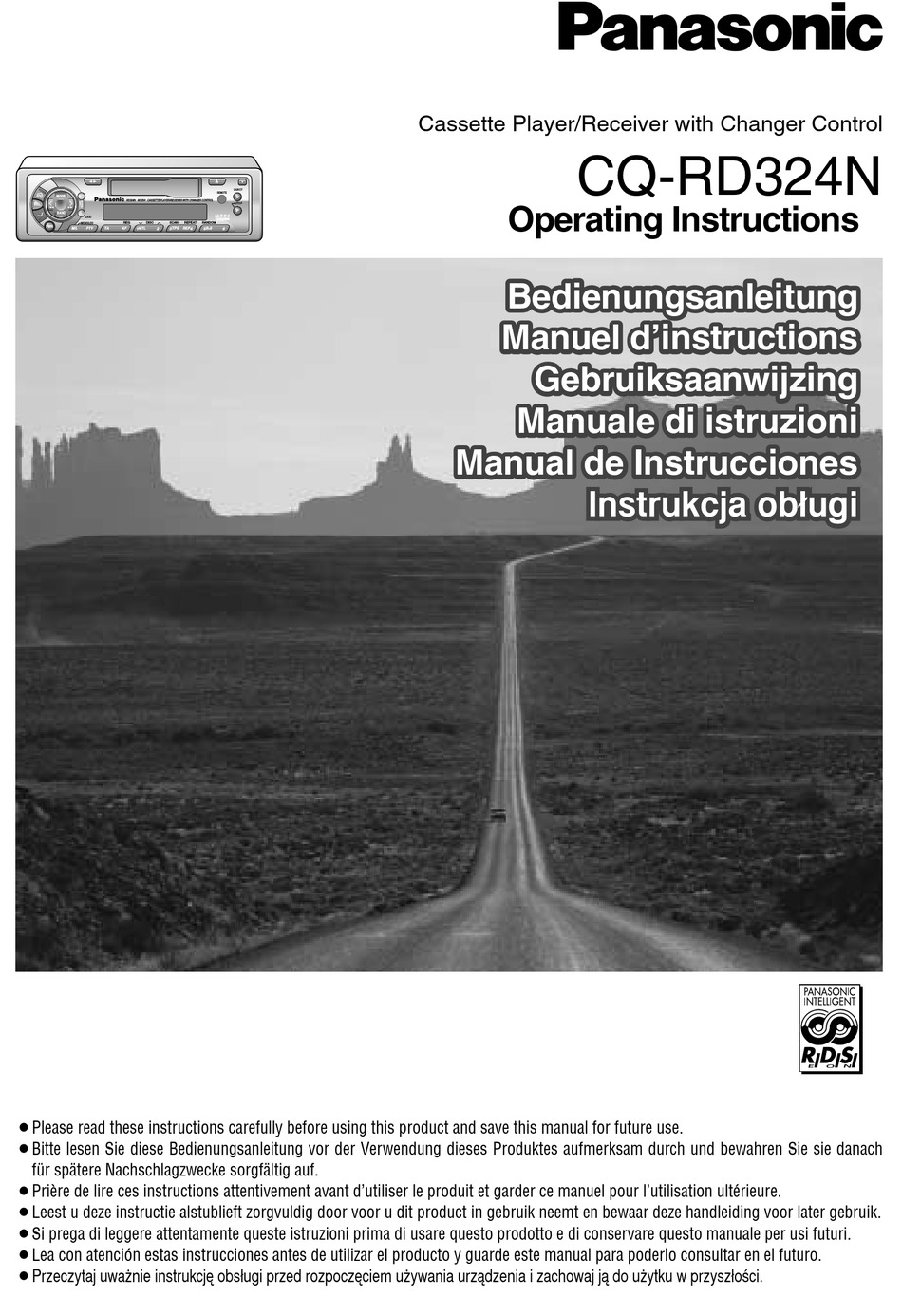

Cassette Player/Receiver with Changer Control CQ-RD324N DISP/CT REMOTE MODE RD324N 40W X 4 CASSETTE PLAYER/RECEIVER WITH CHANGER CONTROL AUTO·P Operating Instructions BAND LOUD MONO/LOC DISC SCAN REPEAT RANDOM B•S Bedienungsanleitung Bedienungsanleitung Manuel d’instructions Manuel d’instructions Gebruiksaanwijzing Gebruiksaanwijzing Manuale di istruzioni... -
Page 2: Table Of Contents
Spis treóci S: r odki ostrozæ n oóci ..........136 Przygotowanie nadajnika zdalnego sterowania ..137 Regulatory zasilania i dz; w ieç k u......138 Podstawowe funkcje radia ........140 RDS (System Danych Radiowych) ......142 Nastawianie zegara ........... 145 CQ-RD324N... - Page 3 Bezpiecznik ............. 156 Korzystanie ze zmieniacza p¬yt kompaktowych..148 Konserwacja ............ 156 Po¬aç c zenia elektryczne........150 Dane techniczne ..........157 Montazæ ............152 Zabezpieczenie przed kradziezæ a ç ......155 Pod¬aç c zenia zestawo; w g¬oónikowych....156 CQ-RD324N...
-
Page 4: Precautions
Panasonic welcomes you to their constantly growing family of electronic products owners. We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and assembled by people who are proud of the reputation their work has built for our company. -
Page 5: Remote Control Unit Preparation
Battery holder Remove and dispose of an old battery immediately. Battery Information: ¡Battery Type:Panasonic lithium battery (CR2025) ¡Battery Life: Approximately 6 months under normal use (at room temperature) Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire. Battery leakage may damage the unit. -
Page 6: Power And Sound Controls
Press [L] (LOUD) to enhance bass and treble tones Press [ATT] to decrease the volume to about 1/10 of at low or medium volume. the previous level. Press [L] (LOUD) again to cancel. Press [ATT] again to cancel. LOUD CQ-RD324N... - Page 7 Balance (Left / Right: 1 to 15) Fader (Front / Rear: 1 to 15) Note: If no operation takes place for more than 5 seconds in audio mode (2 seconds in Volume mode), the display return to Regular Mode. CQ-RD324N...
-
Page 8: Radio Basics
LOC) to change the mode. LOCAL mode on and off. Release when at the desired point. MONO OFF / LOCAL OFF LOCAL OFF MONO ON / LOCAL OFF LOCAL ON MONO ON / LOCAL ON MONO OFF / LOCAL ON CQ-RD324N... - Page 9 BAND LOUD MONO/LOC DISC SCAN REPEAT RANDOM B•S Tuning in a Preset Station Press the corresponding preset button [1] to [6] to tune in a preset station. Note: You can change the memory presetting by repeating the above procedure. CQ-RD324N...
-
Page 10: Rds (Radio Data System)
STEREO a preset station, press the same pre- set button again. PI Seek will search RDS EON TP CT (Clock Time) The frequency is changed also for an AF station with good reception. programs outside the region. CQ-RD324N... -
Page 11: Traffic Announcements
TP Seek Tuning Information Seek tunes only TP stations. Page 8) Auto TP Station Preset MONO The 6 strongest TP stations are saved in memory. Page 9) TAon RDS EON TP Tuning in a TP Preset Station Page 9) CQ-RD324N... -
Page 12: Pty Search
Press the same preset button again (or press [BAND]) to tune in the desired program type station. Press and hold one of the buttons [1] to [6]. (Example) Press preset button [1] again. (Example) Press and hold preset button [2]. STEREO RDS EON TP CQ-RD324N... -
Page 13: Clock Setting
If this Note: Hold [[] or []] to change numbers happens in a mode other than radio mode (tape mode, CD rapidly. Changer mode) or in Muting in TA mode, "ALARM" blinks on the display. CQ-RD324N... -
Page 14: Cassette Tape Player Basics
Press [4 5] to resume the tape play. Pencil Exposed end (Open end) Do not touch or pull out the tape. CQ-RD324N... -
Page 15: Blank Skip
The TPS mode may not work correctly in the following cases. This, however, does not mean that the unit is defective. ¡There is an interval less than 3 seconds or having a high level of noise or hum between programs. ¡There is particularly low-level passage during the pro- gram. CQ-RD324N... -
Page 16: Cd Changer Basics
Select the next available compact disc. DISC No. Appears on the display when the unit stops operating for some reason. Press the reset switch on the CD changer. CDC 0000 Appears on the display when there is no disc in the magazine. CQ-RD324N... -
Page 17: Track Scan
¡Press again to cancel. Track Repeat ¡Press [4] (REPEAT). The current track is repeated. ¡Press again to cancel. Track Random ¡Press [5] (RANDOM). All tracks on all discs in the magazine are played in random order. ¡Press again to cancel. CQ-RD324N... -
Page 18: Electrical Connections
How to remove power and speaker connector e How to mount power and speaker connector e ePower and Speaker Connector (Supplied) Push Keep it pressed here and pull it outward Insert it straight till it clicks. somewhat to the right. CQ-RD324N... - Page 19 • RCA Cord (R)(Red) If the fuse (rear panel) blows frequently, they may be something wrong with the unit. DIN Cord Consult your nearest Panasonic Service Center for service. Cassette Receiver CQ-RD324N To remove the Fuse CD Changer Control Connector...
-
Page 20: Installation
This product should be installed by a professional installer, if pos- sible. qMounting Collar In case of difficulty, please consult your nearest authorized Panasonic Service Center. 1. This system is to be used only in a 12-volt, DC battery system (b) Using the Rubber Cushion (Option) (car) with negative ground. - Page 21 Fix the rear of the unit to the car body by either method (a) or (b) shown at right. After installation reconnect the nega- tive (–) battery terminal. Make sure that the lock lever (C) is flush with the mounting collar (not projecting outward). Lock Lever CQ-RD324N...
- Page 22 ¡Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts. ¡If dirt or other foreign substances get on the contacts, wipe them off with clean and dry cloth. CQ-RD324N...
-
Page 23: Anti-Theft System
Panel Removal Alarm This alarm sounds to warn you not to forget to remove the DISP/CT REMOTE panel before leaving your car. MODE RD324N 40W X 4 CASSETTE PLAYER/RECEIVER WITH CHANGER CONTROL AUTO·P BAND LOUD MONO/LOC DISC SCAN REPEAT RANDOM B•S CQ-RD324N... -
Page 24: Speaker Connections
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the unit. If the fuse replacement fails, contact your nearest authorized Panasonic Service Center. Maintenance Your product is designed and manufactured to ensure the minimum of maintenance. -
Page 25: Specifications
