R-32FBSTM Operation Manual

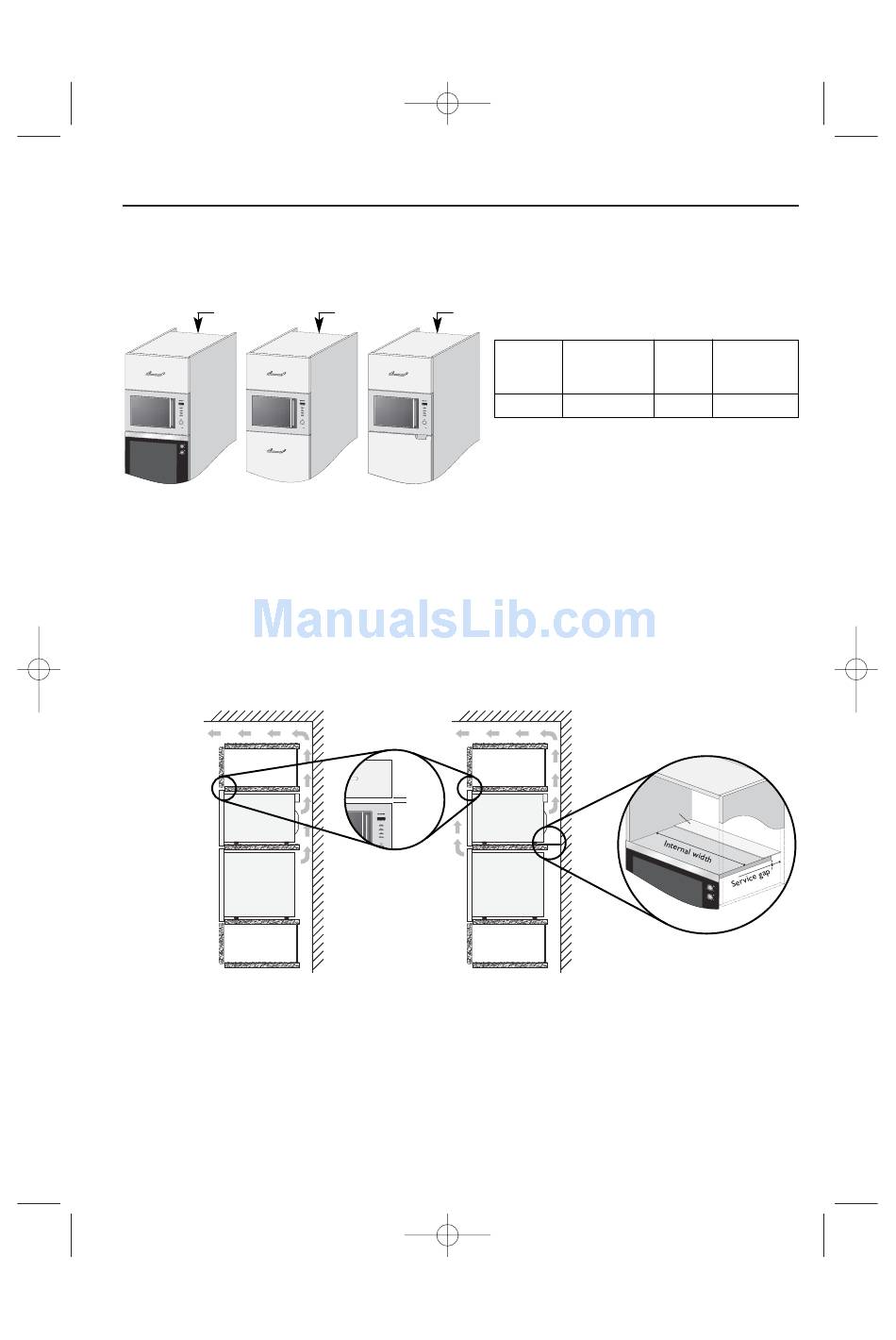

INSTALLING THE APPLIANCE
1. Remove all packaging and check carefully for any signs of damage.
Chimney
Position A
Conventional
oven
2. If fitting the microwave oven above a conventional oven (position A) or a refrigerator (position C)
then you must check the installation instructions for that appliance to determine air intake and
exhaust requirements.
A refrigerator needs a chimney to exhaust warm air from the rear. The installation should be as
shown in fig. 1.
A conventional oven exhausts warm air from the front. The installation should be as shown in fig. 2.
If installing the microwave oven above a conventional oven, the Mylar sheet that is supplied with
the microwave oven should be fitted as shown in fig. 3. This prevents warm air from the microwave
oven from being drawn in by the conventional oven.
Figure 1
Microwave
Refrigerator
3. Fit the appliance into the kitchen cupboard slowly, and without force, until the front frame of the
oven seals against the front opening of the cupboard.
4. Ensure the appliance is stable and not leaning. Ensure that a 5mm gap is kept between the
cupboard door above and the top of the frame (see fig. 4).
5. Fix the oven in position with the screws provided. The fixing points are located on the top and
bottom corners of the oven (see diagram, item 10, on page 2).
6. It is important to ensure that the installation of this product conforms to the instructions in this
operation manual and the conventional oven or refrigerator manufacturer's installation instructions.
28/06/2004
INSTALLATION
The microwave oven can be fitted in position A, B or C:
Chimney
Position B
Position C
Refrigerator
Figure 4
5 mm
oven
10:49
Page 5
Chimney
Position
Niche Size
W
D
A, B + C
560 x 550 x 380
Measurements in (mm)
NOTE: Ensure the bottom of the oven is
85 cm or more above the floor.
Figure 2
Microwave
oven
Conventional
oven
5
Chimney
Gap Between
H
(min)
Cupboard &
Ceiling
45
100
Figure 3
Mylar sheet
