SUBMERSIBLE TRAILER LIGHT KIT
TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS.
instruction sheet or any artwork contained herein may be reproduced in any shape or form
You will need this instruction sheet for the safety warnings and precautions, assembly instructions, parts
list, and assembly diagram. Keep your invoice with this instruction sheet. Write the invoice number on the
front of this instruction sheet. Keep this instruction sheet and invoice in a safe and dry place for future
reference.
When unpacking, check to make sure all the parts shown on the Assembly Diagram are included. If any
parts are missing or broken, please call Harbor Freight Tools at the number above as soon as possible.
1.
Use eye protection. Make sure to wear ANSI approved safety impact eye goggles when installing this
Light Kit.
2.
Prior to installing this product, make sure to read and understand all instructions and safety precau-
tions as outlined in the (trailer, camper, etc.) manufacturer's manual onto which the Light Kit will be
installed.
Model 94137
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
©
Copyright 2006 by Harbor Freight Tools
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
PRODUCT SPECIFICATIONS
Item
Power Source
12 Volt DC / Negative Ground
Design Type
Submersible Design

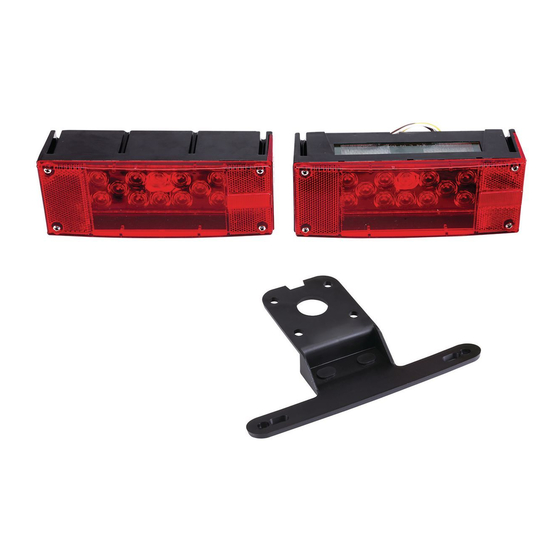

Features
2 Combination, Class A, Stop-Tail-Turn Lights
License Plate Bracket
25 Ft., Split Y-Style Harness
4 Ft., Color Coded Trunk Harness
Light Type
18 LED's Per Light (not serviceable)
DOT Approved
Yes
Weight
3 Pounds
SAVE THIS INSTRUCTION SHEET
SAFETY WARNINGS AND PRECAUTIONS
®
. All rights reserved. No portion of this
Description
UNPACKING
®
Advertisement
Table of Contents
Related Manuals for HAUL MASTER 94137
Summary of Contents for HAUL MASTER 94137
- Page 1 When unpacking, check to make sure all the parts shown on the Assembly Diagram are included. If any parts are missing or broken, please call Harbor Freight Tools at the number above as soon as possible. SAFETY WARNINGS AND PRECAUTIONS Use eye protection.
- Page 2 NOTE: If the towing vehicle has rear turn signals separated from its stop lights, you will need to install additional hardware. COLOR CODED TRUNK HARNESS D A B SPLIT Y-STYLE HARNESS SKU 94137 For technical questions, please call 1-800-444-3353 ASSEMBLY INSTRUCTIONS A. YELLOW WIRE (L.H. SIDE STOP/TURN SIGNAL) B. BROWN WIRE (TAIL LAMP, MARKER, CLEARANCE & LICENSE) C.
- Page 3 CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISKS AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. SKU 94137 For technical questions, please call 1-800-444-3353 5: MOUNTING HARDWARE NOT SHOWN.
