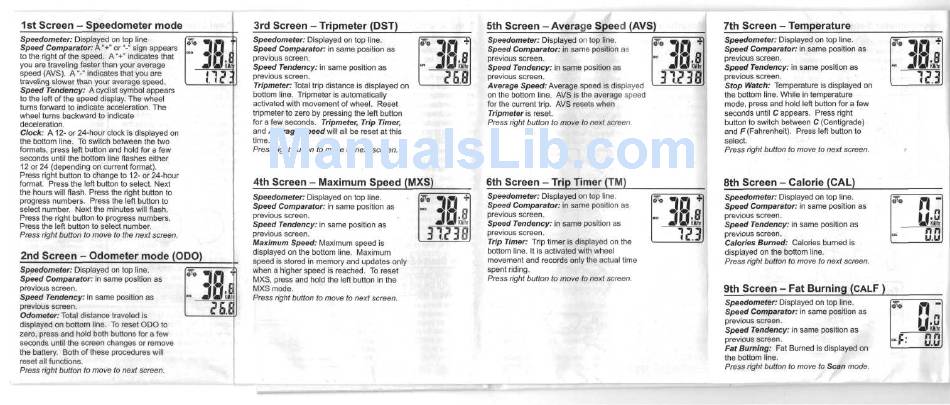

1st Screen - Speedometer mode
Speedometer: Displayed on top line
Speed Comparator: A"+" or"-" sign appears
to the right of the speed. A"+" indicates that
you are traveling faster than your average
speed (AVS). A"-" indicates that you are
traveling slower than your average speed.
Speed Tendency: A cyclist symbol appears
to the left of the speed display. The wheel
turns forward to indicate acceleration. The
wheel turns backward to indicate
deceleration.
Clock: A12- or 24-hour clock is displayed on
the bottom line. To switch between the two
formats, press left button and hold for a few
seconds until the bottom line flashes either
12 or 24 (depending on current format).
Press right button to change to 12- or 24-hour
format. Press the left button to select. Next
the hours will flash. Press the right button to
progress numbers. Press the left button to
select number. Next the minutes will flash.
Press the right button to progress numbers.
Press the left button to select number.
Press right button to move to the next screen.
2nd Screen - Odometer mode (ODO)
Speedometer: Displayed on top line.
Speed Comparator: in same position as
previous screen.
Speed Tendency: in same position as
previous screen.
Odometer; Total distance traveled is
displayed on bottom line. To reset ODO to
zero, press and hold both buttons for a few
seconds until the screen changes or remove
the battery. Both of these procedures will
reset all functions.
Press right button to move to next screen.
3rd Screen - Tripmeter (DST)
Speedometer: Displayed on top line.
Speed Comparator: in same position as
previous screen.
Speed Tendency: in same position as
previous screen.
Tripmeter: Total trip distance is displayed on
bottom line. Tripmeter is automatically
activated with movement of wheel. Reset
tripmeter to zero by pressing the left button
for a few seconds. Tripmeter, Trip Timer,
and Average Speed will all be reset at this
time.
Press right button to move to next screen.
4th Screen - Maximum Speed (MXS)
Speedometer: Displayed on top line.
Speed Comparator: in same position as
previous screen.
Speed Tendency: in same position as
previous screen.
Maximum Speed: Maximum speed is
displayed on the bottom line. Maximum
speed is stored in memory and updates only
when a higher speed is reached. To reset
MXS, press and hold the left button in the
MXS mode.
Press right button to move to next screen.
5th Screen -Average Speed (AVS)
Speedometer: Displayed on top line.
Speed Comparator: in same position as
previous screen.
Speed Tendency: in same position as
previous screen.
Average Speed: Average speed is displayed
on the bottom line. AVS is the average speed
for the current trip. AVS resets when
Tripmeter is reset.
Press right button to move to next screen.
6th Screen - Trip Timer (TM)
Speedometer: Displayed on top line.
Speed Comparator: in same position as
previous screen.
Speed Tendency: in same position as
previous screen.
Trip Timer: Trip timer is displayed on the
bottom line. It is activated with wheel
movement and records only the actual time
spent riding.
Press right button to move to next screen.
7th Screen - Temperature
Speedometer: Displayed on top line.
Speed Comparator: in same position as
previous screen.
Speed Tendency: in same position as
previous screen.
Stop Watch: Temperature is displayed on
the bottom line. While in temperature
mode, press and hold left button for a few
seconds until C appears. Press right
button to switch between C (Centigrade)
and F (Fahrenheit). Press left button to
select.
Press right button to move to next screen.
8th Screen - Calorie (CAL)
Speedometer: Displayed on top line.
Speed Comparator: in same position as
previous screen.
Speed Tendency: in same position as
previous screen.
Calories Burned: Calories burned is
displayed on the bottom line.
Press right button to move to next screen.
9th Screen - Fat Burning (CALF )
Speedometer: Displayed on top line.
Speed Comparator: in same position as
previous screen.
Speed Tendency: in same position as
previous screen.
Fat Burning: Fat Burned is displayed on
the bottom line.
Press right button to move to Scan mode.
