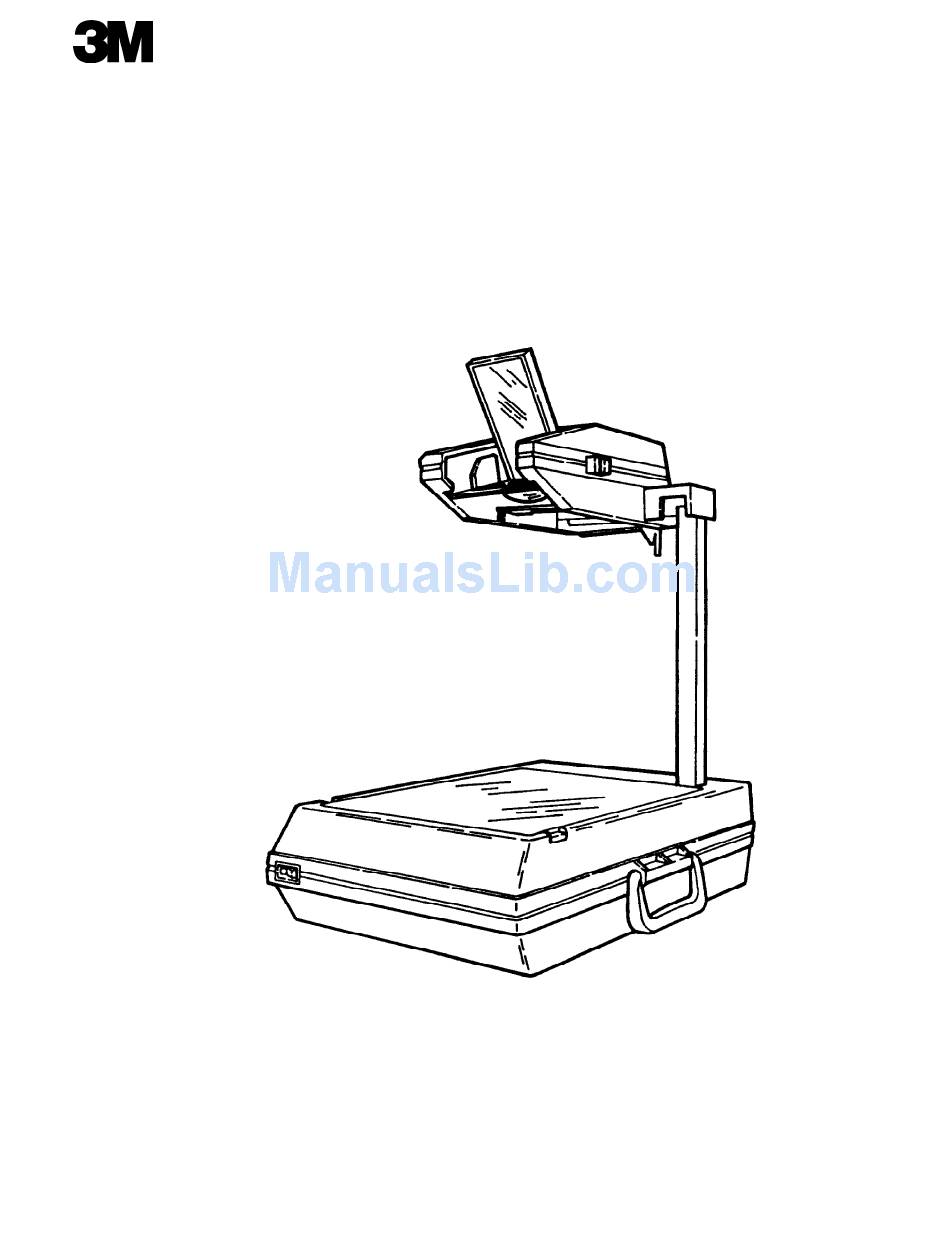

- Page 1 2000 Overhead Projector Illustrated Parts Breakdown 3M Visual Systems Division Printed in U.S.A. Copyright E 2000, 3M IPC. All Rights Reserved 6801 River Place Boulevard 78-6970-6942-1 Rev. D Austin, Texas 78726-9000...
- Page 2 November 1995 All pages March 1997 All pages Globally introduce kit formatting on all pages. M2000 Hardware Repair Kit (78-8062-1150-0) appears in all illustrations. 2000 Cover, footers, page 7--17 Changed part number on page 7--17, item 1. E 3M IPC 2000...
- Page 3 Illustrated Parts Breakdown 2000 Overhead Projector This page intentionally left blank E 3M IPC 2000...
-
Page 4: Table Of Contents
2000 Series Overhead Projectors IPB - - Table of Contents Introduction .............. -
Page 5: Introduction
2. Model Number/Alpha Code: The series number of All components available on a replacement basis are the projector followed by a three or four character listed with their 3M identification number. The parts alpha code identifier. The Alpha Code indicates identification list opposite each illustration provides the design level, specific product characteristics, the description adequate to identify components. - Page 6 78-8064-1536-6 ..POWER CORD, 3M Logo, 2 Blade With Ground, 10’ ....78-8062-1378-7 . . .
-
Page 7: Section 0 Overview
(See Sections 8, 9 and 10 ) Top Shroud Assembly (See Sections 6 and 7 ) Post Pivot Assembly (See Sections 11 and 12 ) Stage Cover Assembly (See Section 14 ) Base and Base Top Assembly (See Section 2 ) E 3M IPC 2000... -
Page 8: Section 1 Mirror Housing Assembly Spare Part Kit
......... . . E 3M IPC 2000... -
Page 9: Section 2 Base And Base Top Assembly Spare Part Kit
I llus tr a te d Pa r ts B re a kdo w n 3M Overhead Projector 2000 Section 2 BASE AND BASE TOP ASSEMBLY SPARE PART KIT 9, 10 NOTE: Screws, Nuts, Bolts, Clips, and etc. are contained in Hardware Kit 78-8062-1150-0. -
Page 10: Section 3 Lamp Assembly- -Evw Spare Part Kit
..........E 3M IPC 2000... -
Page 11: Section 4 Lamp Module Assembly- -Fsy Spare Part Kit
........... E 3M IPC 2000... -
Page 12: Section 5 Lamp Module Assembly- -Fsx Spare Part Kit
........... E 3M IPC 2000... -
Page 13: Section 6 Top Shroud Assembly- -Evw Spare Part Kit
............. . E 3M IPC 2000... -
Page 14: Section 7 Top Shroud Assembly- -Fsx/Fsy Spare Part Kit
........E 3M IPC 2000... -
Page 15: Section 8 Projection Lens Assembly- -Singlet Spare Part Kit
........... . E 3M IPC 2000... -
Page 16: Section 9 Projection Lens Assembly- -Triplet Spare Part Kit
..78-8057-4130-9 . . . PROJECTION LENS ASSEMBLY- -Triplet Spare Part Kit ..... . E 3M IPC 2000... -
Page 17: Section 10 Focus Mechanism Assembly Spare Part Kit
..........E 3M IPC 2000... -
Page 18: Section 11 Post And Pivot Assembly- -Domestic Spare Part Kit
78-8062-1378-7 . . . POWER CORD, 3M Logo, 2 Blade With Ground, 10’ ........ -
Page 19: Section 12 Post And Pivot Assembly- -International Spare Part Kit
Illustrated Parts Breakdown 3MtOverhead Projector 2000 Section 12 POST AND PIVOT ASSEMBLY- -INTERNATIONAL SPARE PART KIT To Parts List Right Side View Section 15 NOTE: Screws, Nuts, Bolts, Clips, and etc. are contained in Hardware Kit 78-8062-1150-0. E 3M IPC 2000... - Page 20 ..........E 3M IPC 2000...
-
Page 21: Section 13 Resistor Kit
..78-8011-1198-6 . . . RESISTOR, 1.2 OHM, .187 TAB (AAB, AAD, AADM, AAM) ....E 3M IPC 2000... -
Page 22: Section 14 Stage Cover Assembly- -Domestic Spare Part Kit
..78-8065-8588-7 . . . FRESNEL LENS, Reflective, A4, 187.1mm, FL, Japan ......E 3M IPC 2000... -
Page 23: Section 15 Wire Jumpers
Illustrated Parts Breakdown 3MtOverhead Projector 2000 Section 15 WIRE JUMPERS To Parts List EVW -- Japan To Appendix FSX/FSY E 3M IPC 2000... - Page 24 ..........E 3M IPC 2000...
- Page 25 Illustrated Parts Breakdown 3MtOverhead Projector 2000 This page intentionally left blank E 3M IPC 2000...
