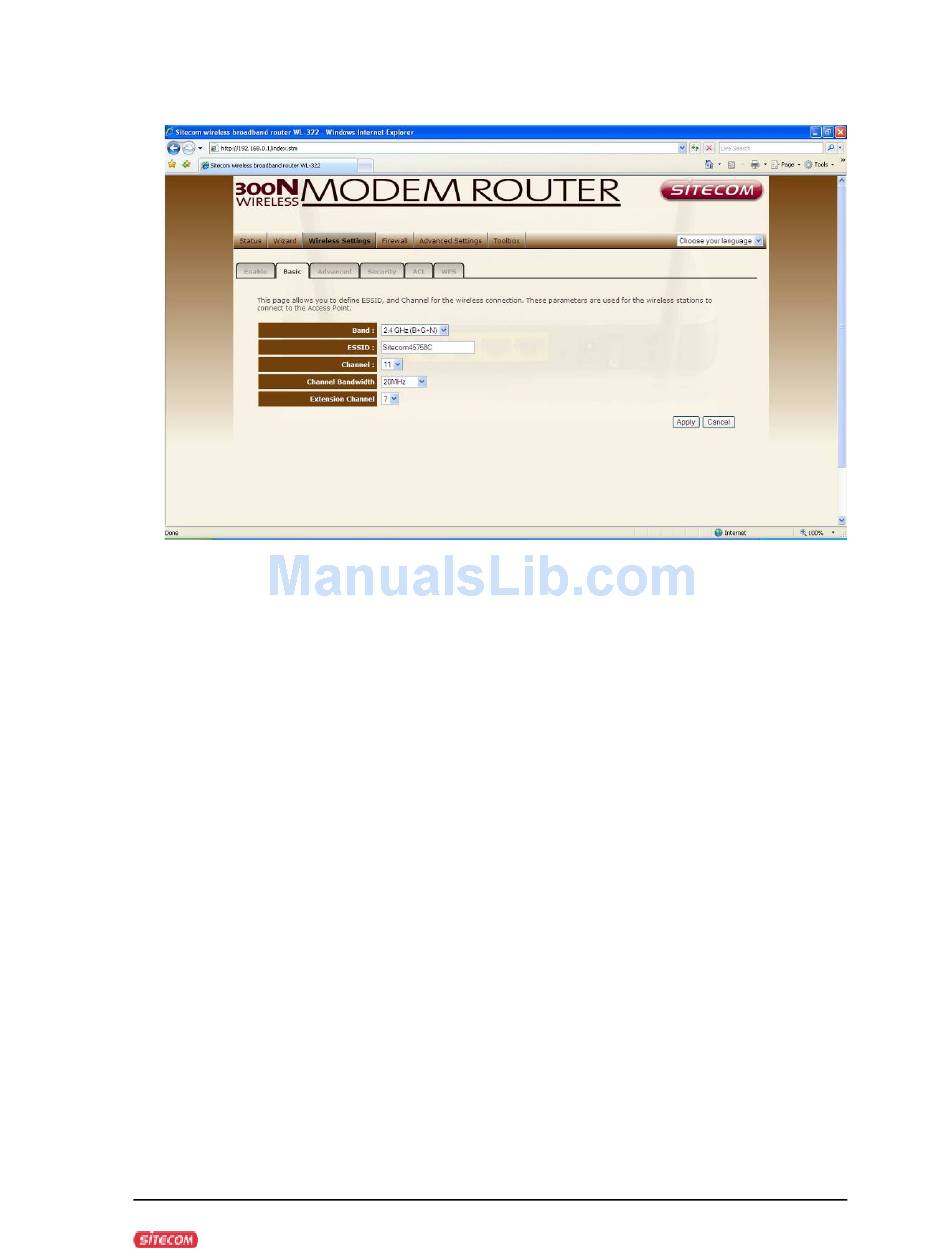

Basic Settings

Band Allows you to set the AP fixed at 802.11b or 802.11g mode. You can
also select B+G+N mode to allow 802.11b, 802.11g and 802.11n clients at
the same time.
ESSID This is the name of the wireless signal which is broadcasted. All the
devices in the same wireless LAN should have the same ESSID.
Channel Number The channel used by the wireless LAN. All devices in the
same wireless LAN should use the same channel.
Channel bandwidth 20/40 MHz Allows automatic detection of the operation
bandwidth between 20 and 40 MHz.
Extension channel This is the optional channel for use. Setting the
Bandwidth to 20/40 MHz allows you to use this extension channel as the
secondary channel for doubling the bandwidth of your wireless network.
