Wireless Acccess Point Router

3: Configuration

3.1 Configuring the Wireless Access Point Router

Once you've done with the hardware installation, you may start to configure your
system. Note that this high-speed Wireless Router has an internal integrated-circuit
chip that programs all the administrative utility. The utility can be accessed by any PC
on the network at http://192.168.1.1 .
Typing http://192.168.1.1 into the PC's browser address windows. (See Figure 3-1)
Then, you will receive a pop-up password request page. (See Figure 3-2) Type
"admin" into the Password field and leave the User Name field empty.
After you access the Utility, you can find detailed instructions and explanations by
clicking each page's Help button. To apply any settings you've altered on any page,
click the Apply button, and then click Continue. To clear any values you've entered on
any page, click Cancel.

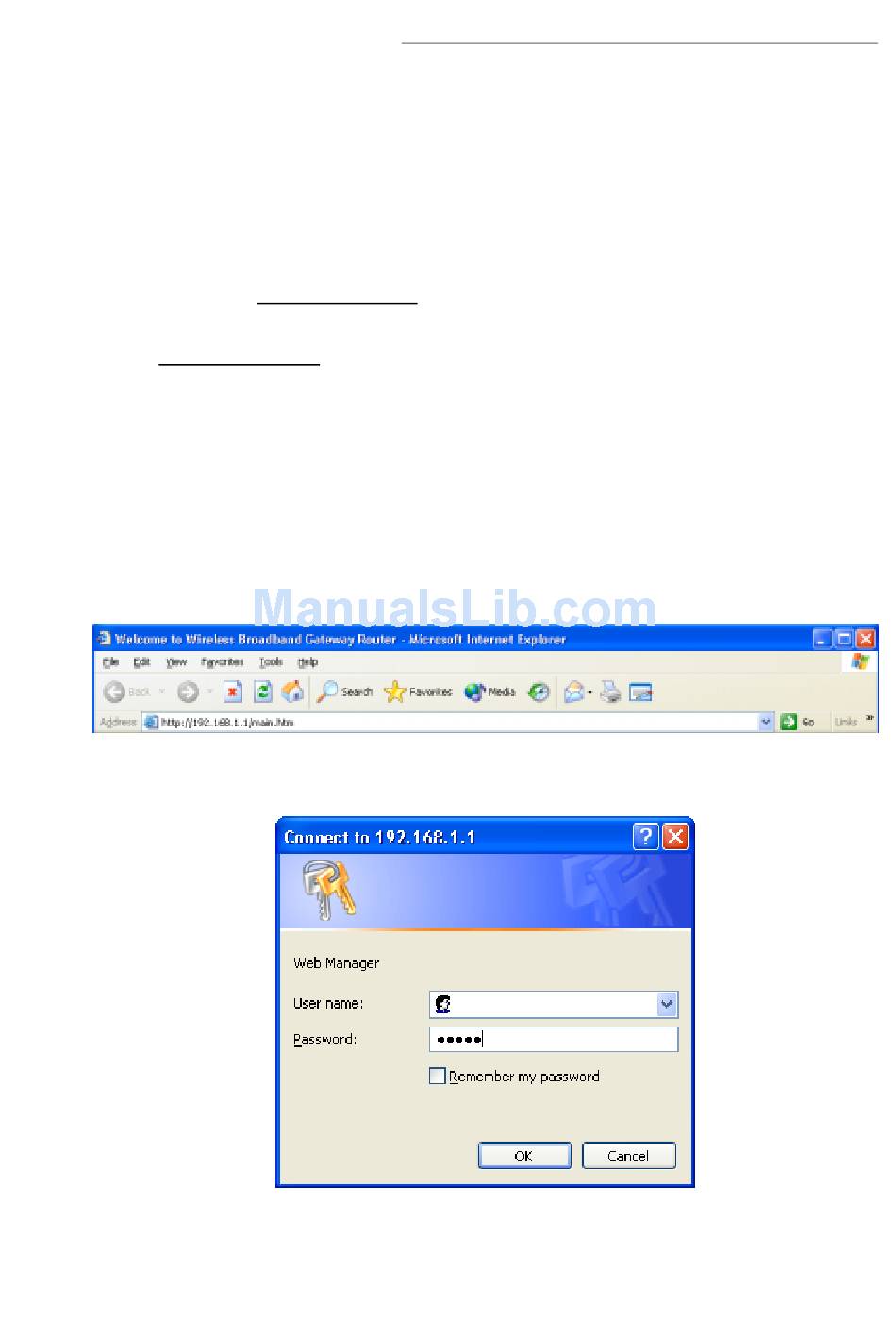

Figure 3-1 Http://192.168.1.1
Figure 3-2 A Password Request Page
13
