Central Pneumatic Contractor 93197 Assembly And Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Central Pneumatic Manuals
  4. Power Tool
  5. Contractor 93197
  6. Assembly and operating instructions manual

Central Pneumatic Contractor 93197 Assembly And Operating Instructions Manual

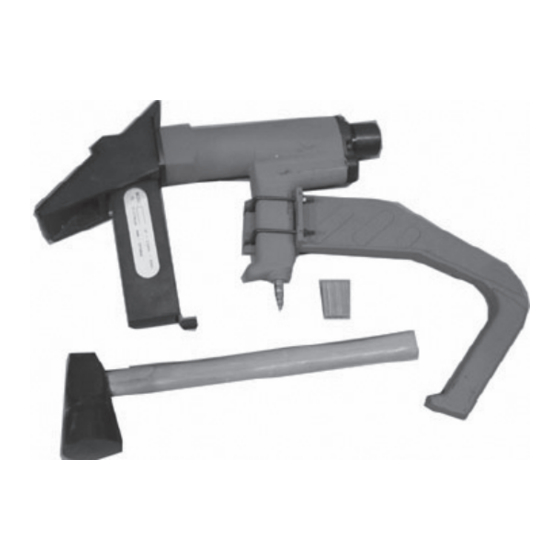

Contractor series floor stapler with hammer
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

FLOOR STAPLER
WITH HAMMER
ASSEMBLY and OPERATING
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
©
Copyright
2005 by Harbor Freight Tools
this manual or any artwork contained herein may be reproduced in any shape or
form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
Model 93197
INSTRUCTIONS
®
®
. All rights reserved. No portion of
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Contractor 93197 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Central Pneumatic Contractor 93197

Summary of Contents for Central Pneumatic Contractor 93197

  • Page 1 Copyright 2005 by Harbor Freight Tools this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. For technical questions and replacement parts, please call 1-800-444-3353 ®...
  • Page 2 Air Consumption Fastener Size Range Note: SKU 90429 - 2”, 15 Gauge Staples are available from Harbor Freight Tools. Note: This Floor Stapler is designed for use on wood floors. You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram.
  • Page 3 Use of any other parts will void the warranty. Only use accessories intended for use with this tool. Approved accessories are available from Harbor Freight Tools. Do not operate tool if under the influence of alcohol or drugs. Read warning labels if taking prescription medicine to determine if your judgement or reflexes are impaired while taking drugs.

  • Page 4: Operation

    (California Health & Safety Code § 25249.5, et seq. ) When unpacking, check to make sure the parts listed on page 8 are included. If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover of this manual as soon as possible 1/4”-18 NPT...
  • Page 5 Pin (38) is pressed. While holding the Sleeve (36a) firmly, use a small screwdriver to press in the Locking Pin (38) along the edge of the Magazine Cover. See FIGURE 2. Locking Pin (38) Sleeve (36a) Magazine Cover (33a) SKU 93197 For technical questions, please call 1-800-444-3353. Operation (continued) FIGURE 1 Clamp Screws (44)

  • Page 6: Personal Injury

    Air leaking in nose Lack of Power, slow to cycle. Intermittent feeding or no fastener coming out Jammed Staple SKU 93197 For technical questions, please call 1-800-444-3353. Operation (continued) Troubleshooting CAUSE SOLUTION 1. Loose Nose Screws 1. Tighten and recheck 2.
  • Page 7 TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. SKU 93197 For technical questions, please call 1-800-444-3353. Clearing Jams...

  • Page 8: Parts List

    NOTE: #27a - Spacer for 1/2” Flooring (Included but not installed) NOTE: Some parts are listed and shown for illustration purposes only and are not available individually as replacement parts. SKU 93197 For technical questions, please call 1-800-444-3353. Parts List l l o "...
  • Page 9 Assembly Diagram #27 - Installed: (Spacer for 25/32” Flooring) #27a - Spacer is included with tool, not installed (Spacer for 1/2” Flooring) SKU 93197 For technical questions, please call 1-800-444-3353. Page 9...
