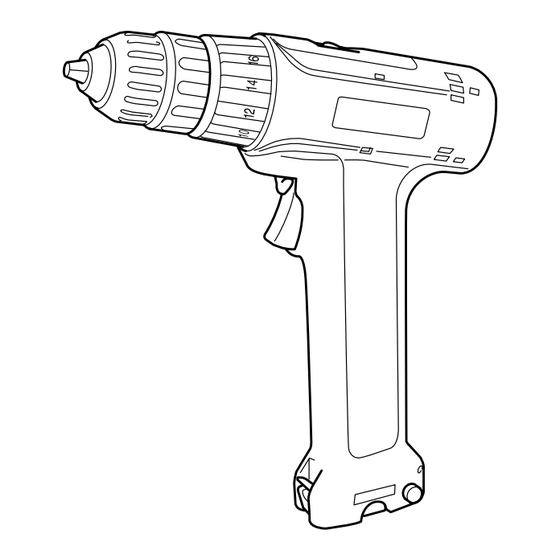

- Page 1 Cordless Driver Drill Equipped with Electric Brake MODEL 6096D 001717 I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Specifications
SPECIFICATIONS Model 6096D Steel 10 mm (3/8”) Capacities Wood 18 mm (11/16”) Wood screw 5.5 x 55 mm (7/32” x 2-1/8”) High 0 - 1100/min. No load speed (RPM) 0 - 350/min. Overall length 210 mm (8-1/4”) Net weight 1.3 kg (2.9 lbs) - Page 3 SAVE THESE INSTRUCTIONS Work Area tery pack into a tool with the switch on invites accidents. 1. Keep your work area clean and well lit. 9. Remove adjusting keys or wrenches Cluttered benches and dark areas invite acci- before turning the tool on. A wrench or a dents.
-
Page 4: Specific Safety Rules
small metal objects that can make a con- model. Accessories that may be suitable for nection from one terminal to another. one tool may create a risk of injury when Shorting the battery terminals together may used on another tool. cause sparks, burns, or a fire. - Page 5 3. CAUTION - To reduce risk of injury, charge wise subjected to damage or stress. only MAKITA rechargeable batteries 8. An extension cord should not be used marked on the charger label. Other types unless absolutely necessary.
- Page 6 b. That extension cord is properly wired c. That wire size is at least as large as and in good electrical condition; the one specified in the table below. Table 1: RECOMMENDED MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS Length of Cord (Feet) AWG Size of Cord 9.
- Page 7 7. Do not incinerate the Battery Cartridge 8. Be careful not to drop, shake or strike bat- even if it is severely damaged or is com- tery. pletely worn out. The battery cartridge can 9. Do not charge inside a box or container of explode in a fire.
-
Page 8: Functional Description
FUNCTIONAL CAUTION: DESCRIPTION • Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge 001718 • Always switch off the tool before insertion or removal of the battery cartridge. - Page 9 6. After charging, unplug the charger from the power source. NOTE: • The battery charger is for charging Makita battery cartridge. Never use it for other purposes or for other manufacturer’s batteries. • When you charge a new battery cartridge or a battery cartridge which has not been used for a long period of time, it may not accept a full charge.
-
Page 10: Switch Action
• If you charge a battery cartridge from a just operated tool or a battery cartridge which has been left in a location exposed to direct sunlight or heat for a long time, the charging light may flash in red color. If this occurs, wait for a while. -
Page 11: Reversing Switch Action
Reversing switch action 001721 CAUTION: • Always check the direction of rotation before operation. • Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool. This tool has a reversing switch to change the direction of rotation. -
Page 12: Installing Or Removing Driver Bit Or Drill Bit
NOTE: • The adjusting ring does not lock when the pointer is positioned only halfway between the graduations. • Do not operate the tool with the adjusting ring set between the number 16 and the marking. The tool may be damaged. ASSEMBLY CAUTION: •... -
Page 13: Screwdriving Operation
OPERATION Screwdriving operation 001725 Place the point of the driver bit in the screw head and apply pressure to the tool. Start the tool slowly and then increase the speed gradually. Release the switch trigger as soon as the clutch cuts in. NOTE: •... -
Page 14: Maintenance
Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. -
Page 15: Recycling The Battery
EN0001-1 Recycling the Battery The only way to dispose of a Makita battery is to recycle it. The law prohibits any other method of disposal. To recycle the battery: 1. Remove the battery from the tool. Ni-Cd 2. a) Take the battery to your nearest Makita Factory Ser-... - Page 16 Memo...
- Page 17 First-Class Postage Required Post Office will not deliver without proper postage. Makita U.S.A., Inc. 14930 Northam Street La Mirada, CA 90638-5753 Fold...
- Page 18 Design Repair Service Industrial Maintenance Features Durability Home Maintenance Size Power Hobby Price Other ( Other ( Makita Brand 5. Any comments: DATE PURCHASED MODEL NO. MONTH YEAR SERIAL NO. STATUS INTL. LAST NAME / COMPANY NAME Married Single STREET ADRESS...
-
Page 19: Factory Service Centers
Date Purchased When you need service: Send complete tool (prepaid) to one Dealer’s Name & Address of the Makita Factory Service Centers listed, or to an Authorized Makita Service Center. Be sure to attach a letter to the outside of Model No. -
Page 20: Warranty Policy
MAKITA LIMITED ONE YEAR WARRANTY Warranty Policy Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase.
