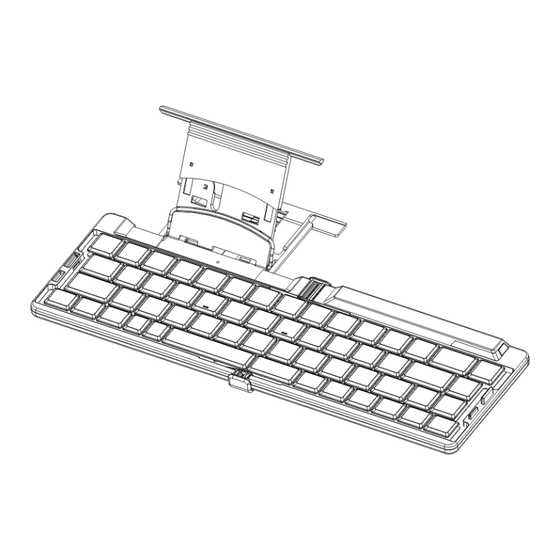

User Guide for the Wireless Keyboard
(SU-8W)
9233612
Issue 1

   Also See for Nokia SU-8W

   Related Manuals for Nokia SU-8W

   Summary of Contents for Nokia SU-8W

  • Page 1

    User Guide for the Wireless Keyboard (SU-8W) 9233612 Issue 1...

  • Page 2

    DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product SU-8W is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/ declaration_of_conformity/.

  • Page 3

    The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you. In some countries there may be restrictions in using Bluetooth devices. Check with your local authorities. Unauthorized changes or modifications to this device may void the user's authority to operate the equipment.

  • Page 4: Table Of Contents

    Placing your phone on the cradle......................15 Typing text..............................16 Using the keyboard with several paired compatible phones ............18 Resetting the keyboard..........................18 4. Battery information..................19 Using the batteries............................19 Care and maintenance ..................21 FCC Notice—Nokia Wireless Keyboard SU-8W ..........22 © Copyright 2004 Nokia. All rights reserved.

  • Page 5: Introduction, Bluetooth Wireless Technology

    1. Introduction The foldable Nokia Wireless Keyboard enables you to enter text in comfort. Use the full QWERTY keyboard with a Bluetooth connection to get the best out of the messaging applications in your compatible mobile phone. Write text messages and emails, or edit your calendar entries;...

  • Page 6

    The Wireless Keyboard SU-8W is compliant with and adopts the Bluetooth Specification 1.1. However, interoperability between the keyboard and other Bluetooth-enabled products is not guaranteed because it depends on compatibility. For compatibility between the keyboard and other Bluetooth- enabled products, contact your dealer.

  • Page 7: Getting Started, Overview

    ■ Overview The keyboard contains the following parts, as shown in Figure 1: Release button (1) opens the keyboard. Retractable cradle (2) Cover of the battery compartment (3) © Copyright 2004 Nokia. All rights reserved.

  • Page 8

    Space bar (15) inserts a space. Selection keys (16) have the same functions as the selection keys on your compatible phone. Arrow keys (17) have the same functions as the scroll keys on your compatible phone. © Copyright 2004 Nokia. All rights reserved.

  • Page 9: Installing And Using The Batteries

    • Place your phone in the cradle, if you wish. See page 15. ■ Installing and using the batteries The Wireless Keyboard SU-8W is intended for use with standard AAA batteries. Open the battery compartment of the keyboard by sliding the compartment cover from the keyboard.

  • Page 10: Installing The Memory Card In A Compatible Phone

    Figure 2. To insert the memory card, see the instructions in the user guide of your compatible phone. © Copyright 2004 Nokia. All rights reserved.

  • Page 11: Opening The Keyboard, Switching The Keyboard On Or Off

    ■ Opening the keyboard To open the keyboard, press the release button towards the text Nokia (Figure 3), and fold out the keyboard. ■ Switching the keyboard on or off To switch on the keyboard, press and hold the power key for about 2 seconds. The green indicator is shown for 1 second.

  • Page 12

    Fn key first. 10.If you are asked for a keyboard layout, select it from a list on your phone. 11.Wait until the name of the keyboard (SU-8W) is shown, its status changes to Connected, and the green indicator of your keyboard blinks slowly.

  • Page 13

    The keyboard is also disconnected if its batteries become discharged. Note that you do not need to delete the pairing with the keyboard to disconnect it. When you reconnect a paired keyboard, you are not asked for its passcode. © Copyright 2004 Nokia. All rights reserved.

  • Page 14: Troubleshooting

    • Make sure that the Bluetooth feature is activated on your phone. • Make sure that the Wireless Keyboard application is running on the phone. • Make sure that no other device is in a Bluetooth connection with your phone. © Copyright 2004 Nokia. All rights reserved.

  • Page 15: Using The Keyboard, Placing Your Phone On The Cradle

    ■ Placing your phone on the cradle The keyboard is provided with a retractable cradle on which you can keep your compatible phone while using the keyboard. To slide the cradle out from the keyboard, see Figure 4. © Copyright 2004 Nokia. All rights reserved.

  • Page 16: Typing Text

    To type an upper case letter or a special character printed in the upper part of a key, press and hold the shift key, and press a letter or character key. To type several upper case letters, press the Caps lock key, then the desired letter keys. © Copyright 2004 Nokia. All rights reserved.

  • Page 17

    Opening a list of special characters To open a list of special characters, press the AltGr key. The list is shown after you release the key. Select a character from the list. © Copyright 2004 Nokia. All rights reserved.

  • Page 18: Using The Keyboard With Several Paired Compatible Phones, Resetting The Keyboard

    You can reset the keyboard to its original settings (for example, to delete all the pairing information). To reset the keyboard, press and hold the key for 10 seconds. After the keyboard has been reset, the and green indicators alternate for 3 seconds. © Copyright 2004 Nokia. All rights reserved.

  • Page 19: Battery Information, Using The Batteries

    Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Battery performance is particularly limited in temperatures well below freezing. © Copyright 2004 Nokia. All rights reserved.

  • Page 20

    Do not dispose of batteries in a fire! Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste. © Copyright 2004 Nokia. All rights reserved.

  • Page 21: Care And Maintenance

    • Do not paint the device. Paint can clog the moving parts and prevent proper operation. All of the above suggestions apply equally to your device or any enhancement. If the device is not working properly, take it to the nearest authorized service facility for service. © Copyright 2004 Nokia. All rights reserved.

  • Page 22: Fcc Notice—nokia Wireless Keyboard Su-8w

    Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. © Copyright 2004 Nokia. All rights reserved.
