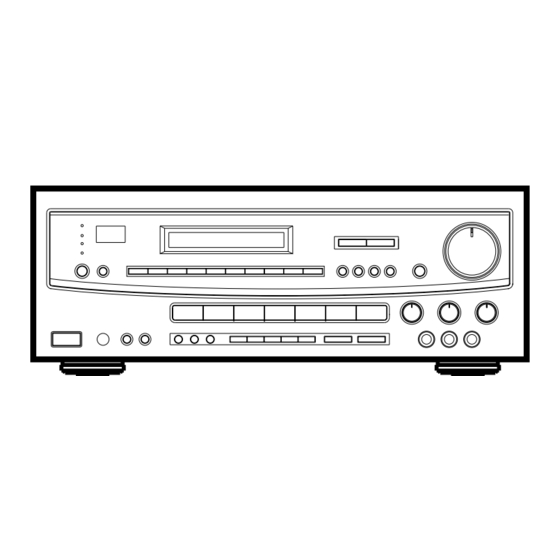

PLR-85
400 WATT HOME THEATER RECEIVER
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
OWNER'S MANUAL
Advertisement
Table of Contents
Related Manuals for TECHWOOD PLR-85
Summary of Contents for TECHWOOD PLR-85
- Page 1 PLR-85 400 WATT HOME THEATER RECEIVER OWNER’S MANUAL CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT CAUTION REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. RISK OF ELECTRIC SHOCK DO NOT OPEN REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: “Note to CATV system installer: • This reminder is provided to call the CATV system installer’s attention Read all of these instructions. • to Section 820-40 of the NEC which provides guidelines for proper Save these instructions for later use. •... -
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ............................2 PRECAUTIONS ....................................4 Read This Before Operating ................................4 CONNECTIONS ....................................5 System Connections ..................................5 Antenna Connections...................................6 FM Antenna .....................................6 AM (MW) Antenna ...................................6 Speaker Connections...................................7 Power Cord ....................................7 AC OUTLETS ....................................7 VIDEO 3 INPUT Jacks.................................7 CONTROLS AND INDICATORS ..............................8 Front Panel ....................................8 Display .......................................10 REMOTE CONTROL UNIT ................................11... -
Page 4: Precautions
PRECAUTIONS For U.S.A Read This Before Operating TO THE USER Choose the installation location of your unit carefully. This equipment has been tested found Avoid placing it in direct sunlight or close to a source of comply with the limits for a A/V receiver, pursuant to heat. -
Page 5: Connections
CONNECTIONS : Audio signal System Connections : Video signal CAUTION : Do not plug the power cord of any component into AC outlets and do not turn their POWER switches on until all connections have been performed. Refer to “Antenna Connections” on pages 6~7. TV Monitor Turntable Tape Deck... -
Page 6: Antenna Connections
Antenna Connections AM (MW) Antenna AM Indoor Loop Antenna FM Antenna A high-performance AM loop antenna provided with the FM Indoor Antenna receiver is sufficient for good reception in most areas. In an area with strong FM signals, the “T“-type FM antenna Connect the loop antenna’s wires to the AM antenna ter- provided is sufficient. -
Page 7: Speaker Connections
Speaker Connections Power Cord Caution : Be sure to connect the power cord to an AC outlet which To avoid damaging the speakers, be sure the power is off supplies the correct 120 voltage. before connecting the speakers. Connect each speaker to the corresponding speaker AC OUTLETS terminal. -
Page 8: Controls And Indicators
CONTROLS AND INDICATORS Front Panel 1. STANDBY/ ON button and Indicator 10. BALANCE control When in standby mode, a red indicator will light up. Use to balance volume between the left and right main When you press the POWER button, power will be turned speakers. - Page 9 21. Level buttons 14. SLEEP button Use to adjust the volume of the center and surround 15. Preset buttons (0 -9) speakers. These buttons are used to store and recall FM/AM sta- tions in memory (See page 17). 22. Audio mode buttons Use these buttons to select Stereo or Surround mode 16.
-
Page 10: Display
Display 1. SURROUND mode indicator 6. TAPE Monitor indicator When you select surround mode, the selected function This indicator will illuminate When you press TAPE and surround mode will be displayed. MONITOR button. 2. Input source, frequency and level indicator 7. -
Page 11: Remote Control Unit
REMOTE CONTROL UNIT Using the Remote Control Unit Battery Installation By using the provided remote control unit, the receiver and matched optional components CDC-85 and TDX-85 can be controlled from your listening position. To use the remote control unit, point it at the REMOTE SENSOR window of the receiver. -
Page 12: Remote Control Unit
Remote Control Unit POWER SELECTION 1. POWER ON button 2. POWER STANDBY button TUNER SECTION 3. SLEEP button 4. TUNING UP/DOWN buttons 5. P.CALL UP/DOWN buttons 6. NUMERIC keys 7. BAND selector button 8. DIRECT TUNING button AMP SECTION 9. INPUT SOURCE Selector buttons 10. -
Page 13: Audio Operations
AUDIO OPERATIONS Back-up memory function WHEN TO USE RESET SWITCH BACK-UP memory Ocassionally, the microprocessor inside the unit may mal- This function stores the preset memory and most-recent function due to electrical power surges or lightning storms. If memory functions. In the event of a power failure, or if the the unit or display malfunctions, try resetting the micro- power cord of this unit is disconnected from the electric out- processor as shown. -
Page 14: Basic Operations
Basic Operations Audio Adjustments POWER STANDBY / ON Button Press this button to turn the power on. Press it again to turn the system off (power standby mode). 1. Set the MASTER VOLUME control to “0”. This is to pro- The indicator lights up in power standby mode and goes out tect the speakers from a sudden high-level signal. -
Page 15: Radio Reception
Radio Reception Manual Tuning Manual Tuning is generally used to tune to stations broad- Auto Tuning casting a signal that is too weak to be received by Auto Tuning. 1. Press the TUNER input selector. 2. Select AM or FM by pressing the BAND selector button. 3. -
Page 16: Direct Tuning With Remote Control
Direct Tuning With Remote Control You can tune a station directly by inputting the actual fre- quency using the remote control. 1. Press the TUNER button. 2. Select AM or FM by pressing the BAND selector button. 3. Press the DIRECT TUNING button on the remote control unit, “ENTER FREQUENCY”... -
Page 17: Preset Tuning
Preset Tuning Manual Memory Presetting This feature is used to store up to 30 FM, AM stations in memory. Automatic Memory Presetting 1. Press the TUNER input selector. 2. Select AM or FM by pressing the BAND selector button. 1. Press the TUNER input selector. 3. -
Page 18: Listening To Records And Compact Discs
1. Make sure the TAPE MONITOR button is set to OFF, An optional phono turntable can be connected to the then press the source selector button corresponding to PLR-85. However the turntable must be equipped with the source to be recorded. a magnetic type cartridge. -
Page 19: Video Operations
PLR-85 as shown on page 5. 1. Press the DVD/VIDEO 3 (or VIDEO 2) button and oper- ate DVD/VIDEO 3 (or VIDEO 2) for playback. -
Page 20: Surround Effects
SURROUND EFFECTS When you use a surround function, the PLR-85 creates a Surround Modes “live” atmosphere such as that experienced in movie theaters This unit is equipped with the following surround modes, and concert halls. which can be selected using the SURROUND MODE switches. -
Page 21: Center Mode
CENTER MODE DELAY TIME There are 3 kinds of center modes when operating in In the surround modes, the sound from the rear speakers DOLBY Surround mode. Select the desired mode suitable to should be delayed slightly, relative to that from the front your speaker system. -
Page 22: Playing Surround Sound
Playing Surround Sound DOLBY 3 STEREO DOLBY PRO LOGIC Surround Balancing Relative Volumes among Speakers 1. Press the DOLBY 3 STEREO button. Balancing Relative Volumes among Speakers 2. Set the MASTER VOLUME control to the normal listening 1. Press the DOLBY PRO LOGIC button. level. -
Page 23: Hall Or Theater Surround
HALL or THEATER Surround Balancing Relative Volumes among Speakers 1. Press the HALL or THEATER button. 2. Set the MASTER VOLUME control to the normal listening level. 3. Press the source component. 4. Adjust the rear speaker volume relative to that of the front speakers as desired. -
Page 24: Troubleshooting
TROUBLESHOOTING To determine any problem with your receiver, always check the most obvious possible causes first. If any problem still remains after your have checked the items below, consult your nearest TECHWOOD dealer. Problem Probable Cause Remedy Amplifier When listening to the music in stereo, Speakers are connected wrong. -
Page 25: Specifications
SPECIFICATIONS Amplifier Section AM Tuner Section Output Power (Front) : Tuning Range : F.T.C. Rating : 530 kHz - 1,720 kHz (10 kHz steps) 130 watts RMS per channel minimum, both channels (U.S.A./Canada) driven into 8 ohms from 20 Hz to 20 kHz with no more Usable Sensitivity : 55 dB/m than 0.9% total harmonic distortion(U.S.A./Canada) Total Harmonic Distortion : 0.8% at 85 dB/m... - Page 26 WELTON U.S.A. 11625 COLUMBIA CENTER DR. SUITE 100 DALLAS, TEXAS 75229 PHONE: 972-243-5602 KQX1A446Z FAX: 972-243-5958...
Need help?
Do you have a question about the PLR-85 and is the answer not in the manual?
Questions and answers

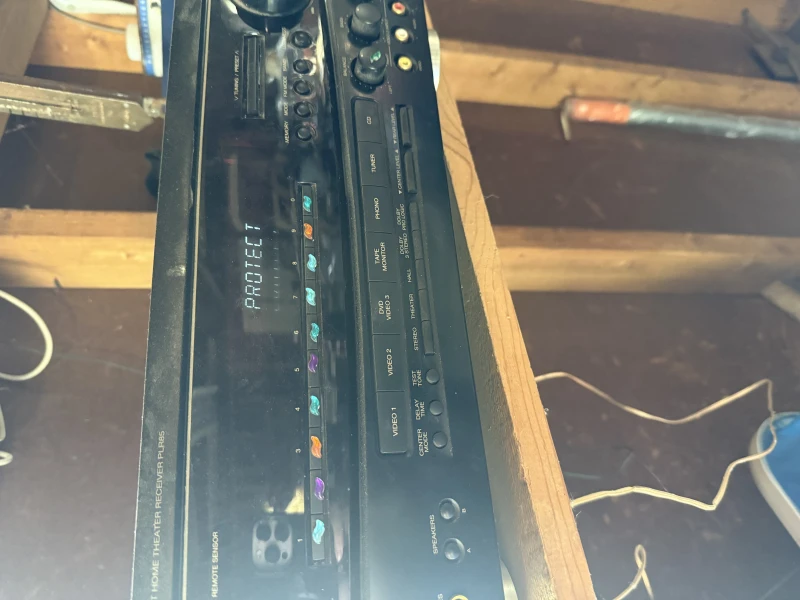

Receiver is flashing PROTECT. How do I fix?
