- Page 1 Model DV-W50E 4X DVD-R/-RW Drive User’s Manual Internal IDE Drive...
-
Page 3: Safety Precautions
Interference Problems. It is available from the U.S. Government Printing Office, Washington, D.C. 20402, stock number 004-000-00345-4. The user is cautioned that any changes or modifications not expressly approved by TEAC America, Inc. could void the user’s warranty. TEAC DVD-R/-RW Drive User’s Manual... -
Page 4: Copyright And Trademark Information
Appendix C. Technical Support: This appendix provides technical support contact information for TEAC America, Inc. Product Warranty Information This TEAC DVD-R/-RW drive features a one year warranty from the date of purchase. Please keep your receipt as proof of purchase. TEAC DVD-R/-RW Drive User’s Manual... -
Page 5: Table Of Contents
Appendix C. Technical Support ......... . 31 TEAC DVD-R/-RW Drive User’s Manual... -
Page 6: List Of Figures
Figure 24. Ejecting the Disc Tray ......... . 29 TEAC DVD-R/-RW Drive User’s Manual... -
Page 7: Chapter 1. Introduction
Chapter 1. Introduction Thank you for purchasing a TEAC DVD-R/-RW drive kit. The TEAC DVD-R/-RW drive can write to DVD-R discs at up to 4X speed, rewrite to DVD-RW discs at 2X speed, and play DVD movies at 12X speed. The drive can also write to CD-R discs at up to 16X speed, rewrite to CD-RW discs at 8X speed, and read CD-ROM discs at 32X speed. -
Page 8: Recommended System Requirements
It will not work on systems on which Windows 2000 has been installed by upgrading earlier versions of Windows (i.e., Windows 98SE). This software will not work with Windows 2000 Server, Advanced Server, Datacenter Server, NT, or NT 4.0 Server. TEAC DVD-R/-RW Drive User’s Manual... -
Page 9: Dvd-R/-Rw Package Contents
❑ One blank DVD-R disc ❑ Interface cable (ribbon cable) ❑ Audio cable (to connect internally to your PC) ❑ Mounting screws (not shown) ❑ TEAC DVD-R/-RW Drive User’s Manual (this booklet) TEAC DVD-R/-RW drive recording software and blank DVD-R disc user’s manual... -

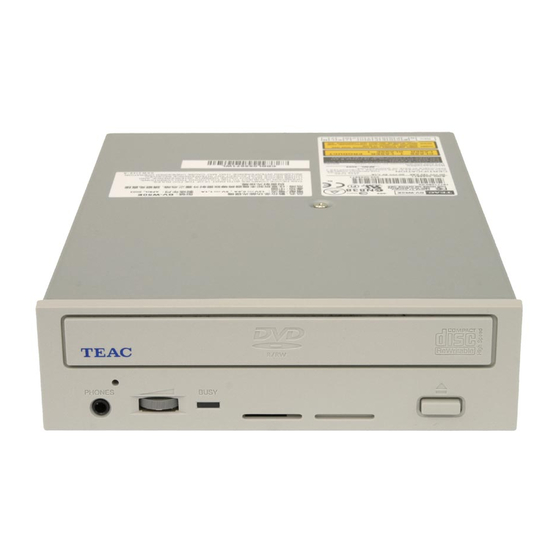

Page 10: Front Panel
Please press the Eject button to eject or retract the tray. headphone jack: You can connect headphones or external speakers to this jack to listen to an audio CD being played on your TEAC drive. Use a 3.5mm stereo mini-plug. To connect external speakers to this jack, you can connect a stereo adapter to split the output into separate cables for the left and right channels. - Page 11 Press this button to open or close the disc tray. (Some DVD movie discs and CD-ROM titles disable the manual eject button and rely on software commands to eject the disc. Refer to the documentation for these titles for more information.) TEAC DVD-R/-RW Drive User’s Manual...
-
Page 12: Rear Panel
+5VDC terminal is on the left as you face the rear panel; the +12VDC terminal is on the right. The two center terminals are ground terminals. (For more information, see “Installing the DVD-R/-RW Drive” on page 8 and Figure 7 on page 9). TEAC DVD-R/-RW Drive User’s Manual... -
Page 13: Chapter 2. Configuring And Installing The Dvd-R/-Rw Drive
Configuring the DVD-R/-RW Drive Chapter 2. Configuring and Installing the DVD-R/-RW Drive This chapter explains how to configure and install the TEAC DVD-R/-RW drive in your computer. Configuring the DVD-R/-RW Drive The DVD-R/-RW drive features five pairs of jumper pins on the rear panel. By placing the jumper on the appropriate pair of pins, you can set the drive to Master, Slave, or CSEL mode (see Figures 4 and 5). -
Page 14: Installing The Dvd-R/-Rw Drive
Installing the DVD-R/-RW Drive Installing the DVD-R/-RW Drive Note: TEAC recommends that you connect the DVD-R/-RW drive to the secondary IDE port in your computer. Do not connect the drive in a “daisy-chain” to the hard disk drive. 1. Turn off the power to the computer system and any external devices connected to it. -
Page 15: Figure 6. Installing The Dvd-R/-Rw Drive In A Computer
Figure 6. Installing the DVD-R/-RW Drive in a Computer 4c) Locate the secondary IDE connector on your system’s motherboard and connect one end of the IDE interface cable provided with your TEAC kit to it. Be certain to connect Pin-1 of the interface cable to Pin-1 on the secondary IDE connector on the motherboard. - Page 16 CD-ROM/DVD drive. 5a) Set the jumper on the rear panel of the DVD-R/-RW drive to Slave. Note: If your original drive is configured as CSEL, configure the TEAC drive as CSEL also. System software will configure the drives accordingly.
-
Page 17: High Speed Recording Guidelines
, then click the Secondary IDE Channel Advanced Settings tab. For the parameter, select Transfer Mode DMA if available Refer to Figure 8. Windows 2000 Windows XP Figure 8. Windows XP and Windows 2000 Transfer Mode Settings TEAC DVD-R/-RW Drive User’s Manual... -
Page 18: Windows 98Se And Windows Me
Such adapters convert a male stereo mini-jack to two female phono jacks. Alternatively, if you are using a sound card in your PC, you can connect external powered speakers to the audio connectors on the rear panel of the PC. TEAC DVD-R/-RW Drive User’s Manual... -
Page 19: Chapter 3. Installing Software
Chapter 3. Installing Software Before you install any of the included software programs, please make sure that the TEAC DVD-R/-RW drive is properly installed as per the instructions in “Chapter 2. Configuring and Installing the DVD-R/-RW Drive” on page 7. -
Page 20: Uninstalling Old Versions Of Easy Cd Creator
“Explorer” and “Systray,” select each program, then click the button. End Task (You may need to repeat this process since you can only disable one application at a time.) Then proceed with the installation below. Figure 10. Close Program Panel TEAC DVD-R/-RW Drive User’s Manual... -
Page 21: Figure 11. Auto Detect Panel
Installing Easy CD Creator DVD Edition 5.3x Basic Software 1. Insert the Easy CD Creator DVD Edition 5.3x Basic CD-ROM into your computer’s CD-ROM drive or into the TEAC DVD-R/-RW drive. If the Autoplay function is enabled, the system displays the auto detect screen (Figure 11 on page 15). -
Page 22: Figure 14. Setup Type Panel
The system verifies that you wish to begin the installation (Figure 15). Figure 15. Ready to Install Panel 5. Click the button. Install The system begins the installation and displays a progress bar (Figure 16 on page 17). TEAC DVD-R/-RW Drive User’s Manual... -
Page 23: Figure 16. Installing Status Panel
Easy CD Creator DVD Edition 5.3x Basic Figure 18. Restart Panel 7. Click the button to restart the computer. Once the system reboots, will be Easy CD Creator DVD Edition 5.3x Basic ready for use. TEAC DVD-R/-RW Drive User’s Manual... -
Page 24: Online Registration
Online Registration Online Registration There is no need to register any portion of this kit. TEAC provides 100% support for the drive and the Roxio software. If a panel appears Registration Reminder when you launch the software, check the Easy CD Creator DVD Edition 5.3x Basic... -
Page 25: Using Easy Cd Creator Dvd Edition 5.3X Basic
The Quick Start Guide is in PDF format; therefore, you must have Adobe Acrobat Reader installed on your system to view and print this document. The Adobe Acrobat Reader program is a free download from the following website: http://www.adobe.com/products/acrobat/readstep2.html TEAC DVD-R/-RW Drive User’s Manual... -
Page 26: Make A Video Disc
DVD Builder User’s Guide is in PDF format; therefore, you must have Adobe Acrobat Reader installed on your system to view and print this document. Adobe Acrobat Reader is a free download from the following website: http://www.adobe.com/products/acrobat/readstep2.html. TEAC DVD-R/-RW Drive User’s Manual... -
Page 27: About The Easy Cd Creator Dvd Edition 5.3X Basic Help Files
About the Easy CD Creator DVD Edition 5.3x Basic Help Files About the Easy CD Creator DVD Edition 5.3x Basic Help Files The Roxio software contains a very comprehensive Help system. TEAC strongly recommends that you carefully review these files to take advantage of all the software features available to you within the different recording projects. -
Page 28: Updating The Roxio Software
Updating the Roxio Software Updating the Roxio Software TEAC America provides support for all items in your DVD-Recorder DV-W50E kit. However, recording software updates (if any) will be available only from the Roxio website. To determine the software version currently installed on your system, click the... -
Page 29: Installing Additional Software
Installing Additional Software Installing Additional Software The TEAC DV-W50E Kit contains the following software, which is designed to complement and enhance the experience of using your new DVD-R drive. MusicMatch 7 Basic This software allows you to organize, browse, and listen to your music file collection, play audio CDs and MP3 files, create MP3 files from your favorite audio CDs, and sample listening to on-line music. -
Page 30: Installing Powerdvd Software
Note: Once the software installation is completed, you will be prompted to execute the System Diagnostic program. Select “YES” and be sure to enable DMA for the TEAC DV-W50E and any other drives that support this function. To launch the... -
Page 31: Figure 22. Cyberlink Powerdvd Panel
Installing Additional Software features a graphical user interface (Figure 22) that enables you to PowerDVD control the playback features of DVD discs on the TEAC DV-W50E. 4. To learn more about features and operational information, PowerDVD click the Help button in the lower-right corner of the... - Page 32 Installing Additional Software TEAC DVD-R/-RW Drive User’s Manual...
-
Page 33: Appendix A. About Dvd-R, Dvd-Rw, Cd-R And Cd-Rw Discs
Do not use benzene, alcohol, thinner, or other solvents. wipe disc surface from handle discs center to outside edge by their edges Figure 23. How to Handle Discs TEAC DVD-R/-RW Drive User’s Manual... -
Page 34: Recommended Media
Recommended Media Recommended Media One blank TEAC DVD-R disc is included in the package with your DVD-R/-RW drive. For optimum performance, use only media from TEAC or the following manufacturers: Disc Type Manufacturer Disc Type Manufacturer DVD-R Fuji DVD-RW Maxell... -
Page 35: Disc Formats
Disc Formats Disc Formats The TEAC DVD-R/-RW drive supports the following disc formats: Disc Format Data Capacity DVD-ROM (single and dual layer) 4.7GB DVD-R 4.7GB DVD-RW (Version 1.0 and 1.1) 4.7GB CD-DA 74 or 80 minutes CD-ROM Mode 1 650MB or 700MB... -
Page 36: Appendix B. Specifications
5° C to 45° C (41° F to 113° F) Storage Temperature -20° C to 60° C (-4° F to 140° F) Operating Humidity 5% to 85% (non-condensing) Storage Humidity 5% to 90% (non-condensing) Agency Certificate UL, CSA, TUV, FCC, FDA, CB and Fimko TEAC DVD-R/-RW Drive User’s Manual... -
Page 37: Appendix C. Technical Support
Loading and Ejecting Discs Appendix C. Technical Support For technical support, please contact: TEAC America, Inc. (USA) Technical Support Telephone: (323) 727-4860 • Fax: (323) 869-8751 Monday - Friday 8:00 a.m. - 5:00 pm PST http://www.teac.com/DSPD E-mail: dspdtsg@teac.com TEAC DVD-R/-RW Drive User’s Manual... - Page 38 Loading and Ejecting Discs TEAC DVD-R/-RW Drive User’s Manual...
