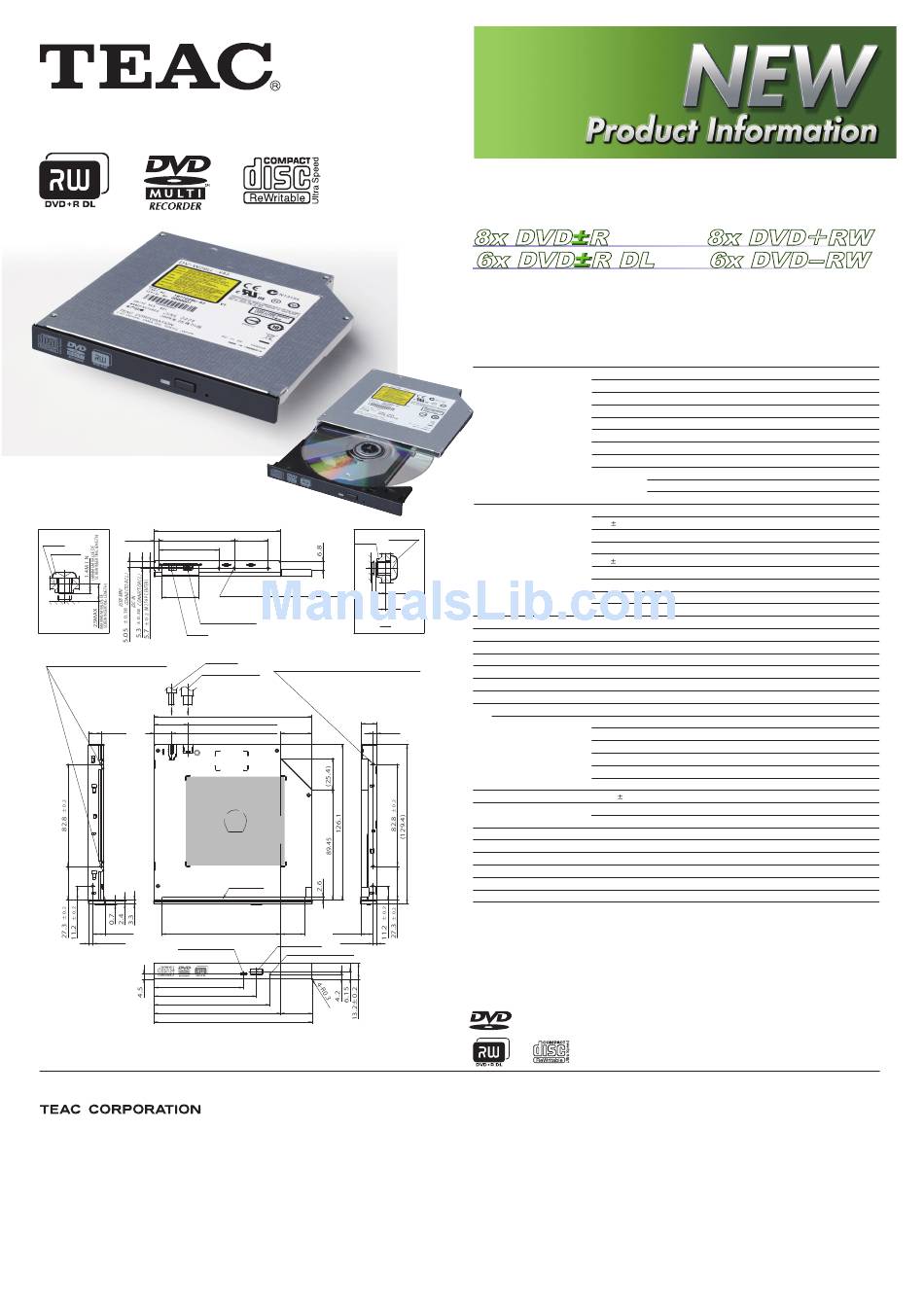

Teac DV-W28U-V Product Information

102.6
3.8 61.3
±0.2 ±0.2
FRAME,MAIN
48.8
±0.2
MOUNTING SCREW
30
USB MINI CONNECTOR
Fig.2
DC IN
2-M2 TAPPED HOLES FOR INSTALLATION.
DC IN
DEPTH 2.5MAX.1.4MIN.
REFER TO Fig.2
CLAMPING TORQUE:0.255N ・ m MAX(2.6kg ・ cm MAX) USB MINI CONNECTOR
RECOMMENDATION TORQUE:0.176N ・ m∼0.235N ・ m
(1.8kg ・ cm∼2.4kg ・ cm)
27.25
(USB MINI CONNECTOR CL.)
10 14.25
(DC IN CONNECTOR CL.)
±0.2
9.9 96.55
+0.4
-0.25
3.3
±0.2
ACCESS INDICATOR
72.7
83.2
94.2
(102.8)
128.4±0.2
(NOTE)THIS SIDE VIEW IS FOR BEZEL ONLY.
BEZEL:GENERIC TYPE
DV-W28U-xx
Corporate and product names are the respective trademarks or registered trademarks of the companies mentioned. Features and specifications are subject to change without notice. Precaution : To ensure safe handling and operation, read the Instruction Manual before use.
TEAC CORPORATION ( http://www.teac.co.jp ) 1-
TEAC AMERICA, INC. ( http://www.teac.com )
TEAC EUROPE GmbH. ( http://www.teac.de )
TAIWAN TEAC CORPORATION ( http://www.teac.com.tw )
TEAC ELECTRONICS ( M ) SDN BHD ( http://www.teac.com.my )
© Copyright TEAC CORPORATION 2010
27.3
±0.2
MOUNTING SCREW
FRAME,MAIN
4-M2 TAPPED HOLES FOR INSTALLATION
1.4MIN
DEPTH 2.5MAX. 1.4MIN. REFER TO Fig.2
(MINIMUM VALUE OF
CLAMPING TORQUE:0.255N ・ m MAX(2.6kg ・ cm MAX)
SCREW INSERTING LENGTH)
RECOMMENDATION TORQUE:0.176N ・ m∼0.235N ・ m 2MAX
(1.8kg ・ cm∼2.4kg ・ cm)
(MAXIMUM VALUE OF
SCREW INSERTING LENGTH)
Fig.1
4-M2 TAPPED HOLES FOR INSTALLATION.
DEPTH 2.0MAX. 1.4MIN.
(LEFT SIDE 1,RIGHT SIDE 3) REFER TO Fig.1
X X
CLAMPING TORQUE:0.255N ・ m MAX(2.6kg ・ cm MAX)
RECOMMENDATION TORQUE:0.176N ・ m∼0.235N ・ m
(1.8kg ・ cm∼2.4kg ・ cm)
128
12.7
(25.4) 3
±0.2
CONVEX:0.7
19.45 9.9
+0.4
-0.25
3.3
±0.2
EJECT BUTTON
EMERGENCY HOLE(∅1.6)
(25.6)
(±0.4)
(Unit:mm)
Data Storage Products Division
47 Ochiai, Tama-shi, Tokyo 206-8530 Japan Phone:81-42-356-9153 Fax:81-42-356-9184
7733 Telegraph Road, Montebello, California 90640, U.S.A. Phone:1-323-726-0303 Fax:1-323-727-7656
Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany Phone:49-611-71580 Fax:49-611-7158-392
3F No.45, Sec.1 Min Chuan E. Road, 104 Taipei, Taiwan R.O.C. Phone:886-2-2597-8608 Fax:886-2-2597-8591
Lot 22, Batu Berendam Ftz Ⅲ, Batu Berendam, 75350 Melaka, Malaysia. Phone:60-6-2843402 Fax:60-6-2843471
DVD Super Multi USB Interface Drive
DV-W28U-V
8x DVD R
8x DVD R
6x DVD R DL
6x DVD R DL
■ Half inch height ( 12.7mm ) standard design with USB Interface
■ Buffer underrun prevention
■ Supporting disc-at-once, session-at-once, packet write, incremental,
over write, track-at-once recording mode, sequential write, multi-session,
and back ground format
■ Horizontal and vertical mounting for most system configuration
Write Speed DVD+R
( Max Speed ) DVD+R DL
DVD-R
DVD-R DL
DVD+RW
DVD-RW
DVD-RAM
CD-R
CD-RW
Read Speed DVD-ROM
( Max Speed ) DVD R
DVD+R DL ( Finalized Disc ) 8x ( CAV )
DVD-R DL ( Finalized Disc ) 6x ( CAV )
DVD RW
DVD-RAM ( 4.7G )
CD-ROM
CD-R/RW
CD-DA ( DAE )
Disc Diameter 12cm, 8cm
Interface USB 2.0
Interface Connector Mini B Type USB / DC IN 5V ( Diameter 4mm )
Data Transfer Rate 480M bps at high speed, 12M bps at full speed
Access Time 200ms ( typ )
Data Buffer 2MB
Loading Mechanism Drawer Type
Environmental Condition
Ambient Temperature Operating
Non Operating
Transportation
Ambient Humidity Operating
Non Operating
Transportation
Power Requirements DC5V 5%
Current Consumption Standby / Sleep 150mA ( Average current max )
During starting / Seek 1500mA ( Max, Spikes less 1ms )
MTBF 60,000POH ( 10% duty )
Safty / EMI Standards UL, CUL, TÜV, CB, CE and BSMI
USB Logo Not available
Dimensions 128.0W x 12.7H x 129.4D ( mm )
Mass ( Weight ) 172g or less
RoHS Complied
Remark
Please check the specification sheets for detailed conditions and other information.
＊ The maximum wet-bulb temp. is 29.4 degree C
is a trademark of DVD Format/Logo Licensing Corporation registered
in the U.S., Japan and other countries.
and are trademarks of Koninklijke Philips Electronics N.V .
8x DVD＋RW
8x DVD＋RW
6x DVD­RW
6x DVD­RW
8x ( CAV )
6x ( ZCLV )
8x ( CAV )
6x ( ZCLV )
8x ( ZCLV )
6x ( ZCLV )
5x ( ZCLV )
24x ( CAV )
US 24x ( ZCLV )
HS 10x ( CLV )
MS 4x ( ＣＬＶ )
8x ( CAV )
8x ( CAV )
8x ( CAV )
5x ( ZCLV )
24x ( CAV )
24x ( CAV )
24x ( CAV )
5 to 45℃
-20 to 60℃
-40 to 65℃
8 to 80% ( non-condensing ) *
5 to 95% ( non-condensing ) *
5 to 95% ( non-condensing ) *
PRINTED IN JAPAN Feb.'10 PDF . DS-299B
