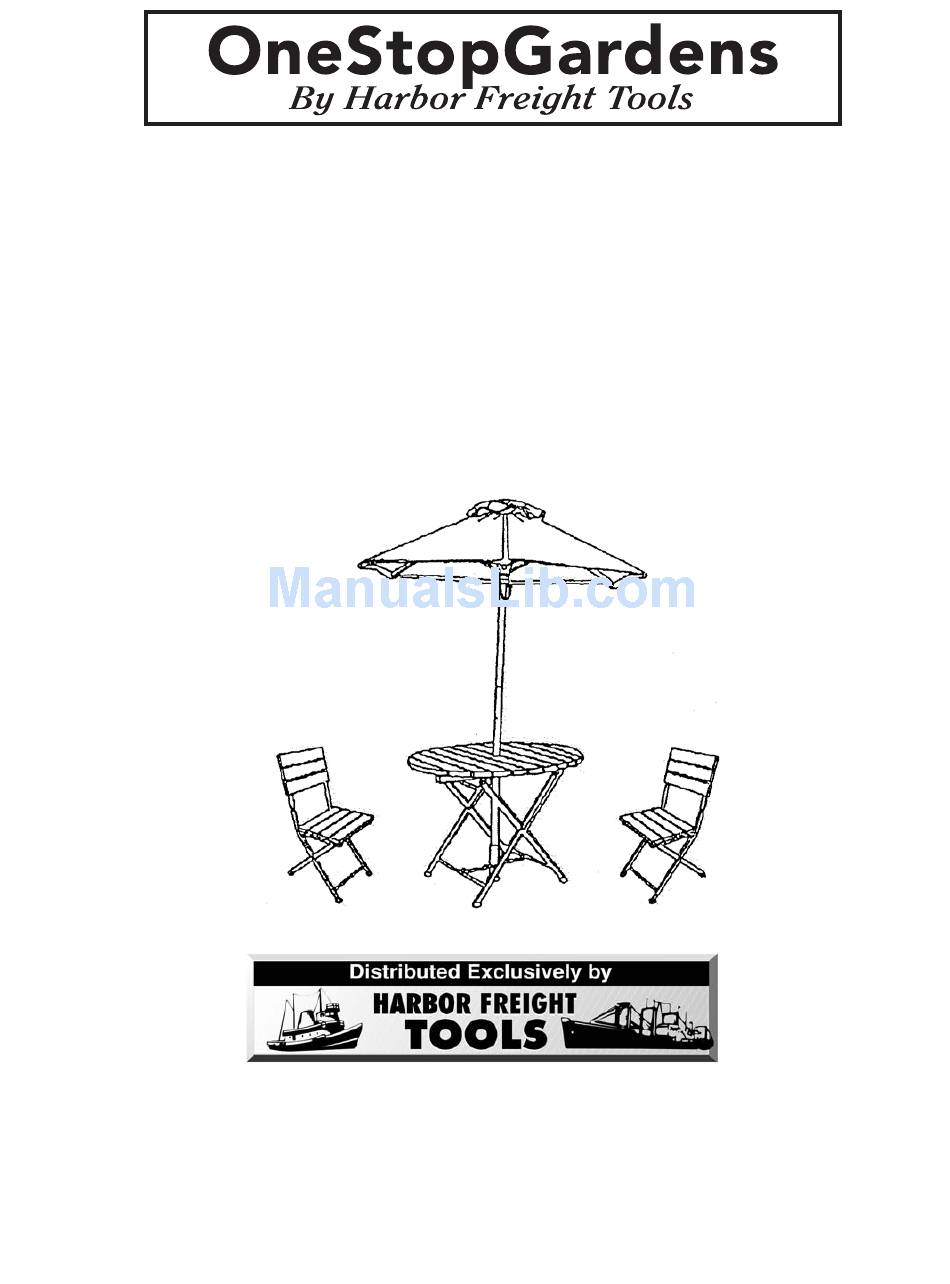

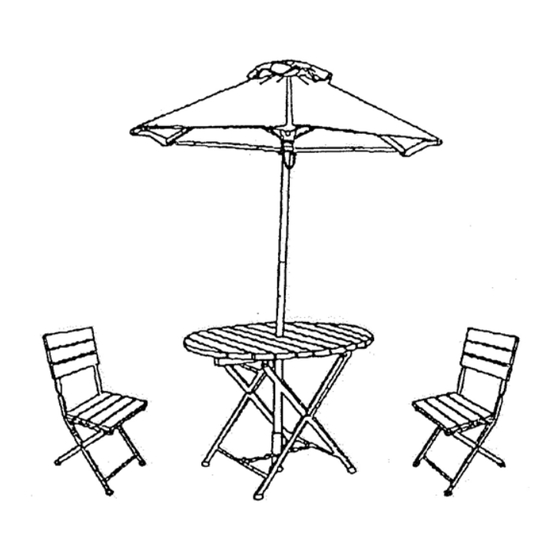

CHILDREN'S PATIO SET
4 PIECE
Model 09018
Assembly and OPERATING
INSTRUCTIONS
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright © 2003 by Harbor Freight Tools
®
. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools .
For technical questions and replacement parts, please call 1-800-444-3353
Advertisement
Table of Contents
Related Manuals for One Stop Gardens 9018
Summary of Contents for One Stop Gardens 9018
- Page 1 . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools . For technical questions and replacement parts, please call 1-800-444-3353...
- Page 2 Table Dimensions Chair Dimensions (2) Umbrella Dimensions Umbrella Stand Chair Sitting Area Materials: Hard Wood, Carbon Steel Frames, Gray Paint, Waterproof Umbrella Material CHAIR CAPACITY: 220 LBS. / TABLE CAPACITY: 175 LBS. You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram.
- Page 3 (California Health & Safety code 25249.5, et seq.) When unpacking, check to make sure the parts listed on page 6 are included. If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover of this manual as soon as possible.
- Page 4 See the Parts List/Drawing on page 6. 1. Assembling the Table Stand (#1): Use two sets of Screws (#6) on each side of the Brace (#10) to support the bottom of the Table Stand (#1). Align the Umbrella Stand (#9) next to the Brace (#10).
- Page 5 4. Connect the Umbrella (#8) and the Pole (#12) using Screw (#7). Slide the Pole (#12) into the Umbrella Stand (#9). See FIGURE 4. 5. Attach the Chair Board (#4) to the Chair Stand (#3) using four sets of Screws (#6). Note: Remember to set the Patio Set up on a flat, dry, level surface.
-
Page 6: Parts List
Part No. PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBU- TOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
