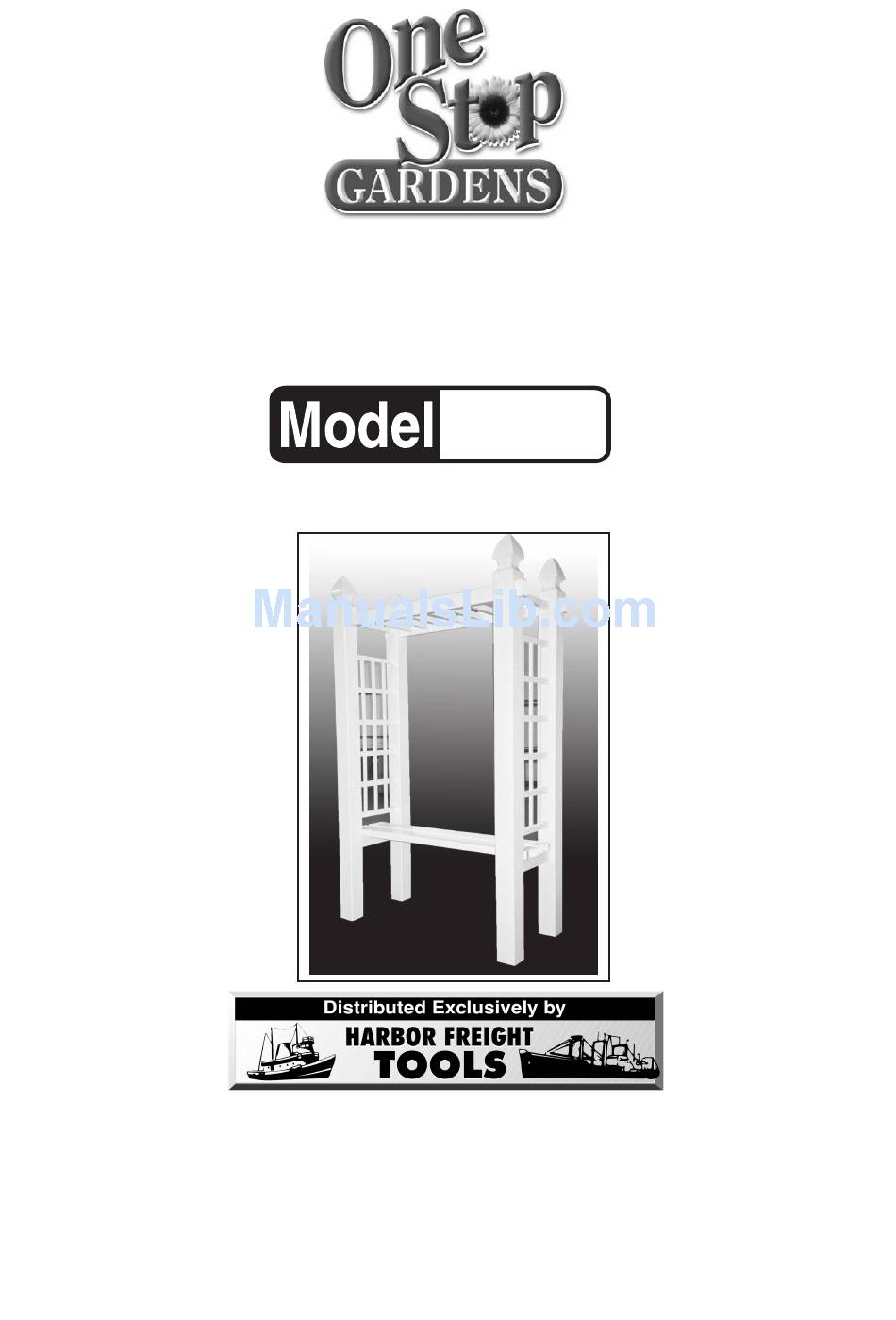

WHITE PVC
TRELLIS
91761
ASSEMBLY INSTRUCTIONS
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright © 2004 by Harbor Freight Tools ®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
Advertisement
Table of Contents
Related Manuals for One Stop Gardens 91761
Summary of Contents for One Stop Gardens 91761
- Page 1 WHITE PVC TRELLIS 91761 ASSEMBLY INSTRUCTIONS ® 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our Web site at http://www.harborfreight.com Copyright © 2004 by Harbor Freight Tools ®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.
- Page 2 Specifications 58-5/8” Wide X 27-1/4” Deep X 97” High Overall Dimensions 200 Lbs. Bench Max. Weight Capacity White PVC-U.V. treated for Weather Protection Materials 89 Lbs. Weight Save This Manual You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram.
-
Page 3: Assembly Instructions
10. Warning: Locate Trelllis in a spot that is flat without an uneven surface, away from electrical wires. Caution: Heavy winds could make the Trellis unstable. 11. Always distribute objects on Bench evenly. Uneven weight distribution could cause toppling. Do not allow children to climb on the Trellis. Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. - Page 4 5. Choose your location: The location site should be a flat, even surface (three possible set-up options: 1.) The Trellis can be free standing but caution should be taken: Always distribute weight evenly on the bench to prevent toppling. 2.) Stand the Trellis upright and place in 6” deep holes. Test that the Trellis is level.
-
Page 5: Parts List
Place Covers (9) (not shown) over the ends of the “ladder” that are exposed. Place the Covers (10) (not shown) over the Brace (8) pieces of the Bench. Tap into place. See Figure F. 10. After assembly of the Trellis is complete, test that the product is solid and stable before using the Trellis. - Page 6 Assembly Drawing (11) (5)) (10) PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
