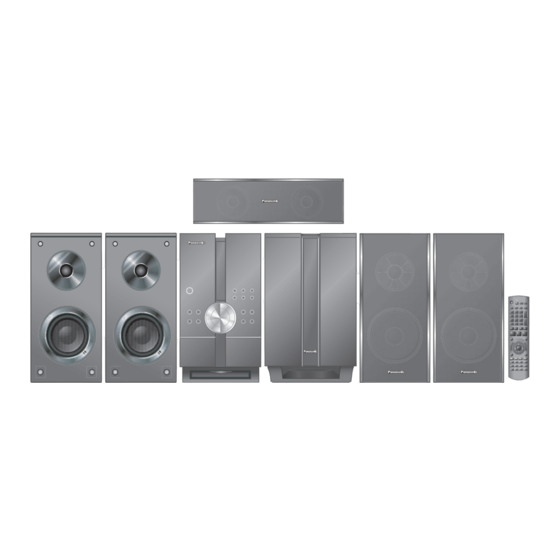

Setup Guide Operating Instructions DVD Stereo System SC-NC9 Model No. SC-NC6 STEP Positioning the speakers STEP Connecting the speakers STEP Television, antenna and AC mains lead connections STEP The remote control STEP QUICK SETUP Once all the connections are completed, kindly read the Operations Guide for playback operations.
Simple setup STEP Positioning the speakers Positioning for best effect How you set up your speakers can affect the bass and the sound field. Note the following points. • Place speakers on flat secure bases. • Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with a thick curtain.
Speaker installation options SC-NC9 ■ Assemblying the speakers for Bi-Amp TS mode To enjoy better sound quality in Bi-Amp TS mode (➡ Refining the sound quality: Fi Mode, page 34, Operations Guide), stack the surround speakers on the front speakers. 2 Base stands 6 Metal 12 Short...
+: Red Insert the –: Black SB-PS9 SB-PF9 SB-PC9 SB-WNC9 SURROUND FRONT CENTER SUB-WOOFER wire fully. SC-NC6 SUBWOOFER FRONT (L) FRONT (R) AC IN +: Red (75 ) FM ANT LOOP L L O O O P Insert the wire fully.
STEP Television, antenna and AC mains lead connections AM loop FM indoor AC mains lead Video cable antenna antenna Supplied accessories • Connect the AC mains lead after all other connections are complete. Conserving power The unit consumes a small amount of power (approx. 0.9 W) even when it is in standby mode. To save power when the unit is not to be used for a long time, unplug it from the household mains socket.
Page 6
Using the VIERA Link “HDAVI Control ” • Do not use the SCART cable when you use the If your Panasonic television is an HDMI control HDMI cable for the connection. compatible television, you can operate your • When HDMI cable is connected, there will be no...
■ Using an S VIDEO OUT terminal Television S Video cable Back of this unit (not included) S-VIDEO S VIDEO The S VIDEO terminal achieves a more vivid picture than the VIDEO OUT terminal by separating the chrominance (C) and luminance (Y) signals. (Actual AV OUT results depend on the television.) ■...
Page 8
S-Video/YPbPr : S-Video and YPbPr be output from the SCART (AV) and • RGB/No Output : RGB only Component terminal. • Boxed items are the factory settings in the above diagram. Matsushita Electric Industrial Co., Ltd. RQTX0073-B Web Site: http://panasonic.net H0307VT0...
