JVC KD-R406 Instructions Manual

Cd receiver
Hide thumbs Also See for KD-R406:
Table of Contents

Advertisement

Quick Links

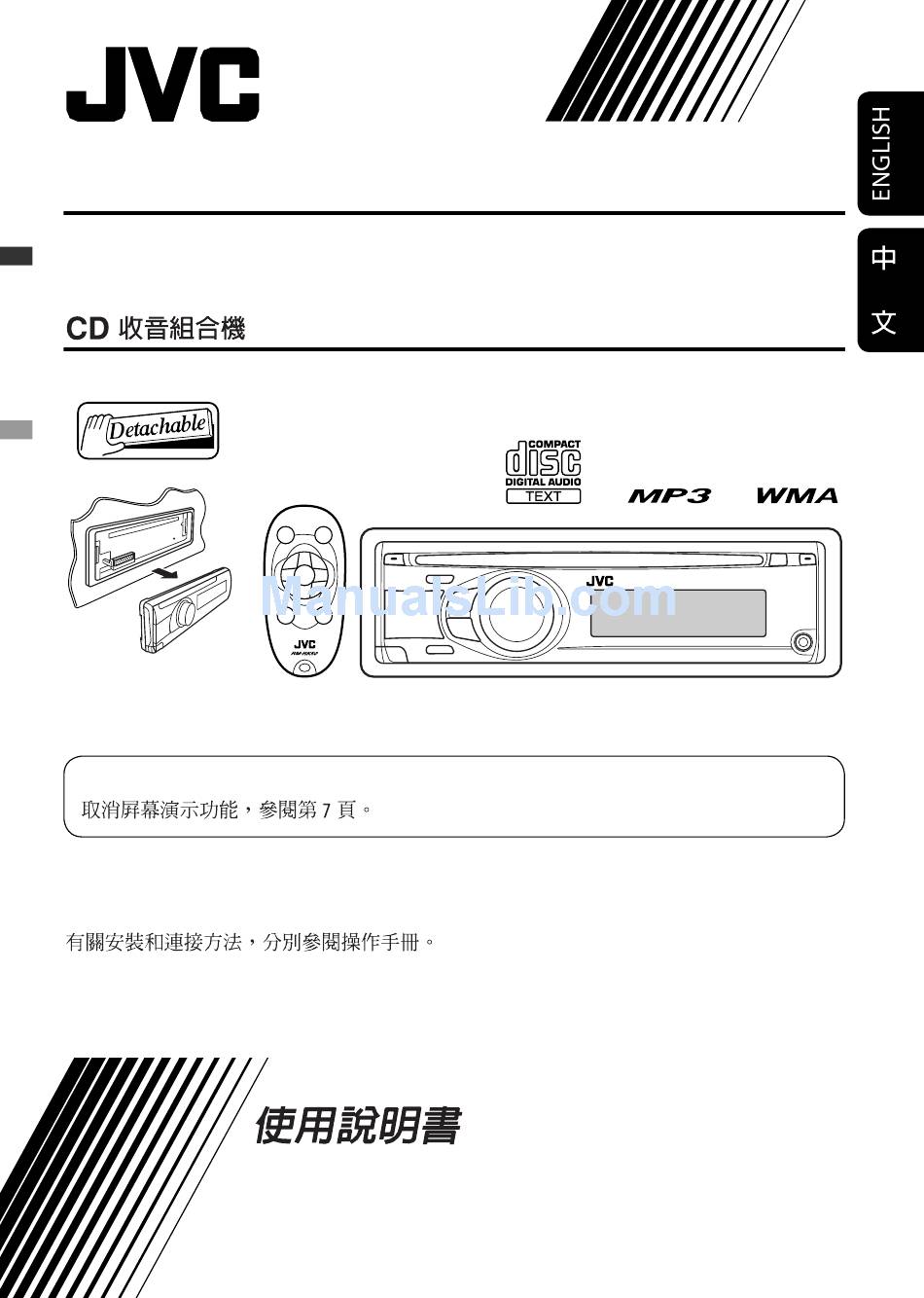

CD RECEIVER
For canceling the display demonstration, see page 7.
For installation and connections, refer to the separate manual.
INSTRUCTIONS
KD-R406/KD-R405
KD-R406/KD-R405
GET0571-005A
[UT]

Advertisement

Table of Contents
loading

Related Manuals for JVC KD-R406

Summary of Contents for JVC KD-R406

  • Page 1 CD RECEIVER KD-R406/KD-R405 KD-R406/KD-R405 For canceling the display demonstration, see page 7. For installation and connections, refer to the separate manual. INSTRUCTIONS GET0571-005A [UT]...
  • Page 2 Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

  • Page 3: Table Of Contents

    CONTENTS How to reset your unit OPERATIONS Basic operations ........... 4 • Using the control panel ....... • Using the remote controller (RM-RK50) ..Preparation ..........7 • Your preset adjustments will also be erased (except the Listening to the radio ........8 registered Bluetooth device, see page 10).

  • Page 4: Basic Operations

    Basic operations Using the control panel FM/AM CD/CD-CH IPOD BT-PHONE/BT-AUDIO FM/AM CD/CD-CH IPOD BT-PHONE/BT-AUDIO AM * CD * CD-CH * /IPOD * BT-PHONE * BT-AUDIO * EXT INPUT AUX IN * You cannot select these sources if they were disabled in the Menu (see “Menu operations”...

  • Page 5: Using The Remote Controller (Rm-Rk50)

    Display window Bluetooth indicator Sound mode indicators—CLASSIC, HIP HOP, JAZZ, Tr (track) indicator ROCK, POPS, USER Status of Bluetooth device EQ (equalizer) indicator (Device number, [P: 1 – 5]; signal strength, LOUD (loudness) indicator : 0 – 3]*; battery reminder, [ : 0 – 3]*) Disc information indicators—...
  • Page 6 For Bluetooth cellular phone: – Answers calls if pressed briefly. – Rejects calls if pressed and held. • Searches for stations if pressed briefly. • Fast-forwards or reverses the track if pressed and held. • Changes the tracks if pressed briefly. •...

  • Page 7: Preparation

    Preparation Cancel the display demonstration and set the clock • See also page 20. Turn on the power. Cancel the display demonstrations Select “DEMO,” then “DEMO OFF.” Set the clock “CLOCK SET.” Select “CLOCK” Adjust the hour, then press control dial once to proceed to adjust the minute.

  • Page 8: Listening To The Radio

    Listening to the radio Select “FM” or “AM.” Search for a station to listen—Auto Search. Manual Search: Hold either one of the buttons until “M” flashes on the display, then press it repeatedly. • When receiving an FM stereo broadcast with sufficient signal strength, “ST” lights up on the display.

  • Page 9: Disc Operations

    Manual presetting (FM/AM) Selecting preset station Select preset number “04.” Disc operations Turn on the power. Insert a disc. Stop playing and ejecting the disc Selecting a track/folder Prohibiting disc ejection To cancel the prohibition, Continued on the next page OPERATIONS...

  • Page 10: Using The Bluetooth ® Devices

    Pressing (or holding) the following buttons allows you Using the Bluetooth ® to... devices MP3/WMA: Select folder For Bluetooth operations, it is required to connect the Bluetooth adapter (KS-BTA200) (separately [Press] Select track purchased) to the CD changer jack on the rear of this [Hold] Reverse/fast-forward track unit.
  • Page 11 Registering using “OPEN” Use the Bluetooth device to search and connect. Preparation: Operate the device to turn on its On the device to be connected, enter the same Bluetooth function. PIN code you have just entered for this unit. Select “BT-PHONE” or “BT-AUDIO.” “CONNECTED”...

  • Page 12: Using The Bluetooth Cellular Phone

    If the cellular phone is compatible with text message • The display will flash in blue (see “RING COLOR” (notified through JVC Bluetooth adapter) and “MSG on page 21 for setting.) INFO” (message info) is set to “AUTO” (see page 19), the unit rings to inform you of the message arrival.

  • Page 13: Using The Bluetooth Audio Player

    Bluetooth Information: * Displays only when your cellular phone is equipped If you wish to receive more information about with these functions and is compatible with this unit. Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English Voice dialing: website only) Select “VOICE DIAL.”...

  • Page 14: Listening To The Cd Changer

    Listening to the CD changer It is recommended to use a JVC MP3-compatible CD changer (separately purchased) with your unit. You can connect a CD changer to the CD changer jack on the rear of the unit. • You can only play conventional CDs (including CD Text) and MP3 discs.

  • Page 15: Listening To The Ipod

    Listening to the iPod Before operating, connect the Interface adapter for iPod, KS-PD100 (separately purchased) to the CD changer jack on the rear of the unit. Preparation: Make sure “CH / IPOD” is selected in the “SRC SELECT” “EXT IN” setting, see page 22. Select “IPOD.”...

  • Page 16: Listening To The Other External Components

    Listening to the other external components You can connect an external component to: • CD changer jack on the rear of this unit using the following adapters: – Line Input Adapter, KS-U57 (separately purchsed) – AUX Input Adapter, KS-U58 (separately purchsed) Preparation: Make sure “EXT INPUT”...

  • Page 17: Settings

    Selecting a preset sound mode You can select a preset sound mode suitable to the music genre. • See also page 20 (“EQ”). Selecting from Menu. [Turn] [Press] Select “EQ” Preset value setting for each sound mode Preset value Sound BASS MIDDLE TREBLE...

  • Page 18: Title Assignment

    Select a tone. Title assignment You can assign titles to 30 station frequencies (FM and [Turn] [Press] AM) using 8 characters (maximum) for each title. Select “FM” or “AM.” Adjust the sound elements of the selected Show the title entry screen. tone.

  • Page 19: Bluetooth Settings

    The unit does not inform you of the connected and it is compatible with text message arrival of a message. (notified through JVC Bluetooth adapter). Bluetooth Audio: Shows only “Version.” MIC SETTING (microphone setting) Only for the device being connected for “BT-PHONE.”...

  • Page 20: Menu Operations

    Menu operations Repeat step 2 if necessary. • To return to the previous menu, [Turn] [Press] press BACK. Initial: Underlined Category Menu items Selectable settings, [reference page] DEMO • DEMO ON : Display demonstration will be activated automatically if no Display operation is done for about 20 seconds, [7].
  • Page 21 Category Menu items Selectable settings, [reference page] MONO * • MONO ON : Activate monaural mode to improve FM reception, but stereo Monaural mode effect will be lost, [8]. • MONO OFF : Restore the stereo effect. IF BAND • AUTO : Increases the tuner selectivity to reduce interference noises Intermediate between adjacent stations.
  • Page 22 : Enable “AM” in source selection, [4]. EXT IN * • CH / IPOD : To use a JVC CD changer, [14], or an Apple iPod, [15]. External input • EXT INPUT : To connect portable audio player to the CD changer jack, [16].

  • Page 23: Color Settings

    Color settings Creating your own color Select a primary color. —USER Color You can create your own colors—“DAY COLOR” or [Turn] [Press] “NIGHT COLOR.” DAY COLOR: Used when “DIMMER” is set to “DIMMER OFF.” NIGHT COLOR: Used when “DIMMER” is set to Adjust the level (00 to 31) of the selected “DIMMER ON.”...

  • Page 24: More About This Unit

    More about this unit Basic operations Disc operations Turning on the power Caution for DualDisc playback • By pressing SRC button on the unit, you can also turn • The Non-DVD side of a “DualDisc” does not comply on the power. If the source is ready, playback also with the “Compact Disc Digital Audio”...

  • Page 25: Bluetooth Operations

    • CD-RWs may require a longer readout time since the Files recorded in VBR have a discrepancy in the reflectance of CD-RWs is lower than that of regular elapsed time display, and do not show the actual CDs. elapsed time. In particular, this difference becomes •...
  • Page 26 In this case, the message does not disappear, turn off and turn on visit the following JVC web site: <http://www.jvc. the unit, then connect the device again (or reset the co.jp/english/car/> (English website only) unit).

  • Page 27: Troubleshooting

    Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms Remedies/Causes • Sound cannot be heard from the speakers. • Adjust the volume to the optimum level. • Check the cords and connections. •...
  • Page 28 Symptoms Remedies/Causes • Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet. • Add the extension code <.mp3> or <.wma> to the file names.
  • Page 29 Symptoms Remedies/Causes Continued on the next page REFERENCES...
  • Page 30 • The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.

  • Page 31: Maintenance

    Maintenance How to clean the connectors To keep discs clean Frequent detachment will deteriorate the connectors. A dirty disc may not play correctly. To minimize this possibility, periodically wipe the If a disc does become dirty, wipe it with connectors with a cotton swab or cloth moistened with a soft cloth in a straight line from center alcohol, being careful not to damage the connectors.

  • Page 32: Specifications

    Specifications AUDIO AMPLIFIER SECTION Maximum Power Output: Front/Rear: 50 W per channel Continuous Power Output (RMS): Front/Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Load Impedance: 4 Ω...
  • Page 33 CD PLAYER SECTION Type: Compact disc player Signal Detection System: Non-contact optical pickup (semiconductor laser) Number of Channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max.
  • Page 34 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit EN, CT © 2008 Victor Company of Japan, Limited 0808DTSMDTJEIN...
  • Page 35 KD-R406/KD-R405 Installation/Connection Manual GET0571-010A 0808DTSMDTJEIN EN, CT [UT] © 2008 Victor Company of Japan, Limited ENGLISH WARNINGS • • • • • Ω Ω • • Ω Ω • • • • • • • × × × ×...
  • Page 36 INSTALLATION (IN-DASH MOUNTING) • × ×...
  • Page 37 ENGLISH ELECTRICAL CONNECTIONS TROUBLESHOOTING...
  • Page 38 • Set “L/O MODE” to “REAR” (See page 22 of the INSTRUCTIONS.) L/O MODE REAR JVC Amplifier Set “L/O MODE” to “SUB.W” (See page 22 of the INSTRUCTIONS.) L/O MODE SUB.W JVC Amplifier CAUTION: • To disconnect the connector...
