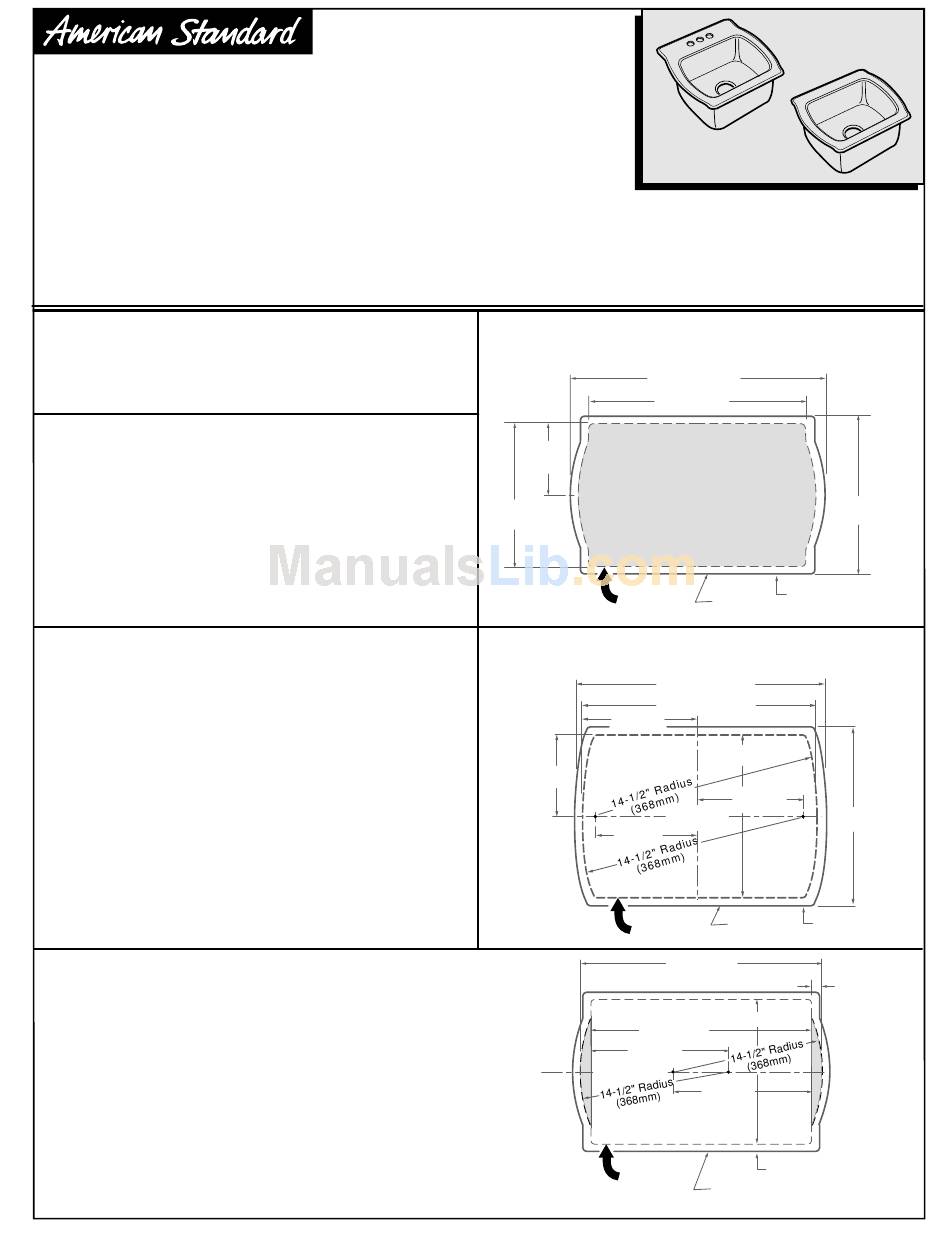

CHANDLER™ AMERICAST™ ISLAND SINK
WITH FAUCET HOLES 7182.001/7182.803
WITHOUT FAUCET HOLES 7182.000
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
BEFORE YOU BEGIN...Unpack new sink and
inspect carefully for damage. Replace the sink
in its original packing carton to protect it until
you are ready to begin installation.
Recommended Tools & Materials
Silicone Sealant
Putty Knife
Pipe Wrench
Channel Locks
Phillips Screwdriver
Regular Screwdriver
Adjustable Wrench
Drill
CUTOUT DIMENSIONS FOR SINK
Locate and mark center lines of sink on countertop.
Provide proper clearance under the countertop for
the faucet supply lines and the structural parts of the
cabinet.
Cut out correct template and trace the cut line onto
the countertop at the proper location.
NOTE: If replacing an existing sink be certain to shut
off water supplies before removing old sink.
MODIFICATION REQUIRED TO FIT ISLAND SINK
WITH FAUCET HOLES INTO A STANDARD
NOTE: CHANDLER ISLAND SINK WITHOUT
FAUCET HOLES DOES NOT FIT INTO A
STANDARD 15" X 15" SINK CUT OUT
Product names listed herein are trademarks of American Standard Inc. unless otherwise noted.
Installation
™
Instructions
Mineral Spirits
Basin Wrench
Saber Saw
Tubing Cutter
Tape Measure
Hacksaw
Scissors
15" X 15" SINK CUTOUT
Certified to comply with ANSI A112.19.4.M
U.S. Patent No. 4,664,982
Other patents pending.
CAN/C.S.A. B-45
Observe local plumbing and building codes.
ISLAND SINK MODEL 7182.001/803
CUTOUT FOR NEW INSTALLATION
16-1/2" (419mm)
14" (356mm)
8-11/32"
(212mm)
14"
(356mm)
CUTTING
LINE
ISLAND SINK MODEL 7182.000
CUTOUT FOR NEW INSTALLATION
16-1/2" (419mm)
15-9/16"(395mm)
7-25/32"
(198mm)
5-21/32"
(144mm)
CENTER LINE
6-23/32"
(171mm)
CUTTING
LINE
15" (381mm)
14" (356mm)
6-23/32"
(171mm)
CENTER LINE
CUTTING
LINE
7 9 1 2 6 7 - 4 0 0 R e v . C
15 "
(381mm)
1/2"TYP.
SINK
OUTLINE
11-9/32"
(287mm)
6-23/32"
(171mm)
12-3/8"
(314mm)
OF BOWL
SINK
1/2"TYP.
OUTLINE
3/4" (19mm)
14" (356mm)
6-23/32"
(171mm)
1/2"TYP.
SINK
OUTLINE
© American Standard Inc. 2003
