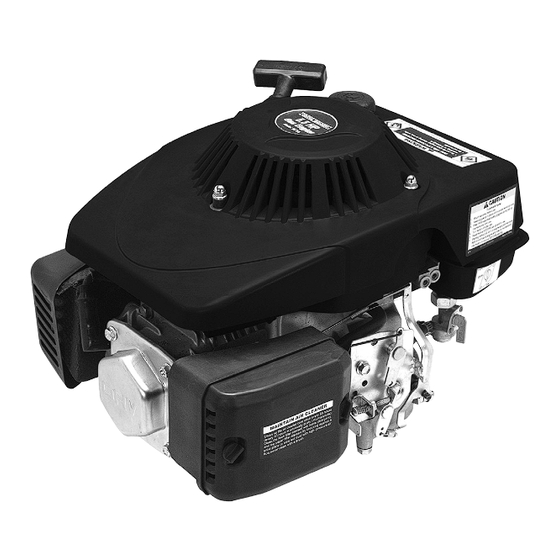

5.5 hp lawn mower engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

5.5 HP Lawn Mower enGIne
InstaLLatIon, oPeratInG, and servIcInG
distributed exclusively by Harbor Freight tools
visit our website at: http://www.harborfreight.com
read this material before using this product.
Failure to do so can result in serious injury.
save tHIs ManuaL.
©
Copyright
2008 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
installation and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Manual revised 10f
InstructIons
3491 Mission Oaks Blvd., Camarillo, CA 93011
®
. All rights reserved. No portion of this manual or any artwork
96156
using an engine indoors can KILL You In
MInutes.
engine exhaust contains carbon monoxide.
this is a poison you cannot see or smell.
never use inside
a home or garage,
even IF doors and
windows are open.
only use outsIde
and far away from
windows, doors, and
vents.
®
.
