Summary of Contents for Siemens LC47650

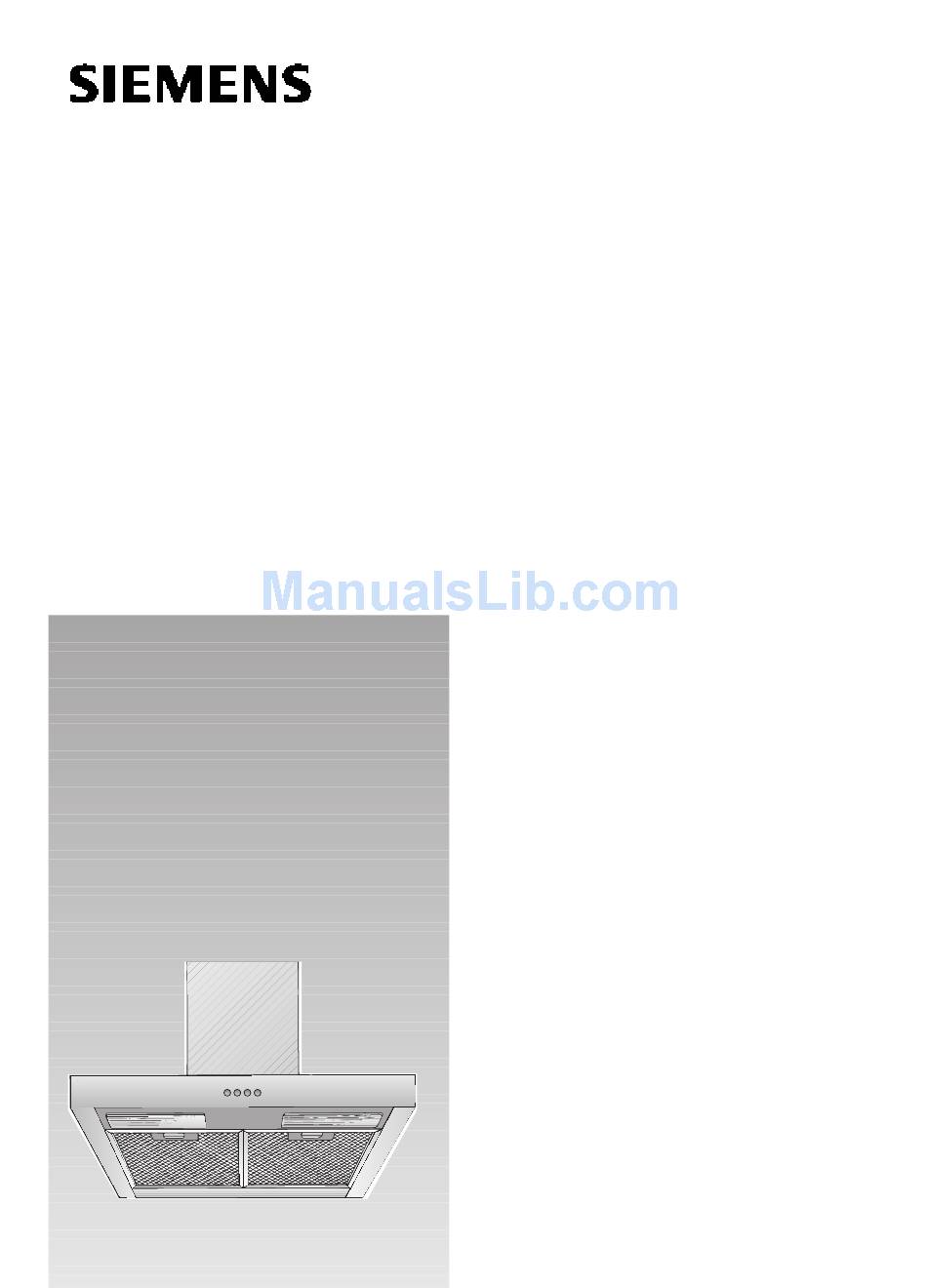

- Page 1 Operating and installation instructions LC 47650 LC 47950...
- Page 2 Fig. 1 Abb. 1 ELECTRO min. 650 min. 550...
-
Page 3: Appliance Description
Operating Instructions Appliance description Operating modes This can be achieved if combustion air can Chimney flow through non-lockable openings, e.g. in panelling doors, windows and via the air- intake/exhaust-air wall box or by other Light / fan technical measures, such as reciprocal switches interlocking, etc. -
Page 4: Before Using For The First Time
Before using for the first time Important notes: The Instructions for Use apply to several Before using your appliance for the first time, please read these Instructions for versions of this appliance. Accordingly, Use carefully. They contain important you may find descriptions of individual information concerning your personal features that do not apply to your safety as well as on use and care of the... -
Page 5: Operating Procedure
Operating procedure Filters and maintenance Grease filters: The most effective method of removing vapours produced during cooking is to: Metal filters are used to trap the greasy Switch the ventilator ON element of the vapours that develop as soon as you begin cooking. during cooking. - Page 6 Filters and maintenance Removing and inserting the metal grease Inserting the filter: filters: 1. Remove the metal filters (see "Removing 1. Press the catch on the grease filters and inserting the metal grease filters"). inwards and fold the filters down. 2.
-
Page 7: Cleaning And Care
Cleaning and care Replacing the light bulbs Disconnect the extractor hood from the 1. Switch off the extractor hood and pull electricity supply by pulling out the out the mains plug or switch off the mains plug or switching it off at the fuse electricity supply at the fuse box. -
Page 8: Installation Instructions
Installation Instructions: Important information Additional information concerning gas Old appliances are not worthless cookers: rubbish. Valuable raw materials can be reclaimed by recycling old appliances. When installing gas hotplates, comply Before disposing of your old appliance, with the relevant national statutory render it unusable. -
Page 9: Prior To Installation
Prior to installation Exhaust-air mode mind.60 mind. 45 684-1086 mind. mind. The exhaust air is discharged upwards This can be achieved if combustion air can through a ventilation shaft or directly flow through non-lockable openings, e.g. in through the outside wall into the open. doors, windows and via the air- intake/exhaust-air wall box or by other Exhaust air should neither be directed... - Page 10 Prior to installation For operating in exhaust-air mode, a Flat ducts must have an internal cross- one-way flap should be mounted inside the section that equates to that of round extractor hood unless there is already one pipes. fitted in the outlet duct or wall ventilation There should be no sharp bends.
-
Page 11: Electrical Connection
Prior to installation Electrical connection Circulating-air mode This is what you have to do: 1. Connect the green and yellow (Earth) With activated carbon filter if exhaust-air mode is not possible. wire to the terminal in the plug marked ‘E’ or with the symbol ( ), or coloured green or green and yellow. -
Page 12: Installation
Installation This extractor hood is intended to be Note: Take into account any special mounted onto the kitchen wall. accessories that are going to be fitted. 1. Remove the grease filter (refer to 5. Attach the 2 enclosed spacers to the Operating Instructions). - Page 13 Installation 08. Screw in the two lower hexagon head 11. Remove the protective film from the cap screws. two flue ducts. Before the 4 screws are tightened Take care not to damage the down, align the extractor hood properly. stainless steel surfaces which are susceptible to scratches etc.
- Page 14 Notes...
- Page 15 LZ51350 361047 90 cm: LZ50960 60 cm: LZ50660...
- Page 16 9000 018 621 Siemens-Electrogeräte GmbH Printed in Germany 0704 Es.
