• The warranty becomes invalid if the product is installed by someone other than a profes-
sional authorized by Samsung Electronics.
• A Samsung Electronics service center can provide details.

Tilt Angle and Rotation

1

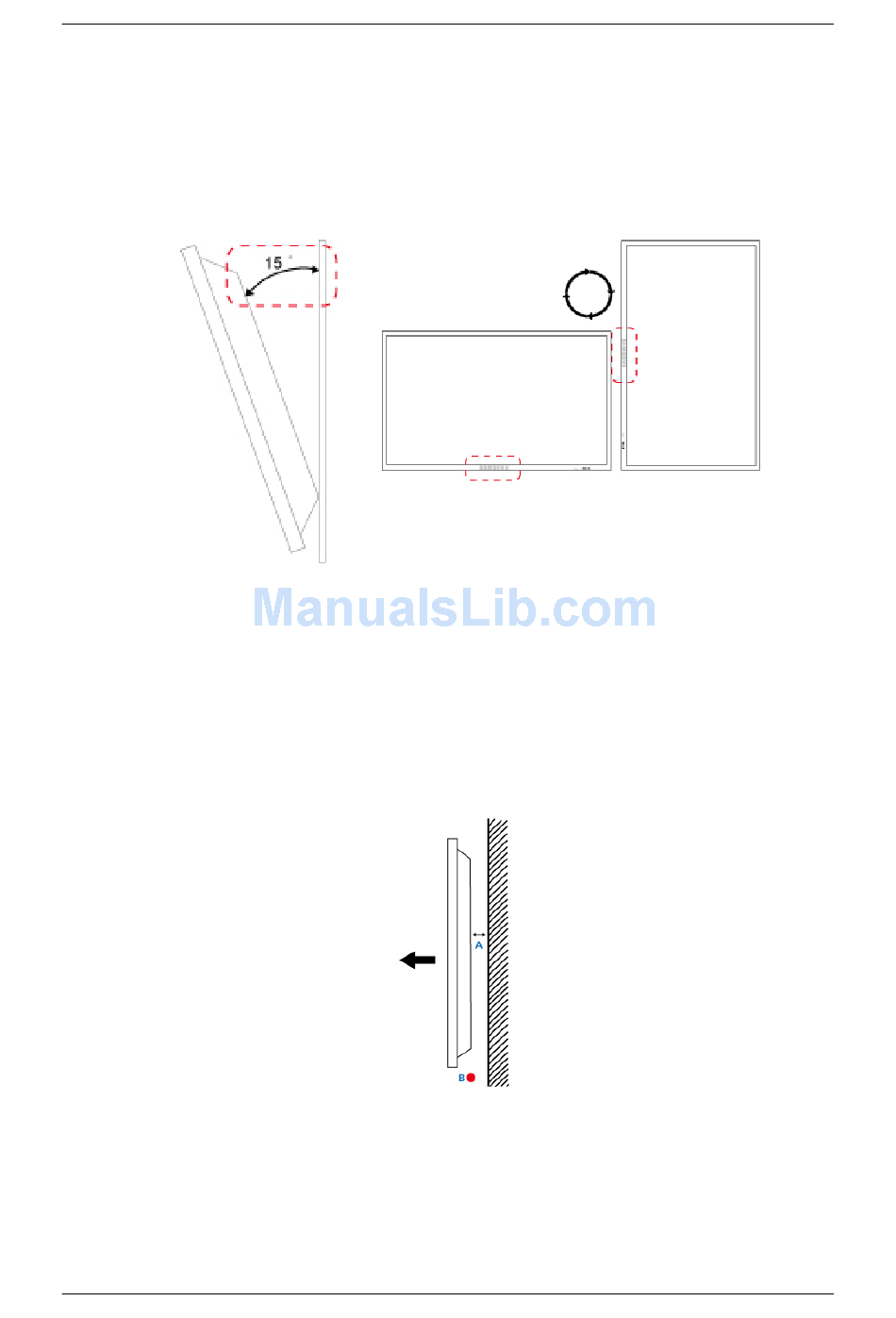

1. The product can be tilted up to 15 degrees from a vertical wall.
2. To use the product in portrait mode, rotate it clockwise so that the LED indicator is at the
bottom.
Ventilation requirement
1. Vertical wall mount condition
<Side view>
A : min. 40 mm
B: Ambient temperature Measuring point <35!
• When installing the product onto a vertical wall, be sure there is a 40 mm space or more
behind the product for ventilation, as shown above, and maintain the ambient temperature
at 35! or lower.
