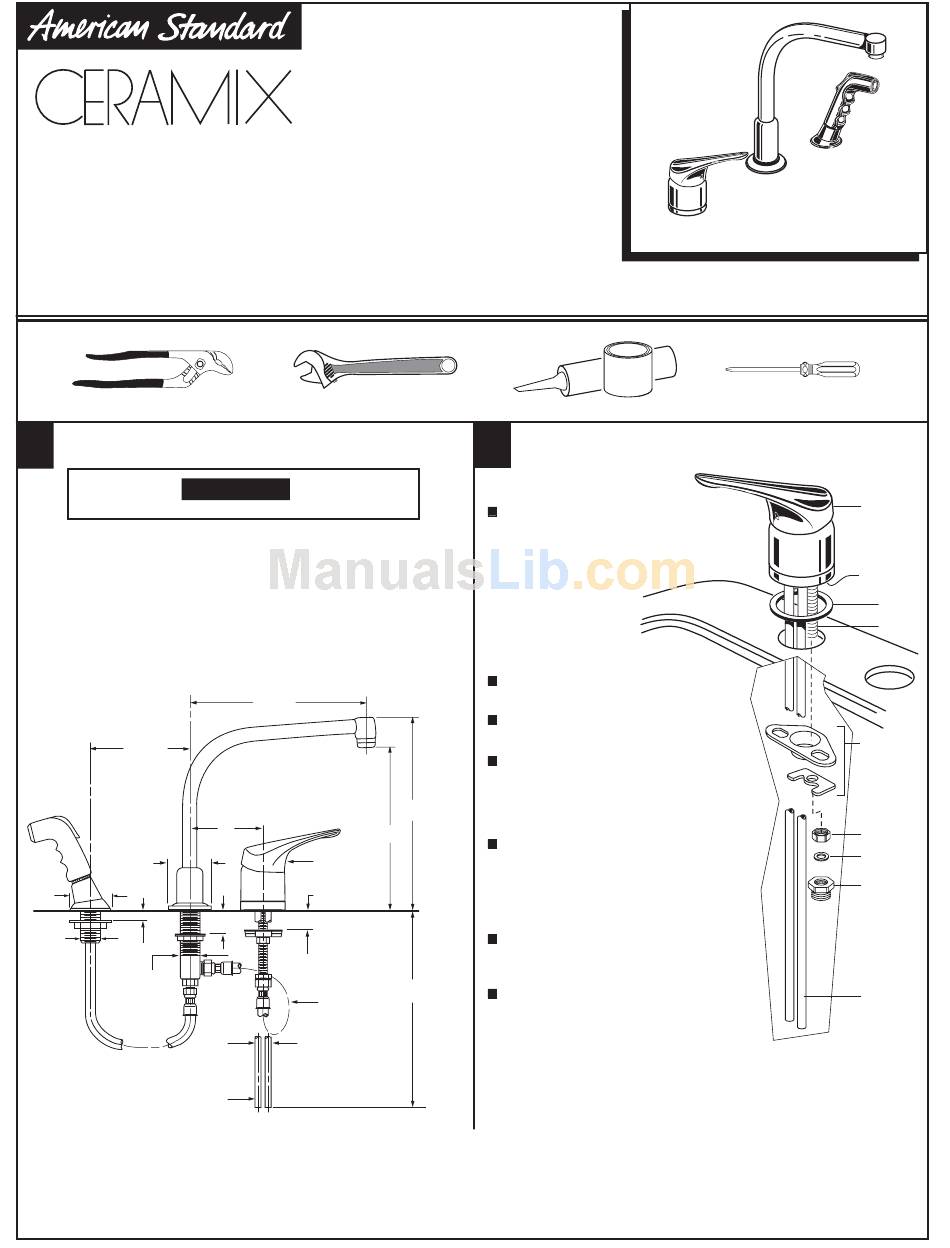

American Standard Ceramix 2021.831 Installation Instructions

KITCHEN FAUCETS
HI-FLOW SPOUT
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
TOOLS REQUIRED
Channel Locks
1
FAUCET INSTALLATION
CAUTION
Turn off hot and cold water supplies before beginning.
This faucet permits an interchangeable mounting of
each integral component -- spout, valve, and hand spray--
to suit the particular installation requirements.
Before starting installation, place each component
loosely into the holes of the kitchen sink to select the
most desirable arrangement.
ROUGHING-IN
DIMENSIONS
12" MAX
2-3/16
DIA
2 DIA.
1-1/16 MAX
27/32
DIA.
1-1/8 DIA
3/8 OD COPPER
BENDABLE
T M
Adjustable Wrench
9-9/16
12
8-9/16
MAX
VALVE
1-1/4 MIN DIA
MTG HOLE
MTG SURFACE
1-1/4 MAX 1-3/4 MAX
C/L OF
FLEXIBLE HOSE
TO SPOUT
HOT COLD
Installation
Instructions
2021.831
Plumbers' Putty or Caulking
2
VALVE INSTALLATION
Remove VALVE NIPPLE (1),
SEAL WASHER (2), LOCKNUT (3)
and MOUNTING ASSEMBLY (4) from
threaded STUD (5) of valve.
Insert supply TUBES (6) and threaded
STUD (5) through hole in sink.
Make sure black RUBBER RING (7)
is properly seated in recess of base.
Orient valve so that threaded STUD (5)
is centrally located towards the rear of
sink, then assemble MOUNTING
ASSEMBLY (4) and thread LOCKNUT (3)
10
onto STUD (5) from underside of sink.
Hand tighten LOCKNUT (3) and check
that rotation of HANDLE (8) from HOT
to COLD is centered. Secure valve
position by tightening LOCKNUT (3)
firmly (spread TUBES (6) for better
access to LOCKNUT (3).
Bend TUBES (6) to meet supplies. Use
palm of hand to support TUBES (6)
while bending to avoid kinking.
13-7/8 Attach VALVE NIPPLE (1) with SEAL
WASHER (2) to threaded STUD (5).
