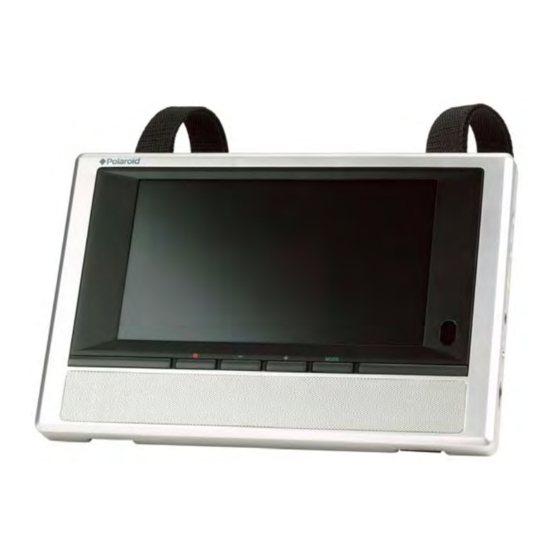

Polaroid PDM-2737 User Manual

7” portable dvd player extra screen

Hide thumbs Also See for PDM-2737:

User manual (42 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the PDM-2737 and is the answer not in the manual?

Questions and answers

Summary of Contents for Polaroid PDM-2737

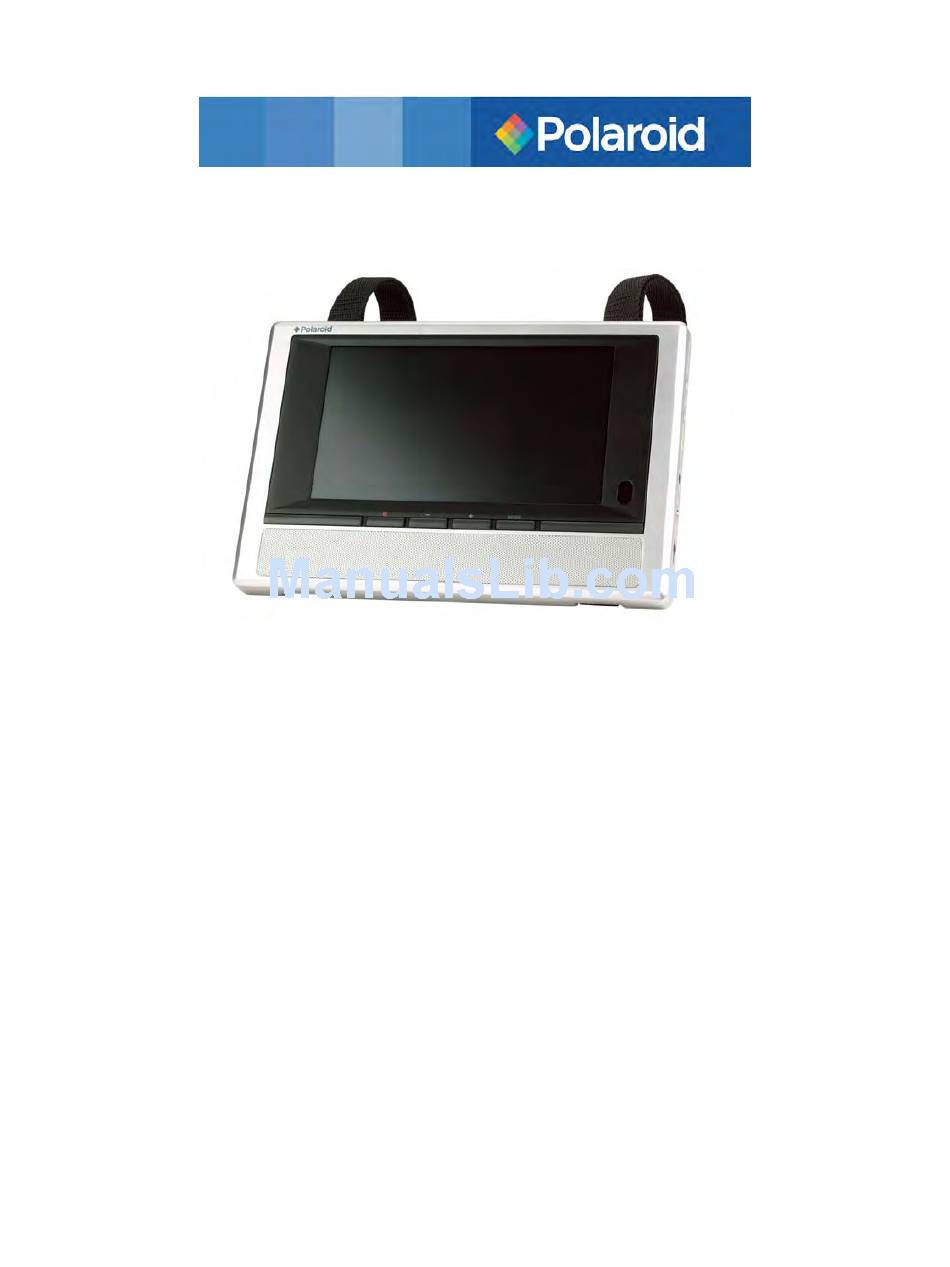

Page 1 7” Portable DVD Player Extra Screen PDM-2737 User Manual 20060109...
Page 2 Important Safety Important Safety Instructions Instructions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
Page 3: Important Safety Instructions
1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Maintain well ventilated conditions around the product, Do not put product on bed, sofa or anything that blocks ventilation.
Page 4: Table Of Contents
Contents ………………...…………………………………….2 Important Safety Instructions …………………………………...………………….5 View of Front Panel ……...……………………………………………….6 View of Side Panel ……...……………………………………………….7 System Connection ……………………………………………………….8 Power Supply Preparation …………………………………………………….….9 Rechargeable Battery ……………………………………...………………10 Troubleshooting ……………………………………………..……….11 Specifications...
Page 5: View Of Front Panel
POWER button Press to access to or exit from the standby mode. -/+ button Press to adjust the value of brightness and color. MODE button Press to change the brightness and color level, press and hold for 1-2 seconds to change the aspect ratio.
Page 6: View Of Side Panel
View of Side Panel Volume Control Used to adjust the volume of the headphone and speaker. Headphone Jack Used to connect headphones for private listening. When the headphones are connected to this jack, the speaker will be turned off automatically. Audio Input Jack Used for audio input.
Page 7: Connecting To Headphones
Connect to Master DVD player Make sure that the master DVD player, slave LCD screen and any other electrical equipment are off before connection. Connect the AC adapter to the slave LCD screen and connect the slave LCD screen with the master DVD player using power supply cord to supply power to the master DVD player.
Page 8: Power Supply Preparation
Power Supply Preparation Using the AC Adapter Connect AC adapter to the jack marked DC 9.5V IN on the right side of the slave LCD screen in, as shown below. Plug the two-prong end of the power cord into a grounded electrical outlet. Note: Turn player's power off before unplugging.
Page 9: Charging The Battery Pack
Rechargeable Battery The extra screen can also be used to charge the rechargeable battery. Charge the battery fully before initial use. Charging time is normally about 5 hours. If the battery will not be used for a long period of time, charge the battery fully before storage. The attaching, detaching and notice of the rechargeable battery are the same with those of the portable DVD player.
Page 10: Troubleshooting
Troubleshooting SYMPTOM - Make sure system connection is correct. There is no sound. - Make sure the speakers are turned on. - Make sure the audio source is correct. - Make sure LCD screen is on and in correct video mode. There is no picture.
Page 11: Specifications
Weight DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE For service, support and warranty information, visit www.polaroid.com or in the US call 1-866-289-5168, in Canada call 1-866-301-7922 and in Mexico call 01-800-400-2443. "Polaroid" and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA.
