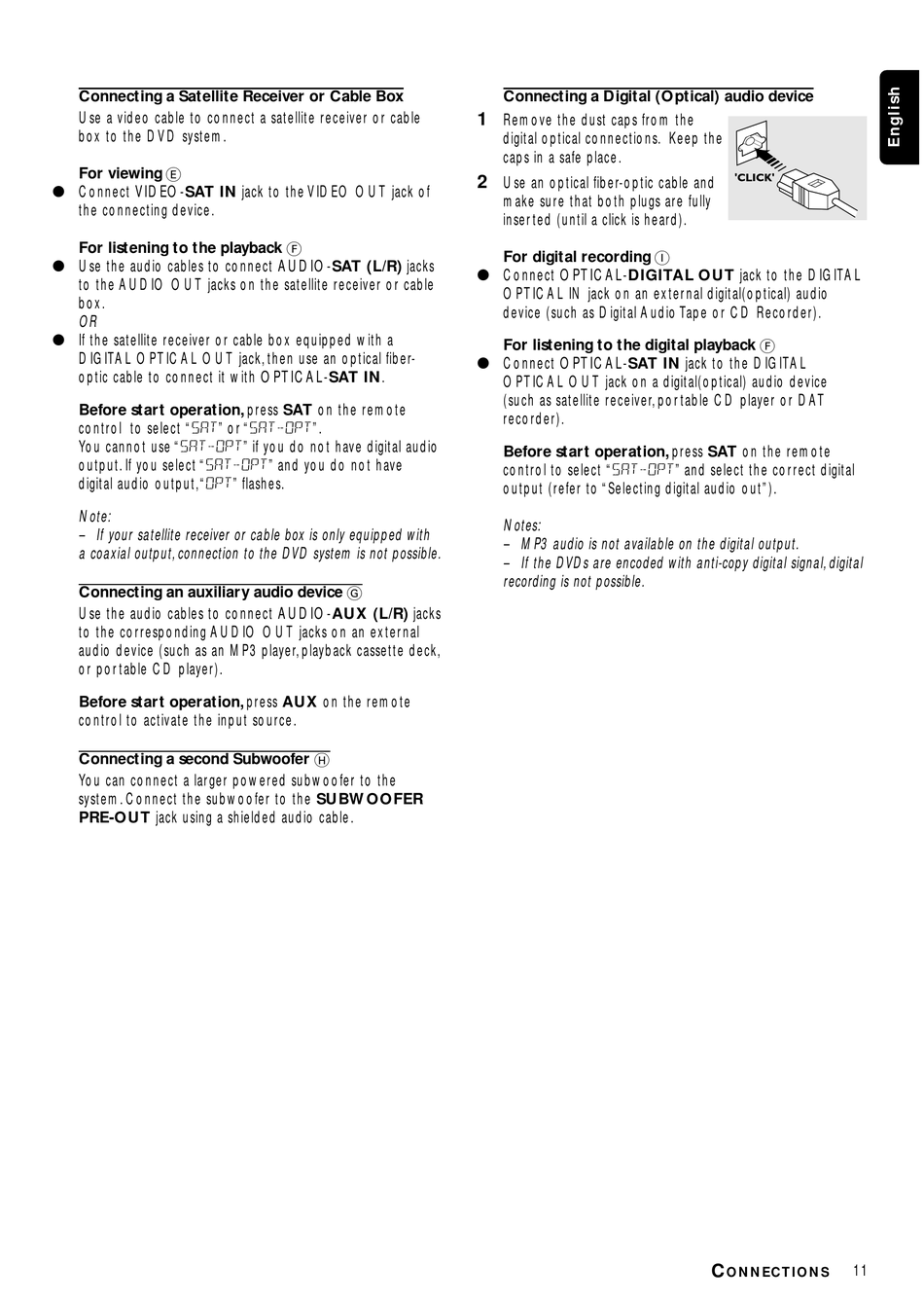

Connecting a Satellite Receiver or Cable Box

Use a video cable to connect a satellite receiver or cable
box to the DVD system.
For viewing
Connect VIDEO-SAT IN jack to the VIDEO OUT jack of
the connecting device.
For listening to the playback
Use the audio cables to connect AUDIO-SAT (L/R) jacks
to the AUDIO OUT jacks on the satellite receiver or cable
box.
OR
If the satellite receiver or cable box equipped with a
DIGITAL OPTICAL OUT jack, then use an optical fiber-
optic cable to connect it with OPTICAL-SAT IN.
Before start operation, press SAT on the remote
control to select "SAT" or "SAT-OPT".
You cannot use "SAT-OPT" if you do not have digital audio
output. If you select "SAT-OPT" and you do not have
digital audio output, "OPT" flashes.
Note:
– If your satellite receiver or cable box is only equipped with
a coaxial output, connection to the DVD system is not possible.

Connecting an auxiliary audio device

Use the audio cables to connect AUDIO-AUX (L/R) jacks
to the corresponding AUDIO OUT jacks on an external
audio device (such as an MP3 player, playback cassette deck,
or portable CD player).
Before start operation, press AUX on the remote
control to activate the input source.

Connecting a second Subwoofer

You can connect a larger powered subwoofer to the
system. Connect the subwoofer to the SUBWOOFER
PRE-OUT jack using a shielded audio cable.

Connecting a Digital (Optical) audio device

1
Remove the dust caps from the
digital optical connections. Keep the
caps in a safe place.
2
Use an optical fiber-optic cable and
make sure that both plugs are fully
inserted (until a click is heard).
For digital recording
Connect OPTICAL-DIGITAL OUT jack to the DIGITAL
OPTICAL IN jack on an external digital(optical) audio
device (such as Digital Audio Tape or CD Recorder).
For listening to the digital playback
Connect OPTICAL-SAT IN jack to the DIGITAL
OPTICAL OUT jack on a digital(optical) audio device
(such as satellite receiver, portable CD player or DAT
recorder).
Before start operation, press SAT on the remote
control to select "SAT-OPT" and select the correct digital
output (refer to "Selecting digital audio out").
Notes:
– MP3 audio is not available on the digital output.
– If the DVDs are encoded with anti-copy digital signal, digital
recording is not possible.
