Connections
IMPORTANT!
– Before connecting the AC power cord to the
wall outlet, ensure that all other connections have
been made.
– Never make or change any connections with
the power switched on.
– The type plate is located at the rear of the
system.

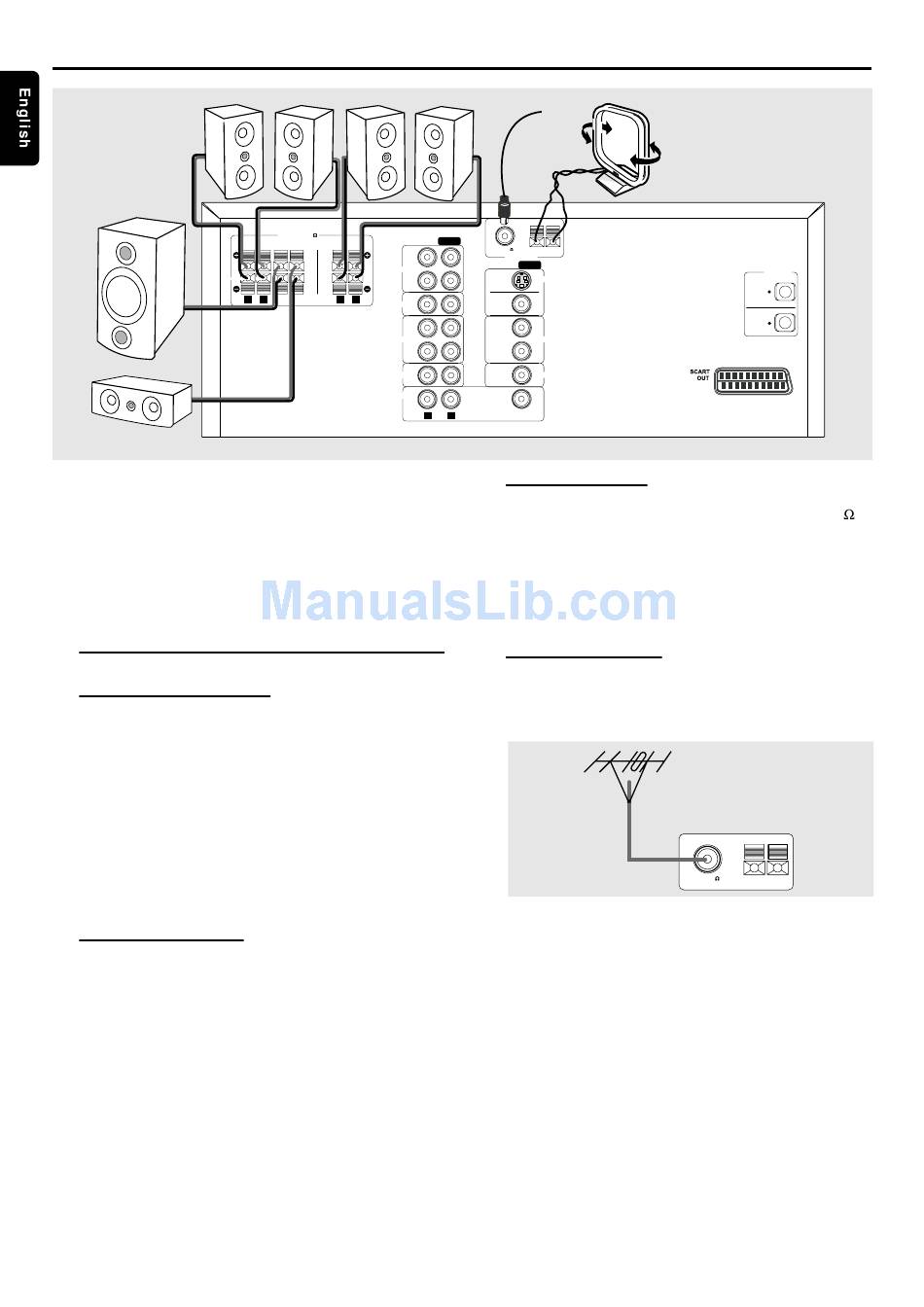

Step 1: Connecting antennas
MW Indoor Loop Antenna
The supplied high-performance MW loop antenna is
sufficient for good reception in most areas.
1
Connect the loop antenna's wires to MW and GND.
2
Place the antenna in a location (for example, on a shelf or
window frame) that gives the best reception.
Note:
– Keep the antenna as far away as possible from the entire
system, speaker cables, and the power cable to prevent
unwanted noise.
MW Outdoor Antenna
If the supplied MW loop antenna does not deliver sufficient
reception, use an outdoor MW antenna (not supplied).
Use an insulated wire more than 5m long. Strip one end,
and connect that end to MW.
String the antenna wire outdoors or indoors near a
window. For better reception, connect the GND terminal
to a reliable ground.
C
8
ONNECTIONS
SPEAKERS 6
SUB
FRONT
SURROUND
WOOFER CENTER
OUT
CDR
IN
R
L
R
L
TV IN
OUT
VCR
IN
SAT
AUX
AUDIO
FM (75 )
GND
MW
ANTENNA
VIDEO
S-VIDEO
DVD
OUT
MONITOR
OUT
OUT
VCR
IN
SAT
IN
SUB
WOOFER
PRE-OUT
L
R
FM Indoor Antenna
Connect the supplied FM antenna to the FM (75
jack. Move the antenna in various directions until the
clearest signal is received.
Note:
– Keep the antenna as far away as possible from the TV, VCR
or any radiation source to prevent unwanted noise.
FM Outdoor Antenna
For better FM reception, use a 75 ohm coaxial cable
(not supplied) to connect the system to an outdoor FM
antenna as shown.
OPTICAL
DIGITAL
OUT
SAT
IN
)
FM (75 )
GND
MW
