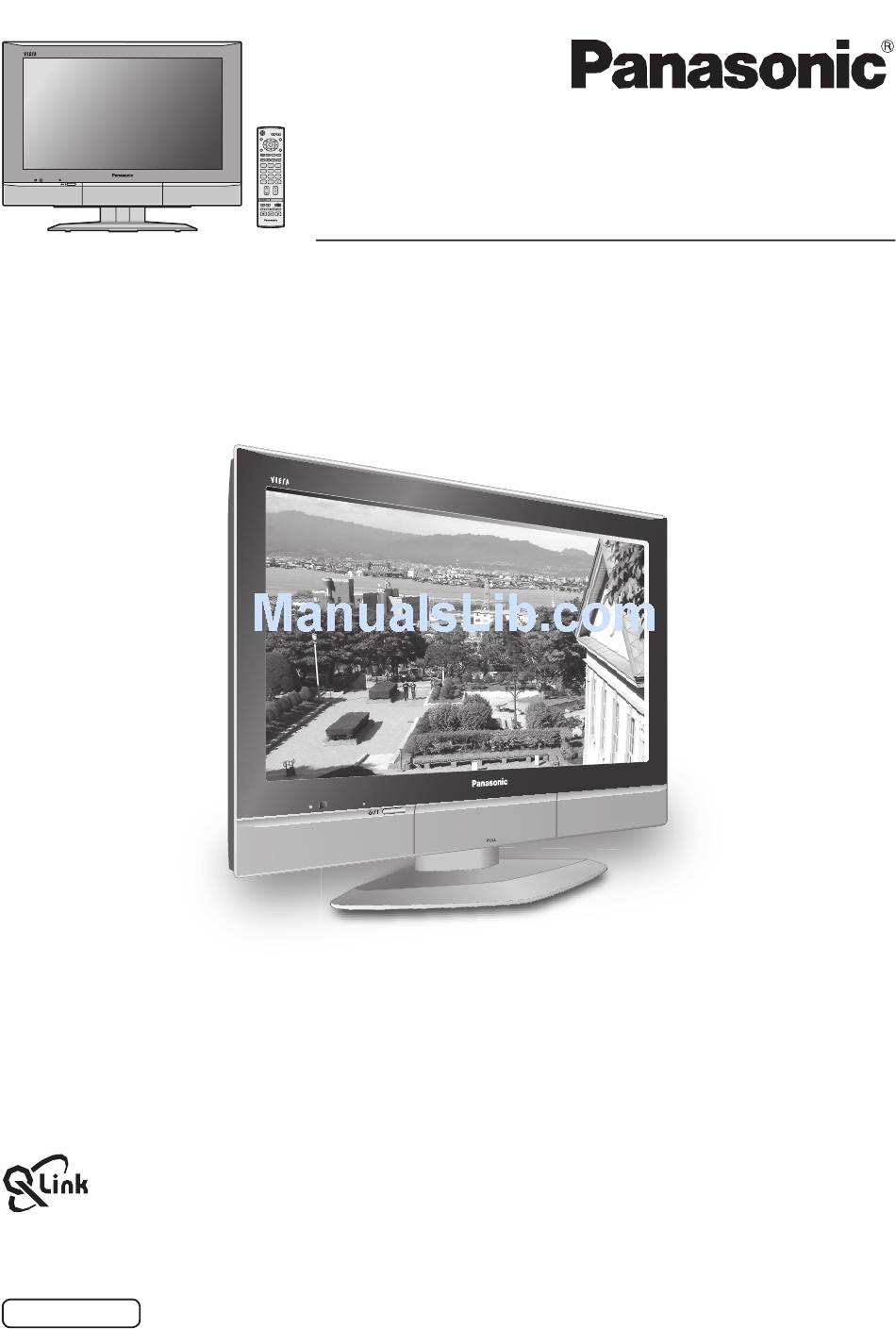

Operating Instructions Wide LCD TV PULL TX-26LX50F Model No. TX-32LX50F The illustration shown is an image. Please read these instructions before operating your set and retain them for future reference. English TQB0E0120U-1... -
Page 2: Table Of Contents
Welcome Dear Panasonic Customer, We hope that you have many years of enjoyment from your new TV. The Quick Start Guide section at the be gin ning of this instruction book will allow you to use the TV as quickly as possible. We recommend that you then read the complete instruction book, and keep it to refer to as you explore the range of advanced features that this LCD TV offers. -
Page 3: Warnings And Precautions
• This type of LCD panel damage, is not an operating defect, table cloths and curtains. and as such is not covered by the Panasonic warranty. Fitting remote control batteries “R6 (UM3)” size Replace the cover. -
Page 4: Cable Cover Removal And Fi Tting
Cable cover removal and fi tting Removal 1. Push down hooks and pull the cover slightly towards yourself to disengage the claws (at 3 points). 2. Slowly pull out in the downward direction. Fitting 1. Insert the claws (at 3 points) at the bottom end. 2. -
Page 5: Quick Start Guide
Quick Start Guide Connection and setting up options Please ensure that the unit is disconnected from the mains RF cable before attaching or disconnecting any leads. (Not supplied) SET TOP BOX COMPONENT Scart cables (Not supplied) AUDIO VIDEO S-VIDEO VIDEO VIDEO S-VIDEO VIDEO... - Page 6 Quick Start Guide Select your country. For Belgium, Switzerland and E.Eu, select Land the desired language. Deutschland Österreich France Italia If you wish to perform manual tuning, press España Portugal Nederland the Green button. Danmark Sverige Norge See page 16. Suomi Green Belgien...
-
Page 7: Basic Controls: Front Panel And Remote Control
Basic controls: front panel and remote control On / Off switch STR (Normalization store) Headphones jack AV3 terminals Used to store tuning and other function settings. (see page 24) (see page 24) F (Function select) TV/AV button (see page 24) Displays the On Screen Display functions, use repeatedly to select from the available functions - Increases or decreases the programme position by one. -
Page 8: Using The On Screen Displays
Using the On Screen Displays Many features available on this TV can be accessed via the On Screen Display menu system. Use the remote control as shown below to access and adjust features as desired. MENU The MENU button is used to open the main menus and also to return to the previous menu. -
Page 9: Picture Menu
Picture menu MENU Press the MENU button. Move to choose Picture menu. Access Picture menu. Move to choose menu option. Adjust chosen option or access chosen menu. EXIT Press the EXIT button at any time to go back to watching TV. Viewing mode The Viewing mode menu allows you to select four different Main menu... -
Page 10: Sound Menu
Sound menu MENU Press the MENU button. Move to choose Sound menu. Access Sound menu. Move to choose menu option. Adjust chosen option or access chosen menu. EXIT Press the EXIT button at any time to go back to watching TV. Press the OK button after having adjusted some features to store the new settings as the default (replacing the factory setting). -
Page 11: Setup Menu
Setup menu MENU Press the MENU button. Move to choose Setup menu. Access Setup menu. Move to choose menu option. Adjust chosen option or access chosen menu. EXIT Press the EXIT button at any time to go back to watching TV. Q-Link Allows you to select which AV terminal is to be used for data Main menu... -
Page 12: Tuning Menu - Overview
Tuning menu – overview MENU Press the MENU button. Move to choose Setup menu. Access Setup menu. Move to choose Tuning menu. Access Tuning menu. Move to choose menu option. Adjust chosen option or access chosen menu. EXIT Press the EXIT button at any time to go back to watching TV. Press the OK button after having adjusted some features to store the new settings as the default (replacing the factory setting). -
Page 13: Tuning Menu - Programme Edit
Tuning menu – Programme edit MENU Press the MENU button. Move to choose Setup menu. Access Setup menu. Move to choose Tuning menu. Access Tuning menu. Move to choose Programme edit. Access Programme edit. Move to choose programme position (e.g., Prog. 3). Make required change, e.g., moving a programme channel (see the relevant procedure below). -
Page 14: Renaming A Programme Channel
Tuning menu – Programme edit Renaming a programme channel Move to the Name column. Programme edit Prog. Chan. Name Lock CH44 Choose the new character. The box at the bottom of the screen shows CH51 CH41 the character currently selected. CH47 CH37 ABCDEFGHIJKLMNOPQRST... -
Page 15: Tuning Menu - Auto Setup
Tuning menu – Auto setup Auto setup automatically retunes your TV. This feature is useful if, e.g., you move house and wish to retune your TV to receive the local stations. MENU Press the MENU button. Move to choose Setup menu. Access Setup menu. -
Page 16: Tuning Menu - Manual Tuning
Tuning menu – Manual tuning It is possible to retune individual programme positions: MENU Press the MENU button. Move to choose Setup menu. Access Setup menu. Move to choose Tuning menu. Access Tuning menu. Move to choose Manual tuning. Access Manual tuning. Select the programme position to be tuned. -
Page 17: Q-Link
Q-Link Q-Link allows the television to communicate with a compatible VCR or DVD Recorder. For Q-Link communication to work, the TV must be connected to a recording device with the “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK” logo using a “fully wired” Scart cable between the AV2 / AV4 terminal of the television and the appropriate terminal on your VCR or DVD Recorder. -
Page 18: Aspect Controls
Green through the eight aspect options. Panasonic Auto Panasonic Auto determines the best aspect ra tio to use to fi ll your screen. It does this using a four step process to determine if the picture being viewed is WIDE a widescreen picture. - Page 19 Aspect Controls 16 : 9 16 : 9 16:9 will display a true 16:9 (anamorphic) picture with no aspect distortions. 16 : 9 14 : 9 14 : 9 14:9 will display a 14:9 picture at its standard 14:9 size without any stretching.
-
Page 20: Vcr / Dvd Operation
VCR / DVD operation The Remote Control is capable of operating some functions of selected Panasonic VCRs and DVD (Digital Versatile Disc) equipment. Some VCR and DVD equipment have different functions, so to ensure compatibility please refer to the equipment’s instruction book or consult your dealer for details. -
Page 21: Teletext Operation
Teletext operation • Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected is transmitting Teletext. • Pressing the MENU button whilst in Teletext operation will display the contrast function with a cyan bar, press the left and right cursor buttons to alter the setting as required. - Page 22 Teletext operation It is not possible to change the programme position when in News fl ash, Update or Sub Coded Page Access operation. Favourite Page (F.P.) Stores a favourite page in memory for instant recall. To store such a page, the TV must be in List mode, and the programme position must be from 1 - 25.
-
Page 23: Still
Teletext operation Alternatively, if you know which sub page you require, press the MENU button (to display special functions) followed by the Blue button; T**** will be displayed where the page number is normally found. Enter desired sub page number before the T**** disappears. e.g., to select page 6 enter 0, 0, 0 and 6. -
Page 24: Audio / Video Connections
Audio / Video connections It is possible to connect a variety of additional equipment to this TV. The following pages detail how to connect external equipment to the front and rear of the TV. Once your equipment is connected, use the following procedure to view the input: TV/AV Press the TV/AV button. -
Page 25: How To Connect The Audio Output Terminals
Audio / Video connections To bundle the cables with the clamper To tighten: To loosen: Pull Keep the Pull knob pressed. Note: Do not put the RF cable and the mains lead together to avoid noise. How to connect the Audio Output terminals COMPONENT AUDIO Amplifi... -
Page 26: Troubleshooting
If there is a problem with your TV please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of the TV). -
Page 27: Maintenance
Maintenance To clean this set, wipe with a soft, dry cloth. Neutral If the surfaces are extremely dirty, use a soft cloth dipped in soap-and-water solution or a detergent weak detergent solution. • Use eyeglass cleaner to remove stubborn dirt from the LCD. •... -
Page 28: Specifi Cations
Specifi cations TX-26LX50F TX-32LX50F Power Source AC 220-240 V, 50 / 60 Hz Power Consumption Average use : 126 W Average use : 161 W Standby condition : 0.4 W Standby condition : 0.4 W Wide XGA (1,366 × 768 pixels) 16:9 aspect ratio LCD panel 575.8 mm (W) ×... - Page 32 Warranty Service purposes. Model Number Serial Number Matsushita Electric Industrial Co., Ltd. Web Site : http://www.panasonic.co.jp/global/ 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Printed in Czech Republic...
