- Page 1 Installation Instructions / Warranty Steel 35115801 Steel 35116801...
-
Page 2: Technical Information

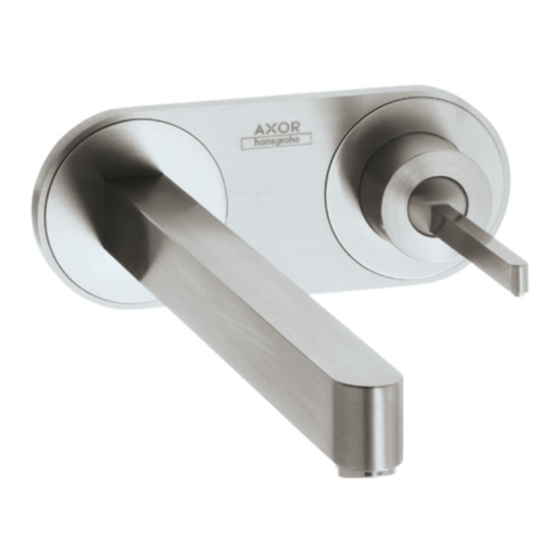

Wall Mounted Single-Handle Lav Set with Base Plate Wall Mounted Single-Handle Lav Set 35115801 Technical Information Max. flow rate: Max. water pressure: Recommended pressure: Test pressure: Max. hot water temperature: Recommended hot water temp.: *Know and follow all applicable local codes when setting the tem- perature on the water heater. -
Page 3: Installation
Installation Turn the water off at the supply before beginning this installation. Remove the covers from the plaster shields (1). Trim the plaster shields so that they extend 1/16” outside the surface of the finished wall (). Seal the wall around the plaster shields with waterproof sealant. - Page 4 Install the cup washers and springs in the rough. Install the cartridge assembly. Push the handle over the cartridge stem. Tighten the handle screw with a mm Allen wrench. If you are installing 35115801, turn to page 5. If you are installing 35116801, turn to page 9.
- Page 5 Model 35115801 only: Measure the distance between the wall surface and the end of the handle (x). If x is between 3 1/4” and 3 5/8”, select the two “A” sleeves (1 1/4”). If x is between 3 4/8” - 4”, select the two “B” sleeves (7/8”).
- Page 6 Connect the fixation nuts to the sleeves. Measure the distance from the rough to the outside surface of the finished wall (X) (1). Add 1 3/4” to X. Cut the spout connecting thread so that it is X + 1 3/4” long (). Wrap the connecting thread with Teflon tape.
- Page 7 Push the baseplate against the wall (1). Thread the sleeves into the rough (). Tighten the retaining nuts using the service key. Lightly lubricate the o-rings on the spout and handle escutcheons with the enclosed lubricant (1). Push the escutcheons onto the baseplate ().
- Page 8 Push the spout over the connecting thread (1). Tighten the set screw with a 3 mm Allen wrench (). Install the handle flange (3).
- Page 9 Model 35116801 only: Measure the distance between the wall surface and the end of the handle (x). If x is between 3 1/4” and 3 5/8”, select the “A” sleeve (1 1/4”). If x is between 3 5/8” - 4”, select the “B” sleeve (7/8”).
- Page 10 Push the sealing ring into the handle escutcheon (1). Install the handle escutcheon onto the sleeve (). Push the sleeve / handle escutcheon assembly into place over the handle (1). Tighten it by rotating it clockwise (). Push the flange over the handle.
- Page 11 Measure the distance from the rough to the out- side surface of the finished wall (X) (1). Add 1 3/4” to X. Cut the spout connecting thread so that it is X + 1 3/4” long (). Wrap the spout connecting thread with Teflon tape. Install the spout connecting thread.
-
Page 12: Replacement Parts
User Instructions Replacement Parts 35115801 Pivot the handle up to turn the water on, down to turn it off. Pivot the handle to the left for warmer water, to the right for cooler water. - Page 13 35116801 flange handle handle escutcheon spout escutcheon baseplate cartridge aerator spout anti-twist device connecting thread extension kit set screw 608800 3504800 61800 613800 67800 633000 *not included, purchase separately if 5386800 needed 78800 780000 730000 388000* 7660000 7601000 handle escutcheon 60800 spout escutcheon 610800...
-
Page 14: Limited Lifetime Consumer Warranty
Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. - Page 15 including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: Conditions, malfunctions or damage not resulting from defects in material or workmanship.
- Page 16 Hansgrohe, Inc. • 140 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 770-360-880 • Fax 770-360-887 www.hansgrohe-usa.com...
