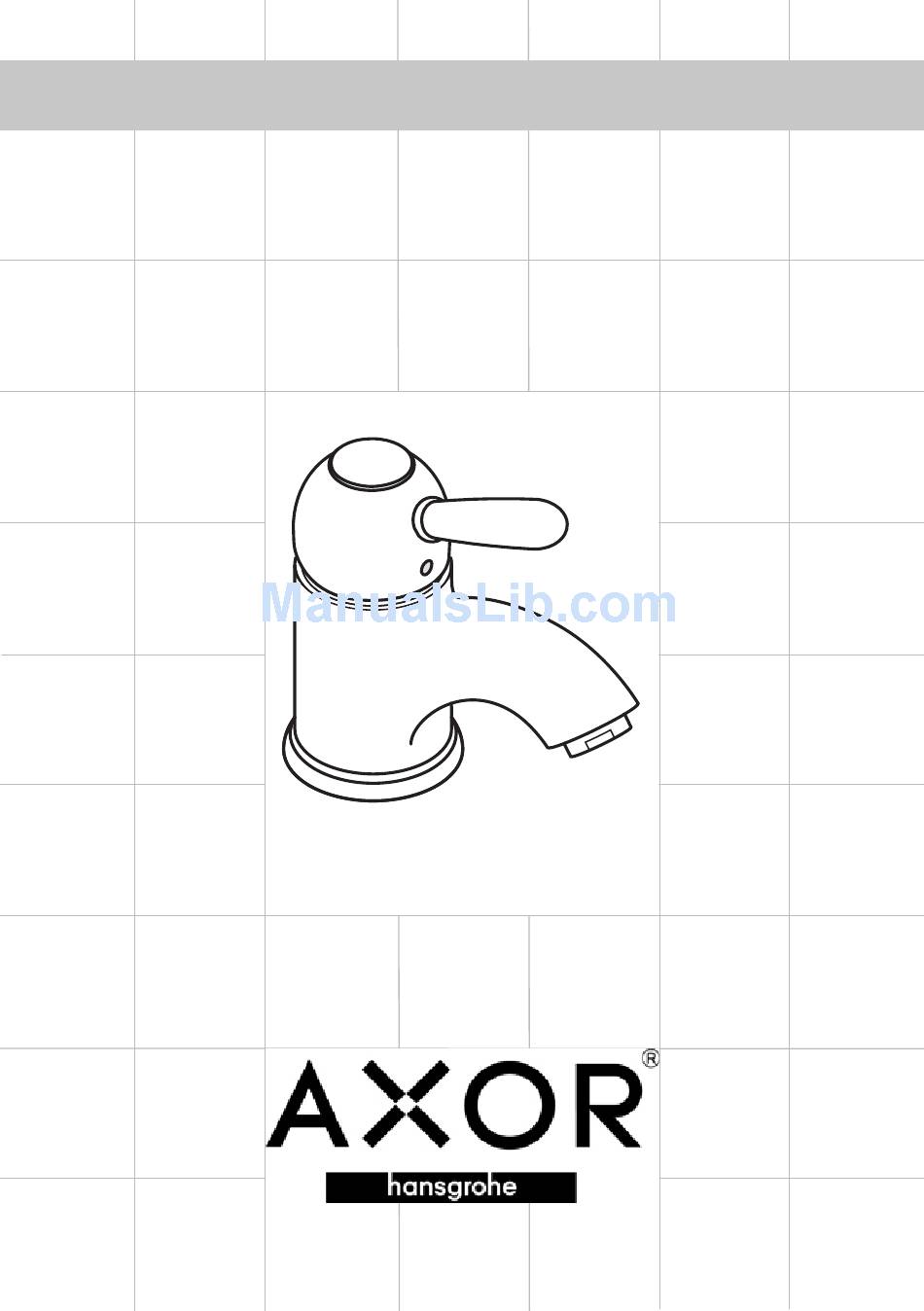

- Page 1 Installation Instructions / Warranty Axor Carlton 17010XX1...
-
Page 2: Technical Specification
Axor Carlton Single Control Lavatory Faucet 17010XX1 Installation Considerations • For best results, Hansgrohe recommends installation by a licensed professional plumber. • Large differences in pressure between the hot and cold supplies should be balanced. • The supply hoses on this faucet require supply stops with 3/8” compression fittings (not included). •... -
Page 3: Install The Faucet
Install the faucet Place the faucet and sealing ring on top of the mounting surface. Install the mounting flange over the stud. Thread the collar onto the stud until the mounting flange is firmly against the bottom of the mounting surface. Secure the supply lines to the stop valves with the 3/8”... -
Page 4: Install The Pop-Up Drain
Install the pop-up drain Remove the plunger assembly. Unscrew the drain outlet flange from the tee. plunger Unscrew the tailpiece from the tee. Wrap height adjuster the threads with two layers of Teflon tape and replace. flange Install the white, flexible sealing gasket to the flange. - Page 5 Re-set the High Temperature Limit Stop (optional) Close the drain OR cover it with a wash cloth. Use a 4 mm Allen wrench to push the screw cover into the handle. Retrieve the screw cover when the handle is removed. Use the 4mm Allen wrench to loosen the handle screw 4 complete revolutions.
-
Page 6: Troubleshooting
User Instructions • Push the handle up to turn the water on. • Pivot the handle to the left for hotter water, to the right for cooler water. • Push the handle down to turn the water off. Troubleshooting Replacement Parts... -
Page 7: Limited Lifetime Consumer Warranty
Cleaning Recommendation for Hansgrohe Products Modern sanitary faucetry and shower fixtures consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain points when cleaning: Cleaning materials for faucets and shower products: Acids are necessary ingredients of cleaning materials for removing lime. - Page 8 limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Interaktiv and Retroaktiv products, and (ii) for 5 years, with respect to AXOR, ShowerPower and Pharo products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: Conditions, malfunctions or damage not resulting from defects in material or workmanship.
