22 inch wide screen tft lcd monitor

Advertisement

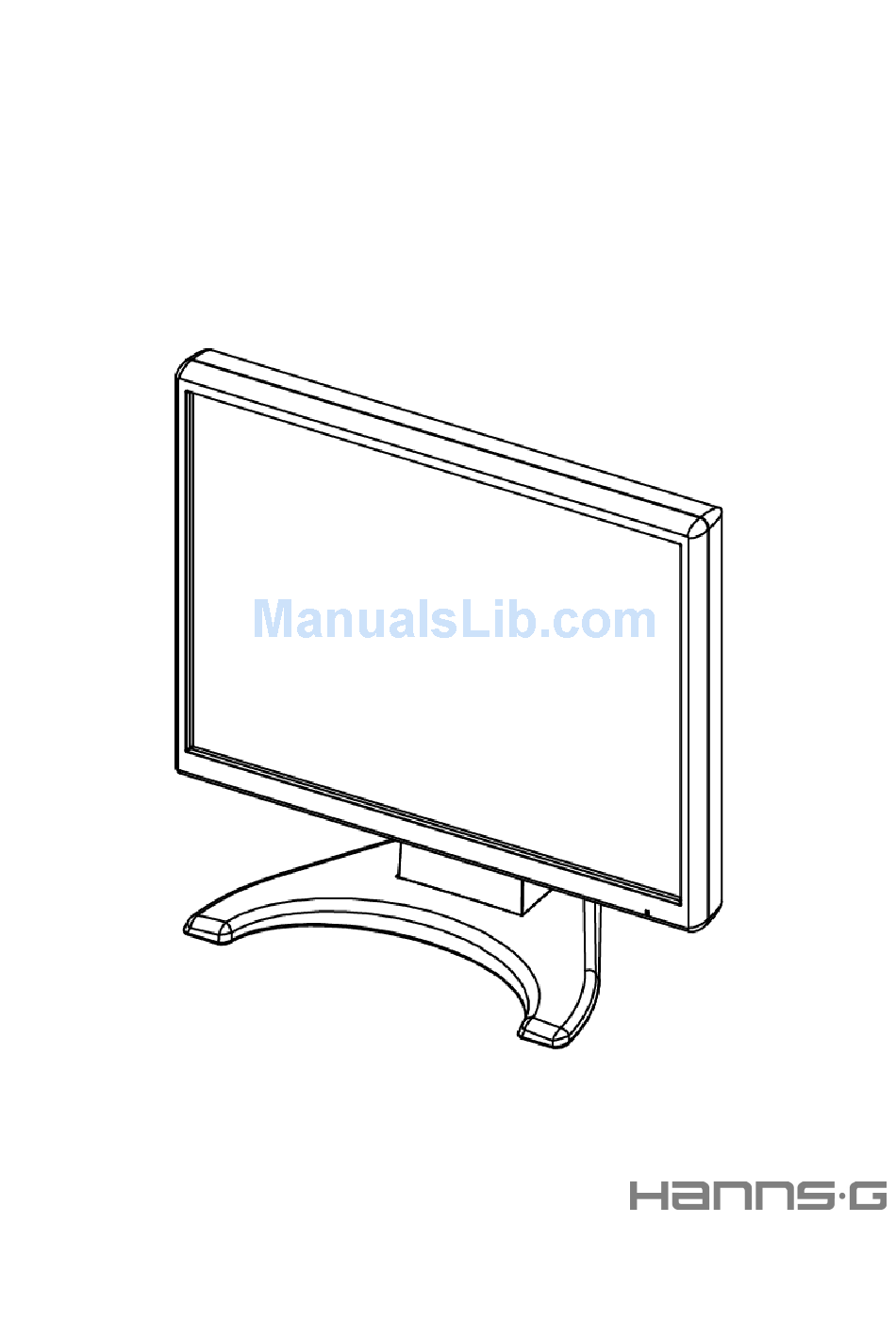

22 inch Wide Screen

TFT LCD Monitor

HW222/HW223
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HW222 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hanns.G HW222

  • Page 1: Tft Lcd Monitor

    22 inch Wide Screen TFT LCD Monitor HW222/HW223 USER’S MANUAL...
  • Page 2 User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 Some of the features of the TCO’03 Display requirements: Ergonomics Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy Energy-saving mode after a certain time –...
  • Page 4: Recycling Information

    User’s Manual Recycling Information We, Hanns.G, care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels.
  • Page 5: Table Of Contents

    TABLE OF CONTENTS SAFETY NOTICE ...6 PRECAUTIONS ...6 SPECIAL NOTES ON LCD MONITORS...7 BEFORE YOU OPERATE THE MONITOR ...8 FEATURES ...8 CHECKING THE CONTENTS OF THE PACKAGE...8 INSTALLATION INSTRUCTIONS ...9 POWER...9 MAKING CONNECTIONS ...10 ADJUSTING THE VIEWING ANGLE...12 OPERATING INSTRUCTIONS...13 GENERAL INSTRUCTIONS ...13 CONTROL PANEL BUTTON FUNCTIONS ...14 HOW TO ADJUST A SETTING...15...
  • Page 6: Safety Notice

    User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
  • Page 7: Special Notes On Lcd Monitors

    SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
  • Page 8: Before You Operate The Monitor

    User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 22” Wide screen TFT Color LCD Monitor Crisp, Clear Display for Windows Recommended Resolutions: 1680 X 1050 @60Hz ® EPA ENERGY STAR Ergonomic Design Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: Screen Power Cord...
  • Page 9: Installation Instructions

    INSTALLATION INSTRUCTIONS INSTALLATION: 1. Align the monitor with the opening in the base. 2. Note that the longer section of the base points forward. 3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly.
  • Page 10: Making Connections

    USB Port (Type B) Line In Input VGA Input Memory Card Slots (for HW222 only) Slot 1: Memory Stick (MS/ MS Pro) Card Slot 2: Secure Digital (SD) Card / Multi Media (MMC) Card Slot 3: Compact Flash I/ II (CFI/ CFII) Card...
  • Page 11 CONNECTING TO A VCR/VCD/DVD/HDVR/SET-TOP BOX Connect A/V devices via the DVI and Audio Line in connectors at the back of the monitor. 1. Connect the Y (green) connector on the DVI-I to YPbPr adapter cable to the Y output connector on the A/V device. 2.
  • Page 12: Adjusting The Viewing Angle

    User’s Manual ADJUSTING THE VIEWING ANGLE 1. For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. 2. Hold the stand so you do not topple the monitor when you change the monitor’s angle. 3.
  • Page 13: Operating Instructions

    OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 5). By changing these settings, the picture can be adjusted to your personal preferences. The power cord should be connected.
  • Page 14: Control Panel Button Functions

    User’s Manual CONTROL PANEL BUTTON FUNCTIONS Power Button: Press this button to switch ON/OFF of monitor’s power. Power Indicator: Green — Power On mode. Orange — Power Saving mode. MENU / ENTER: 1. Activates the OSD menu or confirms adjustments to settings. 2.
  • Page 15: How To Adjust A Setting

    HOW TO ADJUST A SETTING Function DESCRIPTION Select the「Brightness」option on the「Main Menu」. Enter the option by Brightness pressing the 「Menu」 button again, and adjust the level. Select the「Contrast」option on the「Main Menu」. Enter the option by Contrast pressing the 「Menu」 button again, and adjust the level. Select the「Image Setting」on the 「Main Menu」, and then enter the Image Setting option.
  • Page 16 User’s Manual Select the 「V-position」 option to shift the screen image up or down. Enter V-position the option and adjust the level. Select the 「Clock Adjustment」option to reduce the vertical flicker of Clock Adjustment characters on the screen. Enter the option and adjust the level. Select the「Phase Adjustment」option to reduce the horizontal flicker of Phase Adjustment...
  • Page 17 Exit Exit the OSD menu function. FUNCTION DESCRIPTION Select the 「OSD H-Position」 option to adjust the horizontal position of the H-Position OSD. Enter the option and adjust the level. Select the「OSD V-Position」option to adjust the vertical position of the V-position OSD.
  • Page 18: Plug And Play

    User’s Manual Factory Reset Select the「Factory Reset」option to reset to the monitor’s default setting. This will erase the current settings. Enter the option and select On or Off. Exit Exit the OSD menu function. PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD.
  • Page 19: Technical Support (Faq)

    TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION Power LED is not on No Plug & Play Picture is dim, too bright or fuzzy Picture bounces or a wave pattern is present in the picture The power LED is ON (orange) but there’s no video or no picture.
  • Page 20: Error Message & Possible Solutions

    User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.
  • Page 21: Horizontal Frequency (Khz)

    1280×1024 @72Hz 1280×1024 @75Hz 1360×768 @60Hz 1440×900 @60Hz 1440×900 @60Hz 1440×900 @75Hz 1600×1200@60Hz 1600×1200@65Hz 1600×1200@70Hz 1600×1200@75Hz 1680×1050@60Hz 1680×1050@60Hz 1680×1050@75Hz ***DVI input source: Does not support modes 36,37,38,41. (YPbPr mode) MODE RESOLUTION 720x480i @60Hz 720x480p @60Hz 720x576i @50Hz 720x576p @50Hz 1280×720p @50Hz 1280×720p @60Hz 1920×1080i @60Hz 1920×1080p @60Hz...
  • Page 22: Appendix

    User’s Manual APPENDIX SPECIFICATIONS Driving system LCD Panel Size Pixel pitch Video H-Frequency V-Frequency Display Colors Maximum Screen Size Max. Resolution Plug & Play ON Mode ® EPA ENERGY STAR Power Saving Mode ≤2W OFF Mode Input Terminal Output Terminal Power Source Environmental Considerations...

This manual is also suitable for:

Hw223Hw223dpb
