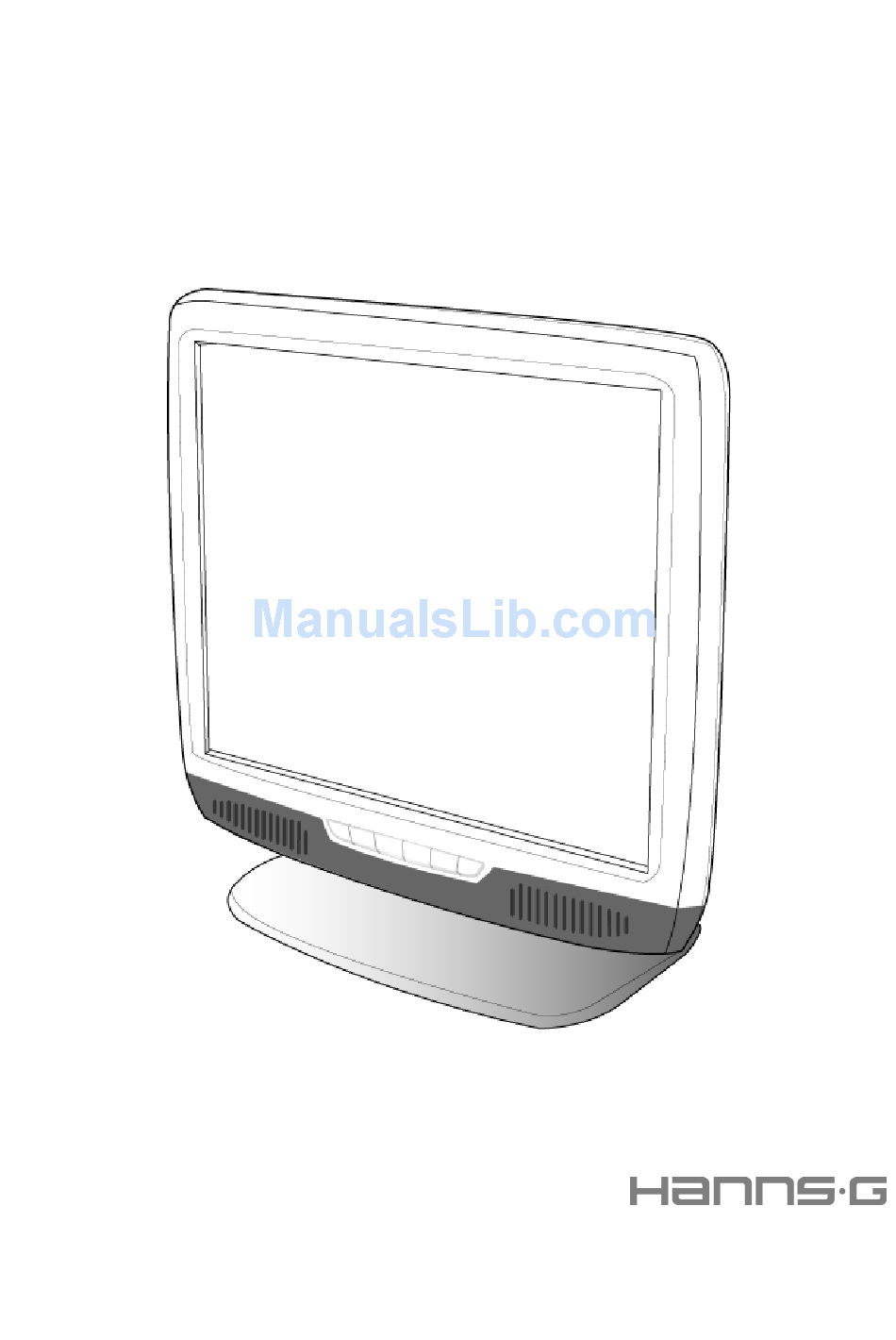

- Page 1 17 inch TFT LCD Monitor USER’S MANUAL...
- Page 2 User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 User’s Manual TCO’99 (FOR OPTIONAL MODEL) Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
- Page 4 User’s Manual reduction of electrical and magnetical fields as well as work load and visual ergonomics. Below you will find a brief summary of the ecological requirements met by this product. The complete ecological criteria document can be found at TCO Development’s website http://www.tcodevelopment.com or may be ordered from: TCO Development SE-114 94 STOCKHOLM, Sweden...
- Page 5 User’s Manual and that is needs to be taken care of at end of life according to following information /procedure: http://www.hellmann-pm.de...
-
Page 6: Table Of Contents
User’s Manual SAFETY NOTICE ... 7 PRECAUTIONS ... 7 SPECIAL NOTES ON LCD MONITORS ... 8 BEFORE YOU OPERATE THE MONITOR ... 9 FEATURES ... 9 CHECKING THE CONTENTS OF THE PACKAGE ... 9 INSTALLATION INSTRUCTIONS ... 10 POWER... 10 CONTROLS AND CONNECTORS... -
Page 7: Safety Notice
User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 8: Special Notes On Lcd Monitors
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn • off the Power Switch and then turn it on again to make sure the flicker disappears. You may find slightly uneven brightness on the screen depending on the desktop pattern •... -
Page 9: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR FEATURES 43.2cm(17”) TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions: 1280 X 1024 @60Hz • ® EPA ENERGY STAR • Ergonomic Design • Space Saving, Compact Case Design • CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: Screen Power Cord... -
Page 10: Installation Instructions
User’s Manual INSTALLATION INSTRUCTIONS Install INSTALLATION: 1. Align the monitor with the opening in the base. 2. Note that the longer section of the base points forward. 3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly. -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS CABLE CONNECTIONS: Turn off your computer before performing the procedure below. 1. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2. Connect one end of the 24-pin DVI cable (Dual input mode optional) to the back of the monitor and connect the other end to the computer’s DVI port. -
Page 12: Adjusting The Viewing Angle
User’s Manual ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust • the monitor’s angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor’s angle. •... -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. The power cord should be connected. -
Page 14: Front Panel Control
User’s Manual FRONT PANEL CONTROL Power Button: • Press this button to switch ON/OFF of monitor’s power. Power Indicator: • Green — Power On mode. Orange — Off mode. MENU / ENTER: • 1. Active OSD menu or function adjust confirm or 2. -
Page 15: How To Adjust A Setting
User’s Manual HOW TO ADJUST A SETTING OSD Diagram OSD Description Brightness adjustment: Select the 「 Brightness 」 option on the 「 Main Menu 」 . Enter the option and adjust the level. Contrast adjustment: Select the 「Contrast」 option on the 「Main Menu」. - Page 16 User’s Manual OSD Diagram OSD Description Clock adjustment: Select the 「Clock Adjustment」option to reduce the vertical flicker of characters on the screen. Enter the option and adjust the level. Phase adjustment: Select the 「Phase Adjustment」option to reduce the horizontal flicker of characters on the screen.
- Page 17 User’s Manual OSD Diagram OSD Description How to set the OSD: Select 「OSD Setting」on the 「Main Menu」, and then enter the option. OSD horizontal adjustment: Select the 「OSD H-Position」option to adjust the horizontal position of the OSD. Enter the option and adjust the level. OSD vertical position adjustment: Select the 「OSD V-Position」option to adjust the vertical position of the OSD.
- Page 18 User’s Manual OSD Diagram OSD Description OSD color setting: Select the 「OSD Color」setting option to adjust the color of the OSD. Enter the option and adjust the level. Language: Select the 「Language」 option to change the language of the OSD. Enter the option and select a language.
-
Page 19: Plug And Play
OSD Diagram PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. -
Page 20: Technical Support (Faq)
User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL DEFECTIVE PROBLEM & QUESTION Power LED is not on No Plug & Play Picture is fuzzy Picture bounces or a wave pattern is present in the picture The power LED is ON (orange) but there’s no video or no picture. -
Page 21: Error Message & Possible Solution
ERROR MESSAGE & POSSIBLE SOLUTION CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. -
Page 22: Appendix
User’s Manual APPENDIX SPECIFICATIONS LCD Panel Input Display Colors Dot Clock Max. Resolution Plug & Play ® EPA ENERGY STAR Audio output Input Connector Maximum Screen Size Power Source Environmental Considerations Dimensions Weight (GW/NW) Regulatory Compliance ***The above specification is subject to actual panel specification and is subject to change without prior notice. -
Page 23: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT 15 - Pin Color Display Signal Cable: PIN NO. DESCRIPTION Green Blue Ground Ground R-Ground G-Ground B-Ground 24 - Pin Color Display Signal Cable: (Dual Input Mode) PIN NO. DESCRIPTION TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 Shield TMDS Data 4- TMDS Data 4+ DDC Clock...
