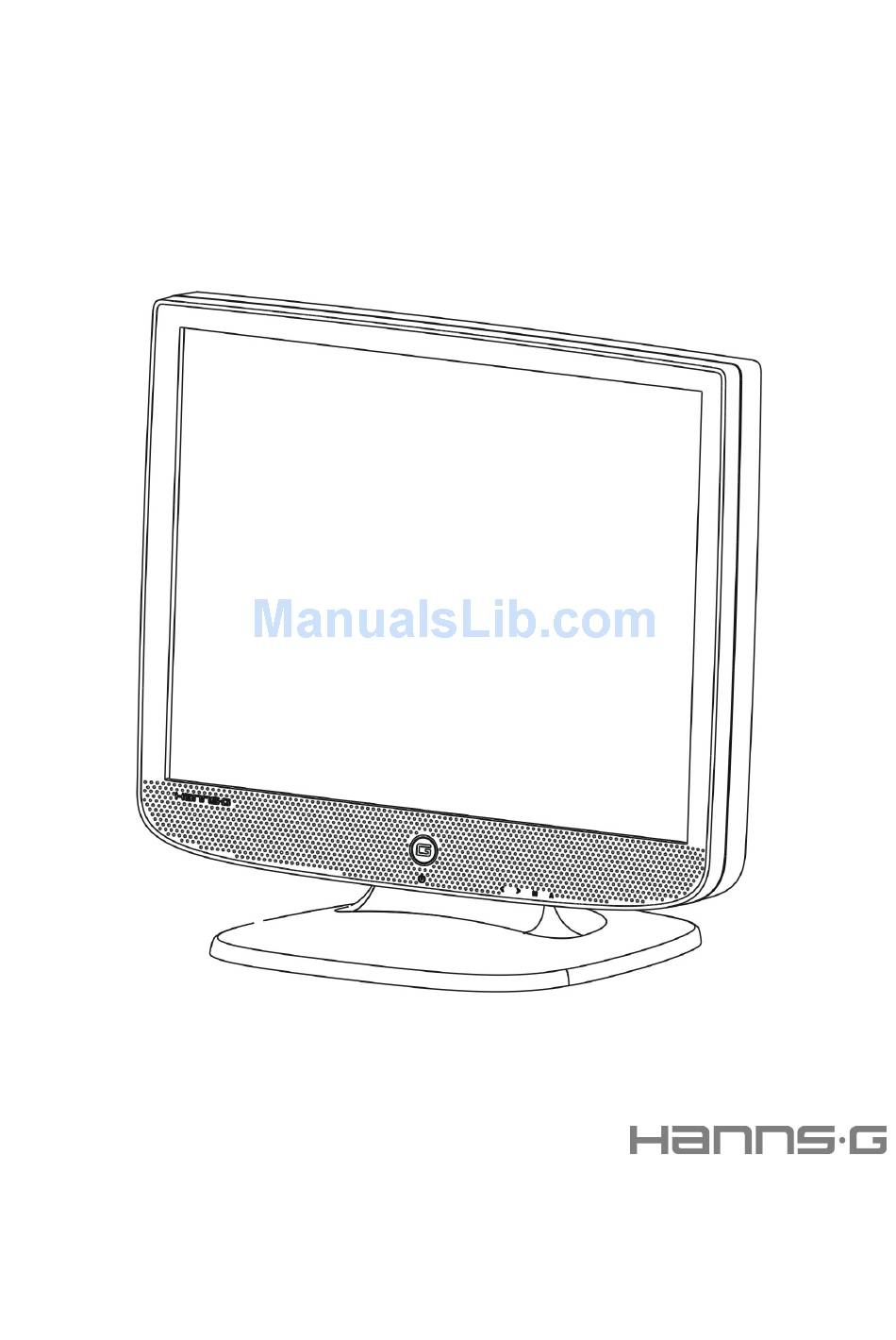

- Page 1 19 inch TFT LCD Monitor HQ191 USER’S MANUAL...
- Page 2 User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
SAFETY NOTICE ... 4 PRECAUTIONS ... 4 SPECIAL NOTES ON LCD MONITORS ... 5 BEFORE YOU OPERATE THE MONITOR ... 6 FEATURES ... 6 CHECKING THE CONTENTS OF THE PACKAGE ... 6 INSTALLATION INSTRUCTIONS ... 7 POWER... 7 CONTROLS AND CONNECTORS... 8 ADJUSTING THE VIEWING ANGLE ... -
Page 4: Safety Notice
• tub, swimming pool or in a wet basement. Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can • injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. -
Page 5: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn • off the Power Switch and then turn it on again to make sure the flicker disappears. -
Page 6: Before You Operate The Monitor
User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 19” TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions: 1280 X 1024 @60Hz • ® EPA ENERGY STAR • Ergonomic Design • Space Saving, Compact Case Design •... -
Page 7: Installation Instructions
1. Align the monitor with the opening in the base. 2. Note that the longer section of the base points forward. 3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly. -
Page 8: Controls And Connectors
CABLE CONNECTIONS: Turn off your computer before performing the procedure below. 1. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2. Connect one end of the 24-pin DVI-D cable (Dual input mode optional) to the back of the monitor and connect the other end to the computer’s DVI-D port. -
Page 9: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust • the monitor’s angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor’s angle. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. -
Page 11: Front Panel Control
(The Auto Adjustment function is used to optimized the H-Position, V-Position, Clock and Focus.) NOTES: Do not install the monitor in a location near heat sources such as radiators or air dusts, • or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock. -
Page 12: How To Adjust A Setting
User’s Manual HOW TO ADJUST A SETTING OSD Diagram OSD Description Brightness adjustment: Select the 「 Brightness 」 option on the 「 Main Menu 」 . Enter the option and adjust the level. Contrast adjustment: Select the 「Contrast」 option on the 「Main Menu」. - Page 13 OSD Diagram OSD Description Clock adjustment: Select the 「Clock Adjustment」option to reduce the vertical flicker of characters on the screen. Enter the option and adjust the level. Phase adjustment: Select the 「Phase Adjustment」option to reduce the horizontal flicker of characters on the screen.
- Page 14 User’s Manual OSD Diagram OSD Description How to set the OSD: Select 「OSD Setting」on the 「Main Menu」, and then enter the option. OSD horizontal adjustment: Select the 「OSD H-Position」option to adjust the horizontal position of the OSD. Enter the option and adjust the level. OSD vertical position adjustment: Select the 「OSD V-Position」option to adjust the vertical position of the OSD.
- Page 15 Select the 「Sharpness」option to adjust the sharpness of the display. Set the value from 0 to 6. DOS mode: Select the 「DOS mode」option to set the monitor for use with PC. Enter the option and select 720 × 400 or 640 × 400.
-
Page 16: Plug And Play
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 17: Technical Support (Faq)
*Computer Video Card should be snugly seated in its slot *Make sure monitor’s video cable is properly connected to the computer. *Inspect monitor’s video cable and make sure none of the pins are bent. *Make sure computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. -
Page 18: Error Message & Possible Solution
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTION CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. -
Page 19: Appendix
APPENDIX SPECIFICATIONS LCD Panel Input Display Colors Max. Resolution Plug & Play ® EPA ENERGY STAR Audio output Input Connector Maximum Screen Size Power Source Environmental Considerations Dimensions Weight (GW/NW) ***The above specification is subject to actual panel specification and is subject to change without prior notice. -
Page 20: Connector Pin Assignment
User’s Manual CONNECTOR PIN ASSIGNMENT 15 - Pin Color Display Signal Cable: PIN NO. DESCRIPTION Green Blue Ground Ground R-Ground G-Ground B-Ground 24 - Pin Color Display Signal Cable: (Dual Input Mode) PIN NO. DESCRIPTION TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 Shield TMDS Data 4- TMDS Data 4+...
