Operating lnstructions
Before using your air-conditioner, please
read this operating instructions carefully and
keep it for future reference.

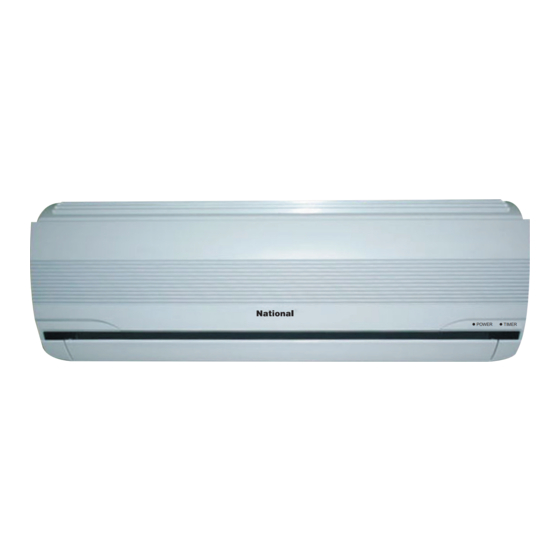

Split Type Room Air Conditioner
POWER
Indoor Unit Model: Outdoor Unit Model:
CS-SC9BKN
TIMER
CS-SC12BKN
MATSUSHITA AIR-CONDITIONING CORP.
XIECUN,ZHONGCUN TOWN,PANYU DISTRICT.
GUANGZHOU CITY ,GUANGDONG PROVINCE,CHINA
CU-SC9BKN5
CU-SC12BKN5
F563545
Advertisement
Table of Contents
Related Manuals for Panasonic CS-SC9BKN
Summary of Contents for Panasonic CS-SC9BKN
- Page 1 Operating lnstructions Split Type Room Air Conditioner Indoor Unit Model: Outdoor Unit Model: CS-SC9BKN CU-SC9BKN5 POWER TIMER CS-SC12BKN CU-SC12BKN5 Before using your air-conditioner, please MATSUSHITA AIR-CONDITIONING CORP. XIECUN,ZHONGCUN TOWN,PANYU DISTRICT. read this operating instructions carefully and GUANGZHOU CITY ,GUANGDONG PROVINCE,CHINA keep it for future reference.
-
Page 2: Table Of Contents
CONTENTS Operating Instructions: Safety Precautions ......................Indications of the Symbols and Signs Installation Instructions Operation Precautions Name of Each Part ......................Indoor Unit Outdoor Unit Remote control How to Operate ......................Automatic · Cooling · Soft Dry Air Circulation Operations ·... -
Page 3: Operating Instructions
Operating Instructions Safety Precautions Indications of the Symbols and Signs To prevent personal injury, injury to others and property damage, the following instructions must be followed. Warning : This sign warns of death or serious injury. Caution : This sign warns of injury or damage to property. This symbol (with a white background) denotes an action that is PROHIBITED. -
Page 4: Operation Precautions
Operation Precautions Warning Insert the power plug properly. Do not pull out the power plug Do not damage the power cord when the unit is operating. or use an unspecified power Heat generated by a loose power cord. plug could cause electric shock, Otherwise, electric shock or fire overheated or fire. - Page 5 Caution Do not remove the power plug If the unit is not in use for a long Unplug the power supply by pulling the cord. period of time, the power plug before cleaning the unit. must be removed. Pulling the power cord may The fan rotating at a high speed cause the wires overheated or Dust accumulates on the socket will...
-
Page 6: Name Of Each Part
Name of Each Part Indoor Unit Air Inlet Vent Intake Grille Power Supply Intake Grille Opener Vertical Airflow Air Outlet Vent Signal Receiver Direction Louver Air Filter Horizontal Airflow Direction Louver (manually adjusted) Operation Indicator P O W E R : Green (Operation) (Operation) -
Page 7: Remote Control
Remote control Signal Transmitter Display Panel hr DELAY OFF ON Room Temperature Setting Button TEMP OFF/ON Operation Button MODE Operation Mode Selection Button FAN SPEED OFF-Timer Button Fan Speed Selection Button ON-Timer Button TIMER AIR SWING Airflow Direction Control Button CANCEL Timer Cancellation Button RESET Button... -
Page 8: How To Operate
How to Operate Automatic · Cooling ·Soft Dry ·Air Circulation Operations Temp. Up Button Temp. Down Button OFF/ON Button Except Automatic Operation: 1. Each press of the button will SPEED change the temperature by one degree. SWING 2. The adjustable temperature TEMP OFF/ON range is between 16 –... - Page 9 Automatic Operation 1. Press operation selection MODE button, the cursor key point to AUTO 2. Press operation OFF/ON button, the operation lamp of the air conditioner will flash momentarily, and then lights up. Notes: 1. During Automatic Operation, the operation mode will be selected automatically in accordance with the room temperature.
-
Page 10: Setting The Timer
Setting the Timer Press ON to set the ON-TIMER . Each press of the button will change the setting time by an hour in the manner of 6, 7, 8..12, 1, 2..5. (The next time when you are going to do the timer setting again, you will see the previous set time appears in the display.) Keeping the button depressed will forward the... -
Page 11: Helpful Information
Helpful Information When the Remote Control Cannot be Used Button Turn off When the remote control cannot be used, Press this button once again to turn press this button will enable the air conditioner off the air conditioner. to operate in Automatic Mode. (The operation lamp goes off.) Remote Control Signal Receiving Sound ("Beep") 5 seconds... -
Page 12: Operation Hints
Operation Hints Adjust the room temperature appropriately. Adjust the airflow direction properly. Set the airflow direction louvers horizontally during Cooling operation Approximately 10% of the electricity cost can be saved will obtain a better cooling effect. if you set the temperature 1 C higher (Cooling Operation) than your desire temperature. -
Page 13: Care And Maintenance
Care and Maintenance Periodical cleaning and maintenance are required in order to maintain the air conditioner’s continuous excellent performance and save electricity. Before cleaning or servicing, switch off the power. Caution Do not get it wet to avoid electric shock. Avoid using water in any of the circumstances. -
Page 14: When Not Using The Air Conditioner For A Long Period
When Not Using the Air Conditioner for a Long Period Operate the air conditioner for 2 to 3 hours to dehumidify the indoor unit. To dry out moisture in the internal mechanisms Switch off the air conditioner and remove the power plug. Remove the batteries from the remote control. -
Page 15: Troubleshooting
Troubleshooting Normal Operations Is it okay? This is the answer. Wait a m o m e n t The air conditioner has This is to protect the air conditioner. It will been restarted but does start to operate after 3 minutes. not operate for 3 minutes. -
Page 16: Abnormal Operations
Abnormal Operations Has the circuit breaker been tripped? Has the power plug been removed from the The air conditioner cannot operate. wall outlet? Has the timer been set properly? Has the temperature been set appropriately? Is the air filter dirty? The air conditioner does not cold Is anything blocking the inlet or outlet vents effectively. - Page 17 WARNING 1) This appliance must be earthed. 2) If the supply cord is damaged or need to be replaced,it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 3) Remove power plug or disconnect from the mains before servicing this appliance.
- Page 18 The temperature difference is more than 8 C during Cooling operation. If the unit fulfils the above conditions, the unit is in normal Thermometer operation. Air outlet vent Product Specifications (References) Indoor Unit CS-SC9BKN CS-SC12BKN Model Outdoor Unit CU-SC9BKN5 CU-SC12BKN5 Power Single Phase 220V~230V, 50 Hz 2.50~2.55...
- Page 19 MATSUSHITA ELECTRIC INDUSTRIAL CO.,LTD F563545 Web site :http//www.panasonic.co.jp/global/ PRINTED IN CHINA P020601...
