Before connecting, operating or adjusting this product,
please read the instructions completely.
Please keep this manual for future reference.
Note:
"EB" on the packaging indicates the United Kingdom.
Operations in these instructions are described using
remote control, but you can do the operations with the
main unit if the controls are the same.
Your unit may not look exactly as illustrated.
Table of contents
Safety precautions ................................. 2
Caution for AC Mains Lead .................... 3
Placement of speakers ........................... 3
Getting started ........................................ 4
Overview of controls .............................. 6
Discs ........................................................ 7
FM radio ................................................... 8
DAB .......................................................... 9
Timer ........................................................ 12
Sound adjustment .................................. 13
External unit ............................................ 13
Troubleshooting guide ........................... 14
Maintenance ............................................ 14
Specifi cations ......................................... 15
EB
Operating Instructions
CD Stereo System
Model No.
SUPPLIED ACCESSORIES
SUPPLIED ACCESSORIES
Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking for
replacement parts. (As of January 2007)
1 x Remote control
(N2QAYB000146)
1 x FM antenna
(REXV0088)
2 x Remote control batteries
SC-PM4DB
1 x AC mains lead
(K2CT3CA00004)
1 x DAB "T" antenna
(N1EADY000001)
RQTV0212-B
Advertisement
Table of Contents
Related Manuals for Panasonic SC-PM4DB
Summary of Contents for Panasonic SC-PM4DB
-
Page 1: Table Of Contents

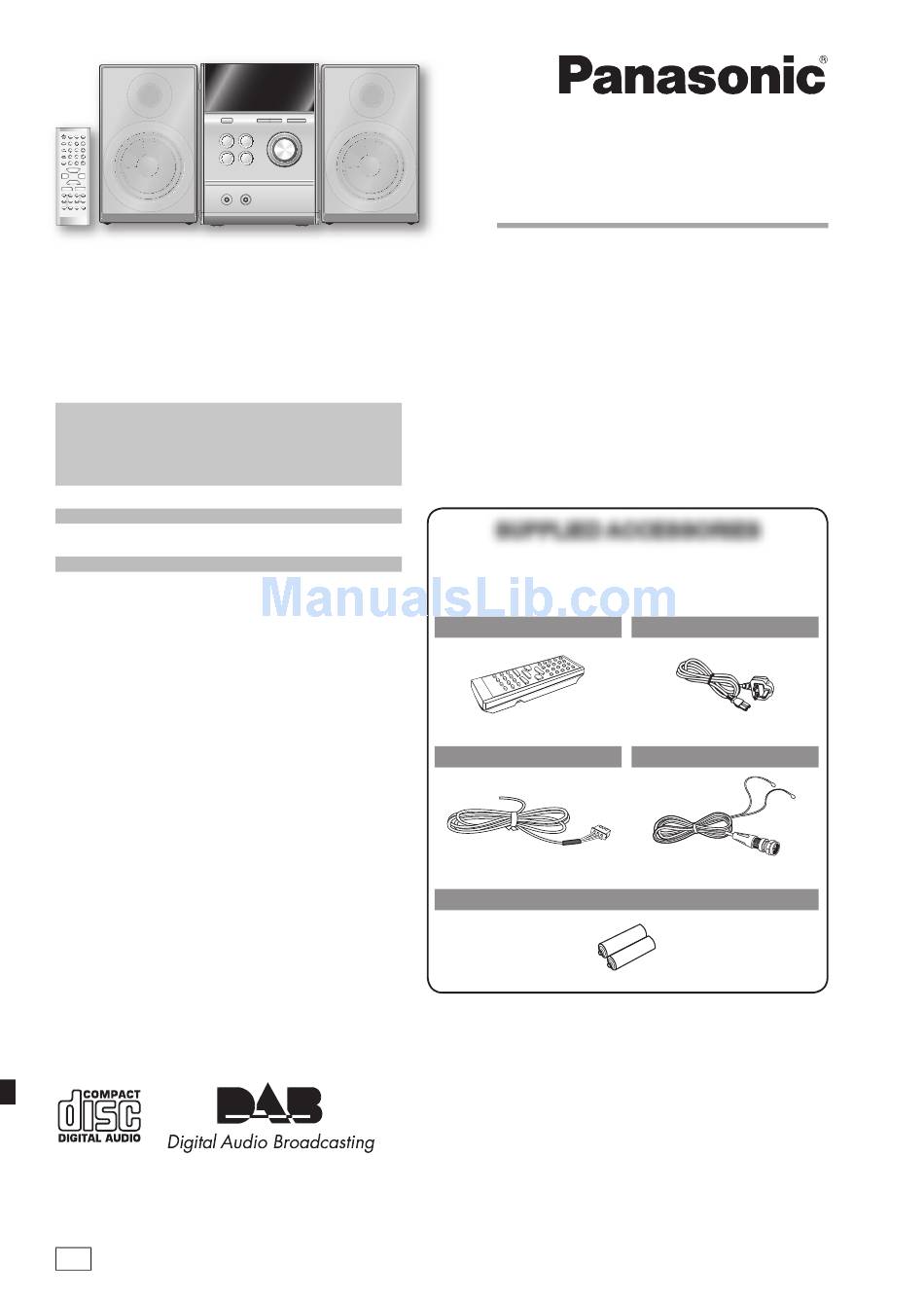

Operating Instructions CD Stereo System SC-PM4DB Model No. Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference. Note: “EB” on the packaging indicates the United Kingdom. Operations in these instructions are described using remote control, but you can do the operations with the main unit if the controls are the same. -
