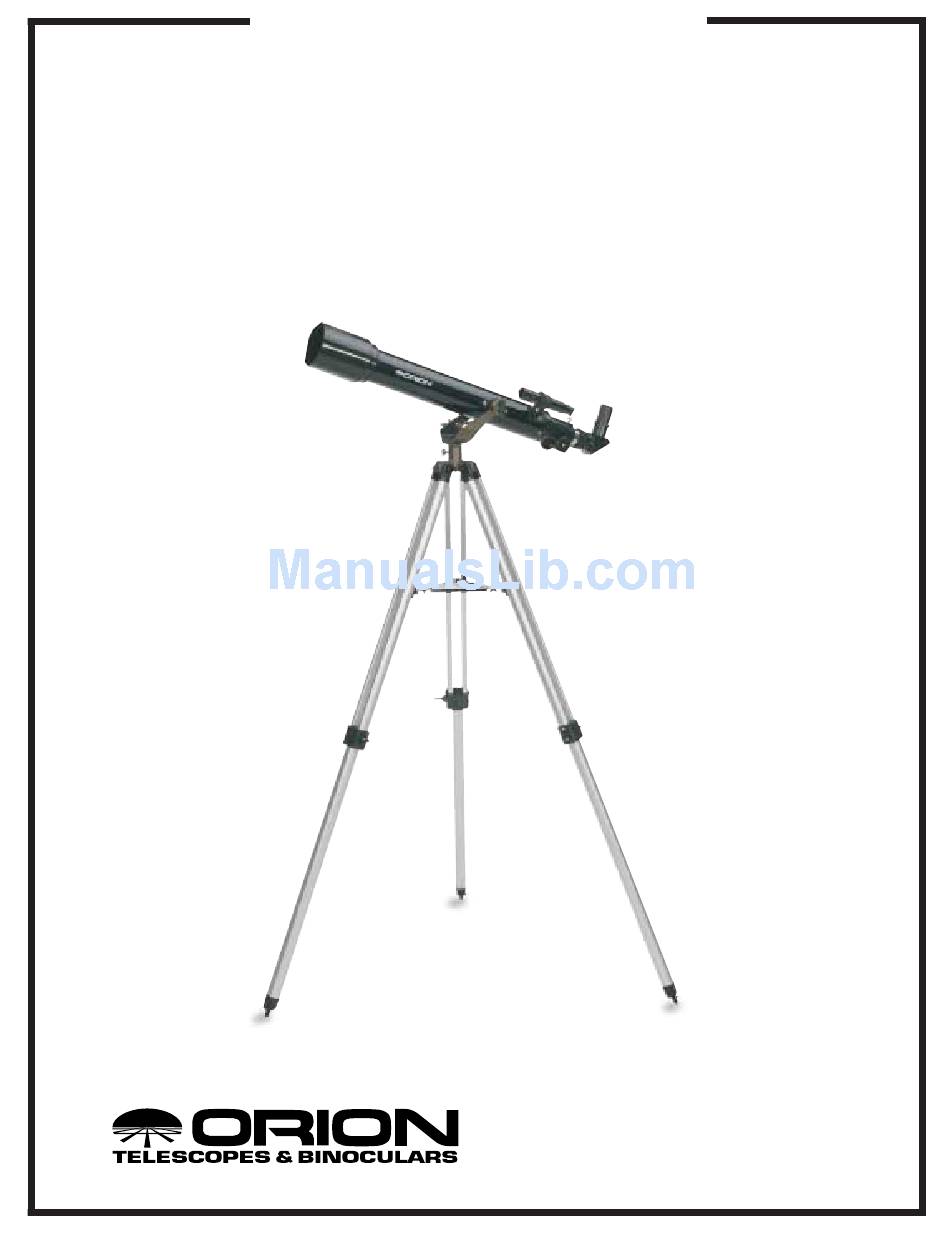

INSTRUCTION MANUAL

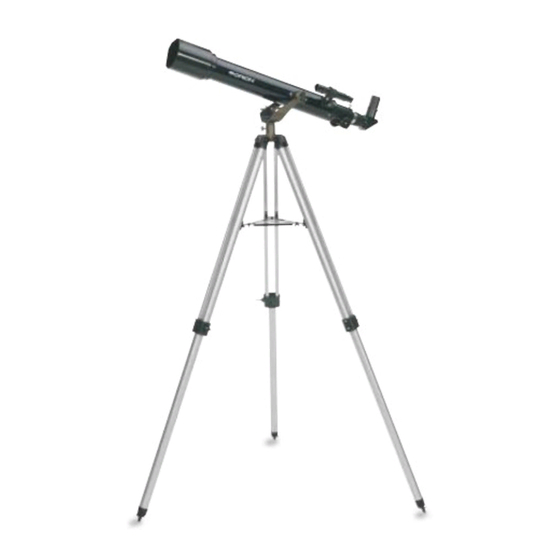

Orion
®
Observer
70mm Altaz
™
#9801
Altazimuth Refractor Telescope
Customer Support (800) 676-1343
E-mail: support@telescope.com
Corporate Offices (831) 763-7000
P.O. Box 1815, Santa Cruz, CA 95061
Providing Exceptional Consumer Optical Products Since 1975
IN 095 0898
