MANUAL BATTERY CHARGER
OWNER'S MANUAL & WARRANTY INFORMATION
6/2 AMP – BATTERY CHARGER FOR 6 AND 12 VOLT DC BATTERIES
1. WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES
GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS
REASON, IT IS OF UTMOST IMPORTANCE THAT EACH TIME BEFORE USING YOUR
CHARGER, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.
2. To reduce risk of battery explosion, follow these instructions and those published
by the battery manufacturer and the manufacturer of any equipment you intend
to use in vicinity of battery. REVIEW CAUTIONARY MARKINGS ON THESE
PRODUCTS AND ON ENGINE.
GENERAL BATTERY SAFETY:
1. Use charger for charging a LEAD-ACID battery only. It is not intended to supply power to a low
voltage electrical system other than in an automotive application. Do not use battery charger for
charging dry-cell batteries that are commonly used with home and portable appliances. These
batteries may burst and cause injury to persons and damage to property.
2. Use of an attachment not recommended or sold by the battery charger manufacturer may result in
a risk of fire, electric shock, or injury to persons.
3. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when
disconnecting charger.
4. An extension cord should not be used unless absolutely necessary. Use of an improper extension
cord could result in a risk of fire and electric shock. If extension cord must be used, make sure:
a.That pins on plug of extension cord are the same number, size, and shape as those of plug
on charger.
b.That extension cord is properly wired and in good electrical condition; and
c. That wire size is AWG #18 (18 gauge) to 100 feet and AWG #16 for distances over 100 feet.
5. Do not operate charger with damaged cord or plug - replace the cord or plug immediately.
6. Do not operate charger if it has received a sharp blow, been dropped, or otherwise
damaged in any way; take it to a qualified service technician.
7. Do not disassemble charger; take it to a qualified service technician when service or repair is required.
Incorrect reassembly may result in a risk of electric shock or fire.
8. To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or
cleaning. Turning off controls will not reduce this risk.
9. Do not expose charger to rain or snow.
10.Never charge a frozen battery.
• IMPORTANT SAFETY INSTRUCTIONS •
SAVE THESE INSTRUCTIONS -
This manual contains important safety and operating instructions for battery charger Model VEC072
4140 SW 28TH WAY, FT. LAUDERDALE, FL 33312 • TEL: 945-584-4446 • FAX: 954-584-5556 • TOLL-FREE: 866-584-5504
START-IT
™
VEC072
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the START-IT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vector START-IT

Summary of Contents for Vector START-IT

  • Page 1: Important Safety Instructions

    VEC072 START-IT ™ MANUAL BATTERY CHARGER OWNER’S MANUAL & WARRANTY INFORMATION 6/2 AMP – BATTERY CHARGER FOR 6 AND 12 VOLT DC BATTERIES 1. WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT EACH TIME BEFORE USING YOUR CHARGER, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.
  • Page 2 PERSONAL PRECAUTIONS AND SAFETY 1. Someone should be within range of your voice or close enough to come to your aid when you work near a lead-acid battery. 2. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes. 3.

  • Page 3: Charger Location

    PREPARING TO CHARGE 1. Determine voltage of battery by referring to car owner's manual and make sure that output voltage selector switch is set at correct voltage. 2. If it is necessary to remove battery from vehicle to charge, or to clean terminals, always remove grounded terminal from battery first.

  • Page 4: Introduction And Features

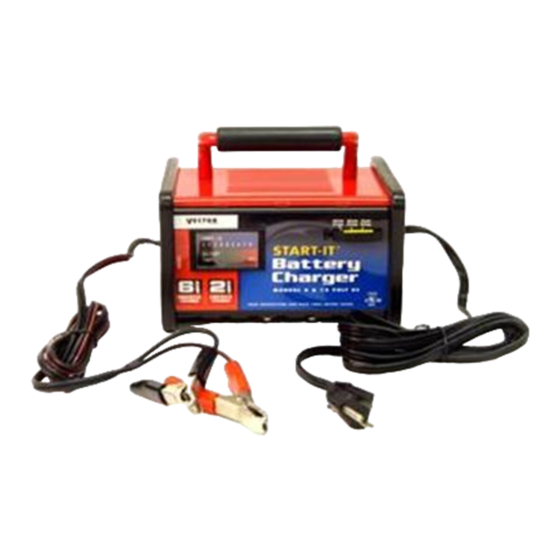

    INTRODUCTION AND FEATURES Thank you for selecting the Vector® Model VEC072 6/2 Battery Charger. With proper care and use, it will give you years of dependable service. This model battery charger has a high charge rate of up to 6 amps, and low charge rate of up to 2 amps.

  • Page 5: Charger Controls

    CHARGER CONTROLS The charger control is located on the front panel of the charger unit. See Figure 3. • The sliding selector switch offers three Voltage/Charge Rates for charging various types of batteries. • Select the correct switch position BEFORE connecting the charger to a battery or AC power source. •...

  • Page 6: Pre-Charge Activation

    NOTE: If there is any problem connecting the charger clamps to the battery terminals, contact the Vector Technical Support Department at (954 - 584-4446) for assistance.

  • Page 7: Charging If Battery Is Outside Of Vehicle

    • Keep the charger cords loosely coiled during storage to prevent damage to the cords. Do not use the charger if cords or clamps have been damaged in any way - call Vector Technical Support Department at 866-584-5504 for details on replacing cords and clamps.

  • Page 8: Appendix A Estimating Battery Charge Time - Vent Cap Batteries

    SLOW RATES OF CHARGE – CONTINUED • Using a voltmeter, determine the voltage of the battery and if it is under 12 volts, the battery is probably beyond repair or recharging, and will need to be replaced. • If the voltage is over 12 volts, reconnect the charger and resume the charging process for another 15-20 minutes.

  • Page 9: Appendix B - Specifications

    APPENDIX B – SPECIFICATIONS Height ..................... 4.5 inches (11.43 cm) Width ..................... 7.5 inches (19.05 cm) Depth ....................5.1 inches (12.95 cm) Weight .................... 5 lbs (2.26 kg) Internal protection ................self-resetting breaker Input voltage..................120 VAC 60 Hz, 1.3 amperes. Convenience features ...............
  • Page 10 VECTOR "GOLD SEAL" 2/4 YEAR LIMITED WARRANTY PROGRAM This limited warranty program is the only one that applies to this product, and it sets forth all the responsibilities of Vector Manufacturing, Ltd., regarding this product. There is no other warranty, other than those described herein.
  • Page 12 © 2002 VECTOR MANUFACTURING, Ltd. • FT. LAUDERDALE, FL 33312 • MADE IN CHINA...
