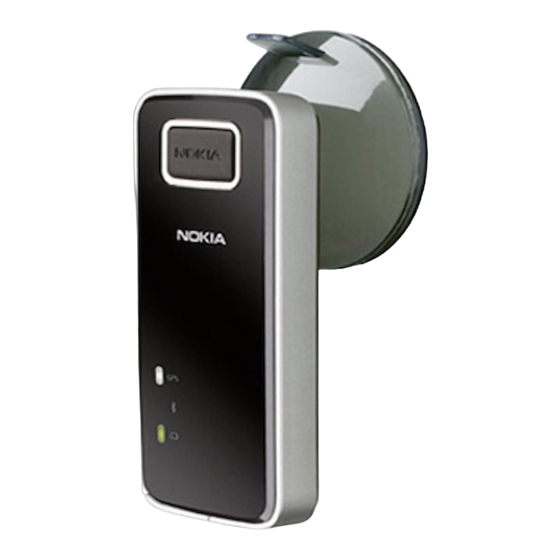

Nokia Bluetooth GPS Module
LD-4W User Guide
9204130
Issue 1 EN

Advertising

   Related Manuals for Nokia LD-4W

   Summary of Contents for Nokia LD-4W

  • Page 1

    Nokia Bluetooth GPS Module LD-4W User Guide 9204130 Issue 1 EN...

  • Page 2

    DECLARATION OF CONFORMITY Hereby, NOKIA CORPORATION declares that this LD-4W product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/ declaration_of_conformity/. © 2007 Nokia. All rights reserved.

  • Page 3

    Nokia reserves the right to revise this document or withdraw it at any time without prior notice. The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.

  • Page 4: Table Of Contents

    C o n t e n t s Contents 1. Introduction .............. 5 Water-resistance..................5 Bluetooth wireless technology............... 6 About the GPS..................... 7 2. Get started..............9 Parts ......................10 Chargers..................... 10 Charge the battery.................. 11 3. Basic use ..............13 Switch on ....................

  • Page 5: Introduction, Water-resistance

    I n t r o d u c t i o n Introduction With the Nokia Bluetooth GPS Module you can determine your current position and direction easily. The GPS module uses Bluetooth wireless technology to communicate positioning information to a compatible device, such as a mobile phone or PC.

  • Page 6: Bluetooth Wireless Technology

    I n t r o d u c t i o n If the device has been exposed to sweat or salt water, wipe it immediately with freshwater to avoid corrosion. The device must be carefully wiped dry. ■ Bluetooth wireless technology Bluetooth wireless technology allows you to connect compatible devices without cables.

  • Page 7: About The Gps

    I n t r o d u c t i o n ■ About the GPS The GPS (Global Positioning System) is a worldwide satellite-based radio navigation system. The GPS module can calculate its location to an accuracy of 10 meters (33 feet). The accuracy depends on the number of GPS satellites to which the GPS module is in a line of sight.

  • Page 8

    I n t r o d u c t i o n by adjustments to GPS satellites made by the United States government and is subject to change with the United States Department of Defense civil GPS policy and the Federal Radionavigation Plan.

  • Page 9: Get Started

    • Charge the battery of the GPS module fully. • Pair the compatible device with the GPS module. Some Nokia devices, such as the Nokia 9500 Communicator, have a location privacy setting. To provide GPS location data to applications in such a device, you must...

  • Page 10: Parts, Chargers

    GPS module. The GPS module is intended for use with the AC-3, AC-4, AC-5, and DC-4 chargers. Warning: Use only chargers approved by Nokia for use with this particular enhancement. The use of any other types may invalidate any approval or...

  • Page 11: Charge The Battery

    G e t s t a r t e d When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord. ■ Charge the battery The GPS module has an internal, nonremovable, rechargeable battery. Do not attempt to remove the battery from the GPS module, as you may damage it.

  • Page 12

    G e t s t a r t e d Charging the battery for 15 minutes provides about 6 hours of operating time with the AC-4, AC-5, and DC-4 chargers. Charging the battery fully may take up to 1 hour. 3.

  • Page 13: Basic Use, Switch On

    GPS satellites, press the power key briefly. The antenna of the GPS module is located under the Nokia logo, and it should face upwards. Some car windshields and windows may contain metal, which may block or weaken...

  • Page 14: Switch Off, Pair With Another Device

    B a s i c u s e ■ Switch off To switch off, press and hold the power key until the battery indicator light flashes red briefly. If the GPS module is not connected to a charger or a paired device within about 1 hour, it switches off automatically.

  • Page 15

    2. Activate the Bluetooth feature on the device, and set it to search for Bluetooth devices. 3. Select the GPS module (Nokia LD-4W) from the list of found devices. 4. Enter the passcode 0000 to pair and connect the GPS module to your device.

  • Page 16: Support For Waas/egnos, Suction Cup And Belt Clip

    B a s i c u s e ■ Support for WAAS/EGNOS The GPS module supports the WAAS/EGNOS system. To use the system, your GPS application needs to support it as well. For details, see the user guide for your GPS application. ■...

  • Page 17: Key Ring, Clear Settings Or Reset

    B a s i c u s e To use the suction cup, press it firmly on a flat surface to create a vacuum between the cup and surface. Check that the cup is firmly attached. To detach the cup from the surface, pull the strap located on the edge of the suction cup.

  • Page 18

    B a s i c u s e To reset the GPS module if it stops functioning, although it is charged, press and hold the power key and, at the same time, plug the GPS module into a charger.

  • Page 19: Battery Information

    Recharge your battery only with Nokia approved chargers designated for this device. Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime.

  • Page 20

    B a t t e r y i n f o r m a t i o n Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged.

  • Page 21: Care And Maintenance

    C a r e a n d m a i n t e n a n c e Care and maintenance Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you protect your warranty coverage.

  • Page 22

    Return the products to collection to prevent possible harm to the environment or human health from uncontrolled waste disposal and to promote the sustainable reuse of material resources. Collection information is available from the product retailer, local waste authorities, national producer responsibility organizations, or your local Nokia...

  • Page 23

    C a r e a n d m a i n t e n a n c e representative. For more information, see product Eco-Declaration or country-specific information at www.nokia.com.
