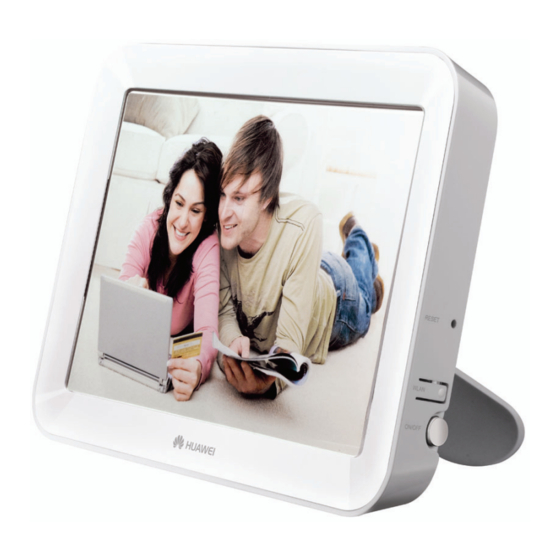

EchoLife HG520b Home Gateway
Thank you for purchasing EchoLife HG520b Home Gateway (hereinafter referred to as
the HG520b).
With the HG520b, you can access the Internet through the ADSL connection.
1

Safety Precautions

Pay attention to t

Quick Start

he following when installing and using th HG520b.
Place the device at
well-ventilated p
Do not ex
pose the
device to direct
sunlight.
During storage,
transportation and
operation of the device,
keep the device dry.
a
lace.
1
e
Never attempt to
dismantle the devi
yourself. In case of any
fault, contact the
specified maintenance
center for repair.
Keep the power plug
clean and dry. Using
dirty or wet power plu
may lead to electric
shock or other perils.
　
Do not use an old or a
damaged power cable.
ce by
a
g

Advertisement

Table of Contents
loading

Related Manuals for Huawei Echolife HG520b

Summary of Contents for Huawei Echolife HG520b

  • Page 1: Quick Start

    EchoLife HG520b Home Gateway Quick Start Thank you for purchasing EchoLife HG520b Home Gateway (hereinafter referred to as the HG520b). With the HG520b, you can access the Internet through the ADSL connection. Safety Precautions Pay attention to t he following when installing and using th HG520b.
  • Page 2 Do no let a child In any of the following operate the device cases, stop using the without guidance. Do device, disconnect it not let a child play with from the power supply the device or any and unplug the power accessory.

  • Page 3: Front Panel

    Overview Figures of the front panel and the rear panel are only for your reference. Front Panel POWER WLAN LAN1 LAN2 LAN3 LAN4 INTERNET ADSL Indicator Status Description POWER The HG520b is powered on. The HG520b is powered off. WLAN WLAN function is enabled.

  • Page 4: Rear Panel

    Indicator Status Description INTERNET The embedded PPPoE and PPPoA dial-ups of the HG520b are successful, but there is no data transmission. Blinking There are data being transmitted in the INTERNET interface. The HG520b is in the bridge mode or the PPPoE/PPPoA connection is not established.

  • Page 5: Preparations For Connection

    Preparations for Connection Splitter The external splitter can efficiently reduce the signal disturbance on the telephone line. When voice and data are transmitted on the same telep hone line at the same time, you need to use the external splitter to separate t he voice and data signals: LINE: Connecting to the phone jack on the wall.
  • Page 6 Connecting the H G520b You can connect the HG520b as follows. POWER LAN4 LAN3 LAN2 LAN1 ADSL 1 Power adaptor 2 Computer 3 Switch 4 Splitter 5 Phone Jack 6 Phone Configuring the HG520b You can access the Internet by use the following two methods: Using the Embedded PPP Dial-Up Software of the HG520b to Get Online Using the PPP Dial-Up Software of the Computer to Get Online...
  • Page 7 Please use the parameters provided by your internet service provider (ISP) for configuration. If the configuration is wrong, you will not be able to access the Internet. Using the Embedded PPP Dial-Up Software of the HG520b to Get Online Step 1 Configure the HG520b to enable the embedded dial-up function 1.

  • Page 8: Troubleshooting

    The Windows XP (Professional) operating system has an embedded PPPoE dial-up software. To set up the dial-up connection in Windows XP system, do as follows: 1. Choose Start > All Programs > Accessories > Communications > Network Connections. 2. Click Create a new connection in the displayed page. 3.
  • Page 9 3. Make sure that no telephone or fax machine is connected directly to the ADSL line. 4. Replace the old ISA network adapter w ith a new 10/100M PCI network adapter and install the latest driver. 5. Find help on http://www.huawei.com. 6. Contact your ISP for help.
  • Page 10 2. Will the call service and the ADSL access service influence each other? The HG520b separates the voice from the data signals by the FDM technique. Though being transmitted through the same telephone line, voice and data traffic do not interfere with each other and neither of the two services will be influenced.

  • Page 11: Technical Specification

    Technical Specification Physical Features and Environmental Requirements Power consumption Less than 7 W Power supply 12 V DC, 1.0 A Ambient temperature in °C °C –40 operation Ambient humidity in operation 5%–95%, non-condensing Dimensions 188 mm × 140 mm × 30 mm Weight About 320 g This product has been designed to comply with the requirements on environmental...

  • Page 12: Trademarks And Permissions

    Copyright © Huawei Technologies Co., Ltd. 2008. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
