PREPARATION
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
I

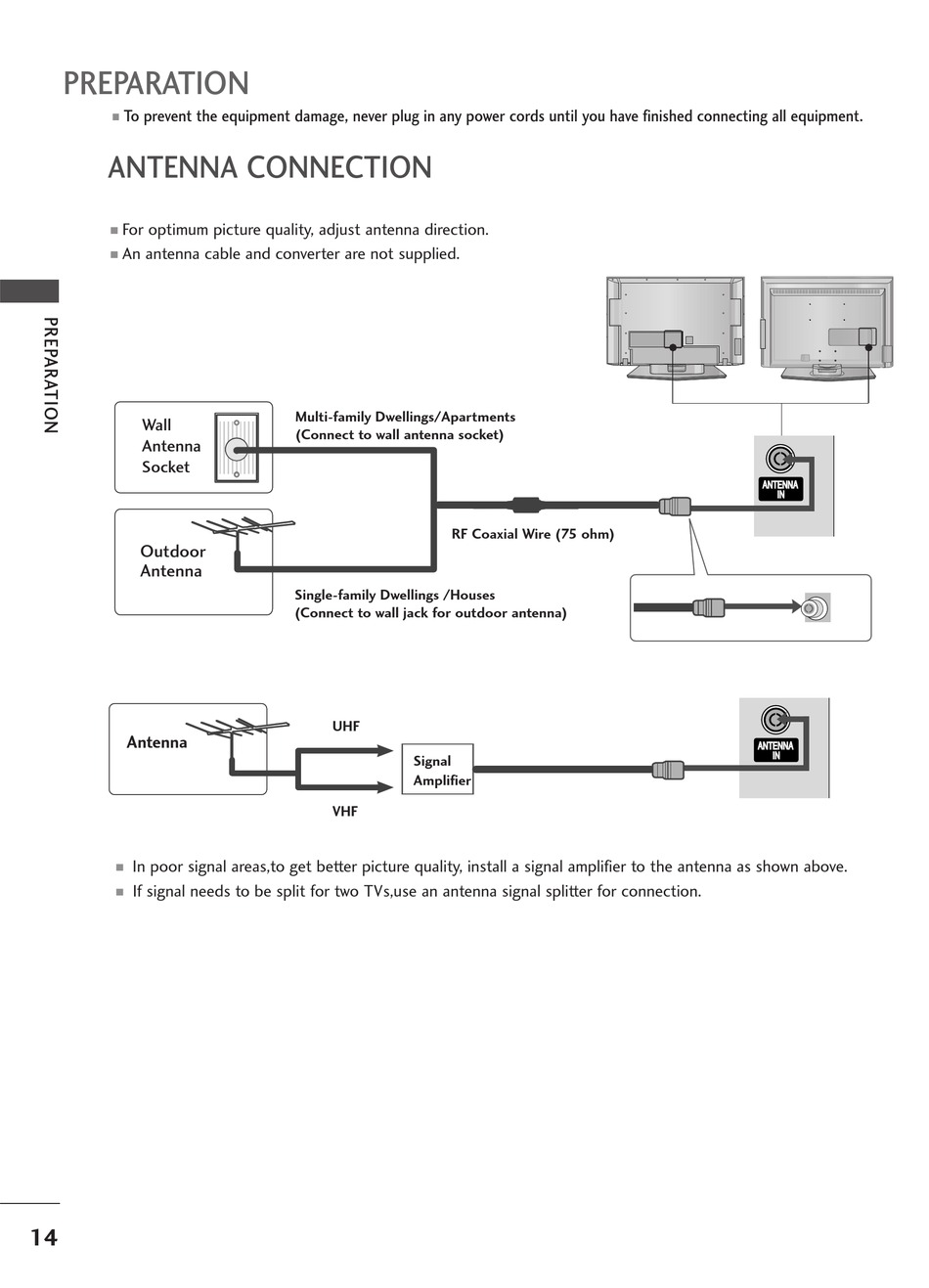

ANTENNA CONNECTION

For optimum picture quality, adjust antenna direction.
I
An antenna cable and converter are not supplied.
I
Wall
Antenna
Socket
Outdoor
Antenna
Antenna
In poor signal areas,to get better picture quality, install a signal amplifier to the antenna as shown above.
I
If signal needs to be split for two TVs,use an antenna signal splitter for connection.
I
