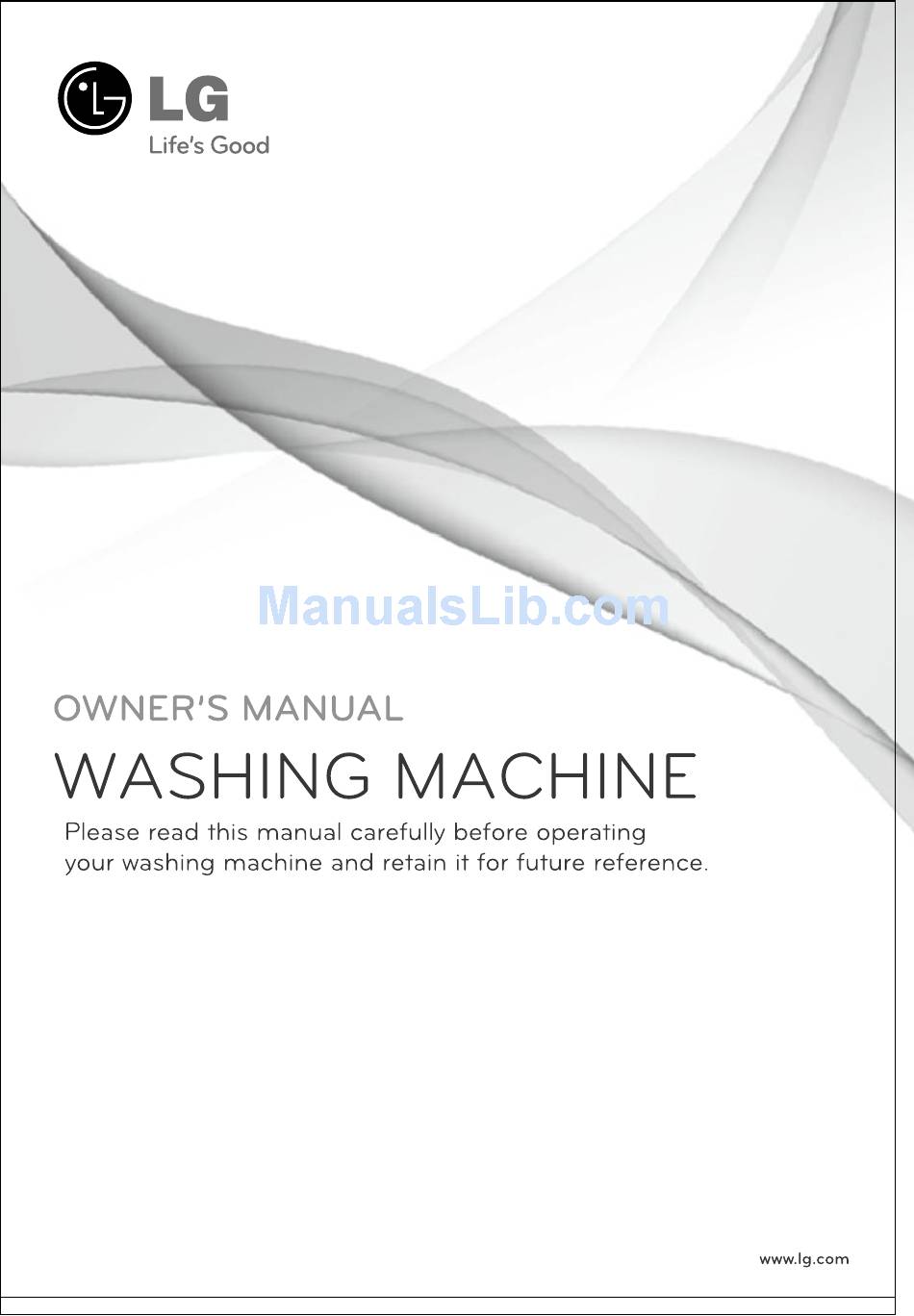

LG T7508TDFP Owner's Manual

Hide thumbs

Advertisement

T7508TDFP
T6507TEEP
WF-T756SPG
P/No:3828EN3819T
ver.012811.03

Advertisement

loading

  Summary of Contents for LG T7508TDFP

  • Page 1 T7508TDFP T6507TEEP WF-T756SPG P/No:3828EN3819T ver.012811.03...
  • Page 2: Features

    roduct Features Washer doesn't operate while the lid is open. If the lid is open during the wash, rinse or spin cycles, the operation stops for safety. FUZZY logic control A built-in load sensor automatically detects the laundry load and a microprocessor optimizes washing conditions such as ideal WATER LEVEL and washing time.
  • Page 3: Table Of Contents

    ontents READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section.
  • Page 4: Safety Information

    afety Information Read carefully and thoroughly through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product. This booklet is divided into 2 parts : Warning and Caution. : This is a warning sign specifying user’s applications which might be dangerous.
  • Page 5: The Washer

    afety Information YOUR Warning LAUNDRY AREA • Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc. Operating with such materials around the machine may trigger explosion or fire. • Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.
  • Page 6 afety Information WHEN USING Warning THE WASHER Do not use a plug socket and wiring equipment for more than their rated capacity. Exceeding the limit may lead to electric shock, fire , break down, and/or deformation of parts. Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce toxic gases which may cause death.
  • Page 7: Identification Of Parts

    dentification of Parts Body POWDER DETERGENT Box for delayed WATER SUPPLY HOSE washing. Make sure the LINT FILTER water does not Clean regularly to leak. stop linting on the clothes load. POWER PLUG BLEACH If the supply cord is DISPENSER damaged, it must be replaced by the manufacturer or its...
  • Page 8: Function Information

    unction Information Our machine provides various washing methods which suits various conditions and types of laundry. Different types of laundry washing FUZZY(Normal) Wash Use this Program for everyday washing e.g. sheets, towels, T-shirts. (refer to page 18) JEANS Wash Use this Program for heavily soiled durable garments e.g. overalls, jeans. Thick and heavy clothes or those which are excessively dirty like jeans or working uniforms can be washed.
  • Page 9 Use nylon nets for long, DELICATE items. For laundry with long strings or long length , a net will prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items don't snag on other clothes. Nylon net is not supplied by LG.
  • Page 10 se of Water, Detergent, Bleach and Softener Using Water Amount of WATER LEVEL • This machine detects the quantity of laundry automatically, then sets the WATER LEVEL and proper amount of Detergent. • When you select a wash program, the WATER LEVEL and amount of Detergent (to be used) will be shown on the control panel.
  • Page 11: How Much Detergent

    Choosing the right Detergent We recommend the use of domestic Detergent, (powder, liquid or concentrated). Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens remember to use Detergent suitable for washing woolens. Using Detergent How much Detergent The correct amount of Detergent will vary depending on the amount of soil in your clothes (Jeans and work...
  • Page 12 se of Water, Detergent, Bleach and Softener Using Fabric Softener • Dilute fabric softener with water. Undiluted fabric softener may result in spots that look like oil stains. Softener dispenser( • Measure and add the recommended amount of fabric softener into the compartment marked with this symbol( Follow manufacturer’s direction.
  • Page 13: Stain Removal

    pecial Guide for Stain Removal WARNING n Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death. n To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below: •...
  • Page 14 Button (T7508TDFP/T6507TEEP) TIME LEFT, DELAY START WATER TEMPERATURE WATER LEVEL BUTTON (RESERVATION), ALARM INDICATION BUTTON • Use to select the proper amount of water in relation • Use to select Water • Time left - During operation, the remaining time to the weight and type of laundry.
  • Page 15 PROGRAM BUTTON • Use for selecting wash program. • This button allows you to select 8 different programs for different kinds of laundry and dirtiness. • program selections light up in sequence as follows: FUZZY(Normal) WOOL QUICK WASH JEANS EXTRA CLEANING SILENT FAVORITE TUB CLEAN...
  • Page 16: Air Dry

    unction of each Button (WF-T756SPG) TIME LEFT, DELAY START BEEPER BUTTON WATER LEVEL BUTTON (RESERVATION), ALARM INDICATION • Use to select the proper amount of water in relation • use to select Beeper. • Time left - During operation, the remaining time to the weight and type of laundry.
  • Page 17 PROGRAM BUTTON • Use for selecting wash program. • This button allows you to select 8 different programs for different kinds of laundry and dirtiness. • program selections light up in sequence as follows: FUZZY(Normal) WOOL QUICK WASH JEANS EXTRA CLEANING SILENT FAVORITE TUB CLEAN...
  • Page 18: Washing Programs

    ashing Programs Washing POWER Programs the Detergent AUTO OFF laundry (Normal Wash) Used for normal loads, this • Add the appropriate mode automatically selects the quantity of Detergent as most appropriate conditions and completes the sequence indicated by the WATER in one operation.
  • Page 19 STAR ART T Close the lid Finish Caution & Note P P A A USE • If water is already in the tub, or putting wet laundry into the tub before starting will increase the WATER LEVEL. • With lightweight bulky loads, WATER •...
  • Page 20 OAK Wash Use this mode to wash normal clothes or thick and heavy clothes which are excessively dirty. SOAK mode can be used with FUZZY or JEAN or SILENT or FAVORITE program. Press the POWER (AUTO OFF) button to turn power on. P P O O WER AUTO OFF Press the PROGRAM button to select the washing program.
  • Page 21 AVORITE Wash Pressing the FAVORITE button allows you to store your FAVORITE wash conditions in the normal cycle memory and then recall it for use at a later time. Press the POWER (AUTO OFF) button to turn power on. P P O O WER AUTO OFF Select the FAVORITE program.
  • Page 22 ILENT Wash Use this program to wash quietly in SILENT especially during late night and dawn. Press the POWER (AUTO OFF) button to turn power on. P P O O WER AUTO OFF Press the PROGRAM button to select SILENT program. Add the laundry into the washing tub.
  • Page 23 UB CLEAN If scrud is allowed to build-up in the machine it can result in stains on your clothes or unpleasant smell in your washer. Scrud is the way build-up that can occur within any washer when the fabric softener comes into contact with Detergent, and according to particular degree of dirtiness or quality of water to be use, in these case, use this program to clean inner tub and outer tub.
  • Page 24 IR DRY AIR DRY for your laundary. Press the POWER (AUTO OFF) button to turn power on. P P O O WER AUTO OFF Press the AIR DRY button to select the desired timing. Press the START/PAUSE button. STAR ART T P P A A USE Closed the lid.
  • Page 25: Option Washing

    ption Washing When you only need the Wash, Wash/Rinse or Rinse cycles, these can be set manually. Press the POWER (AUTO OFF) button to turn power on. P P O O WER AUTO OFF Only Wash Only Spin Only Rinse Press the WASH button to Press the RINSE button to Press the SPIN button to...
  • Page 26: Delay Start (Reservation) Wash

    ELAY START (RESERVATION) Wash DELAY START (RESERVATION) Wash is used to delay the finishing time of the operation. The hours to be delayed can be set by the user accordingly. The time on the display is the finishing time , not the start time. Press the POWER (AUTO OFF) button to turn power on.
  • Page 27: Other Useful Functions

    ther Useful Functions Child Lock Function If you want to lock all the keys to prevent settings from being changed by a child, you can use the child lock option. How to Lock Press the POWER (AUTO OFF) button. • Turn Power on. POWER AUTO OFF Press the START/PAUSE button to start washing.
  • Page 28: Installation

    lacing and Leveling Please ensure that transit restraint has been removed before operating your machine. Place the machine on a flat and firm surface which allows proper clearance. We suggest a minimum clearance of 2 cm to the right side and left sides of the machine for ease of more than 10 cm installation.
  • Page 29: Connecting Water Supply Hose

    onnecting Water Supply Hose Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the correct instruction here under. Note that the Water Supply Hose supplied may vary from country to country, Make sure to connect the blue inlet hose to the COLD water tap, and the orange inlet hose to the HOT water tap.
  • Page 30: Connecting Water Supply Hose

    onnecting Water Supply Hose Normal Type (Normal tap without thread & one touch type inlet hose.) Separate Middle connector from Water Supply Hose Separate Middle connector from the Water Middle Fixed Sticker connector Supply Hose by pulling the Pressing Rod and the Pressing Handle Pressing Handle that is attached to the Water Pressing Rod...
  • Page 32: Connecting Drain Hose

    onnecting Drain Hose Before connecting Drain Hose, check your Drain Hose model and choose the correct instructions. Pump Model Fit the end of the drain hose to the outlet of the drain pump and tighten the clamp. Put the other end of the drain hose over the standpipe or wash tub.
  • Page 33: Grounding Method

    rounding Method Earth wire should be connected. If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage . Grounding Method with Ground insert space Terminal Ground If the AC current outlet has a ground terminal, then Terminal separate grounding is not required.
  • Page 34: Cleaning And Maintenance

    • Before cleaning the filter, the impurities in the water supply hose should be removed. To Clean the Lint Filter NOTE • If the lint filter is torn or damaged, purchase a new one from LG service center. To Clean the Pump casing (for pump model) Place a towel on the...
  • Page 35: Use Of Handle Lock

    se of Handle Locker You can use handle hold function if you like to use. Handle hold function is operated by holder under the handle. • Slide holder to left/right side until you listen to "Click" sound to holding handle. •...
  • Page 36 leaning and Maintenance When there is a fear of freezing • Close the water taps and remove the Water Supply Hose. • Remove the water which remains in the water supply. • Lower the drain hose and drain the water in the bowl and the drain hose by spinning. If frozen •...
  • Page 37: Common Washing Problems

    ommon washing problems Many washing problems involve poor soil & stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these instructions. WASH PROBLEM Problems Solutions & Preventive Measures Possible Causes • Use correct amount of Detergent for load size, amount of Poor soil •...
  • Page 38: Troubleshooting

    • Is the laundry evenly balanced? Spin Failure • Is the washing machine placed on a flat surface? Door(Lid) Open • Is the lid closed? • Please call your nearest LG Electronics service center for help. Internal sensing failure Power failure...
  • Page 39 erms of Warranty What Is Not Covered: • Service trips to your home to teach you how to use the product. • If the product is connected to any voltage other than that shown on the rating plate. • If the fault is caused by accident, neglect, misuse or Act of God. •...
  • Page 40: Specification

    Model T7508TDFP T6507TEEP WF-T756SPG Size 540(W)×540(D)×850(H) 540(W) ×540(D) ×910(H) Weight 33.5kg 33.5kg Water tab pressure 30 - 800 kPa (0.3 - 8.0 kgf/cm 30 - 800kPa(0.3 - 8.0kgf/cm²) In our continuing effort to improve the quality of our appliances, it may be necessary to make changes...
