American DJ
DP-DMX20
Thank you for purchasing this American DJ® product. For your convenience this
product has been tested and is ready to be used, there is no assembly required.
Please read the following instructions before installing or using your new unit.

Product Description:

The DP-DMX20™ 4 channel DMX Dimmer Pack can be set as a 4 channel DMX Dimmer or by changing the
dip switch #10 it becomes a single DMXChannel dimmer with all four channels linked together in paralell.
The DP-DMX20™ features include: zero-crossing circuitry, for protection of inductive loads; two 3-
prong Edison sockets per channel; XLR connection; individual fuse for each channel; and a maxi-
mum output load of 10A per channel or 20A total. Great for permanent of mobile applications.

GENERAL FUNCTIONS (FRONT) :

1. POWER OUTPUT: 4 channel, 3-prong edison output
sockets. 8 total output sockets.
2. FUSE: 4 x 10A fuses.

GENERAL FUNCTIONS (REAR) :

3. POWER INPUT: 120V AC power input.
4. Toggle switch to disable DMX when servicing.
5. DMX SIGNAL INPUT: XLR socket, connect to a DMX
512 Controller
6.. DMX SIGNAL OUTPUT: XLR socket, connect to other
DP-DMX20's™.
7. GREEN L.E.D.: Indicates which channels are in use.
8. RED L.E.D. + POWER SWITCH: Turn power switch on,
Red L.E.D. will be on when connected to power.
9. DMX DIPSWITCH: When using DMX Pack- Follow
DMX addressing on page 2 for desired channel settings.
Note: dipswitch #10 must be off for DMX 4 channel mode.
When using as a Single DMX channel-
assign DMX dip switch 10 to the 'ON' position. The unit par-
allels all channels together.
10.Yellow L.E.D. is lit when receiving DMX. If not lit check
toggle switch.
Specifications: Model DP-DMX20™
Dimensions: 8.5" x 7" x 4.5", Weight: 5 lbs.
Output load: 10A per channel or 20A total
Power: 120V 60Hz
For service, contact your American DJ® Dealer.
Always disconnect the DP-DMX20™ from main
Caution!
power before servicing unit, there may be high voltage inside
console. Remember to always replace with same fuses.
© American DJ® Los Angeles, CA 90058 USA
User Instructions
®
1
p.1 of 2
4 CHANNEL DMX
POWER PACK
2

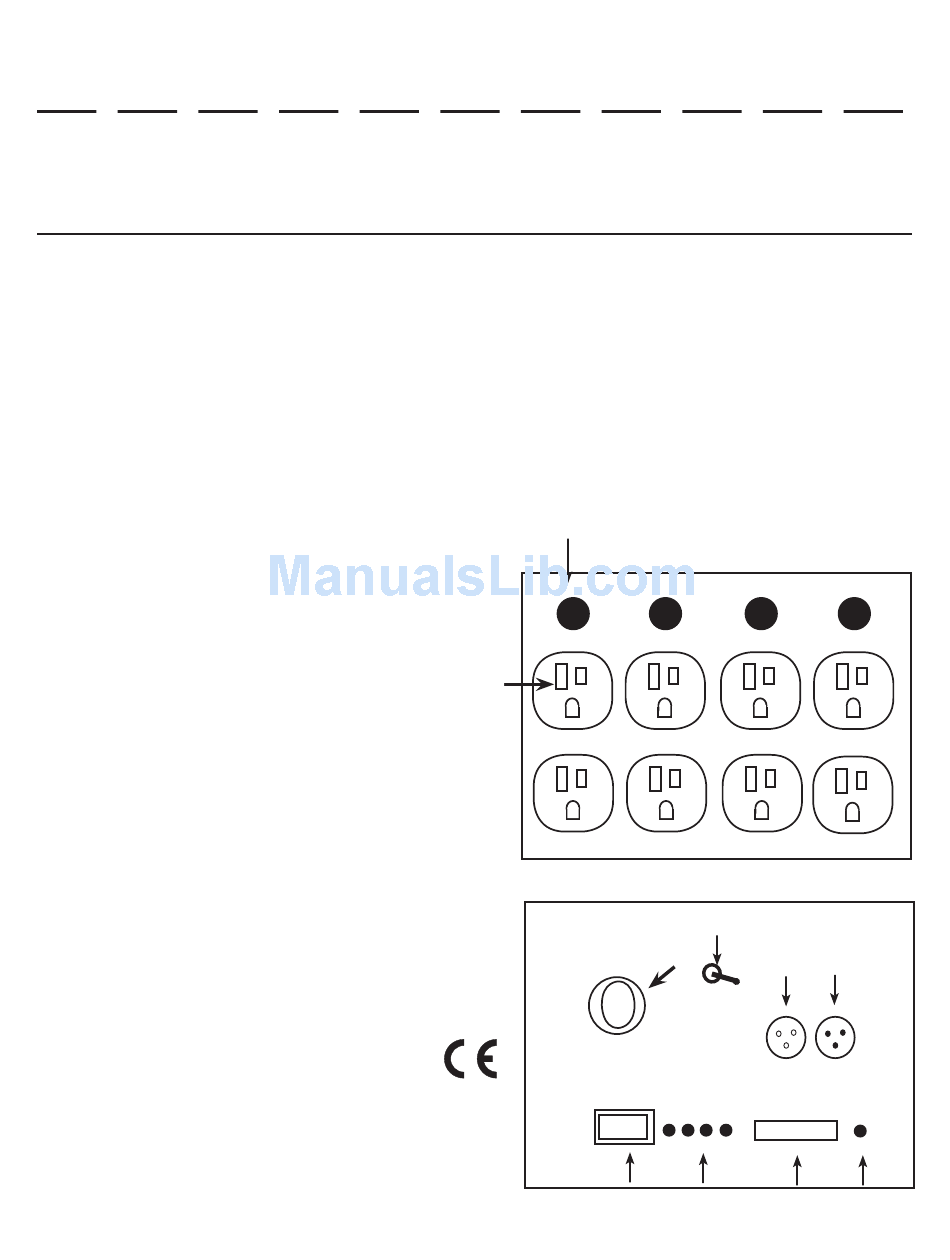

FRONT VIEW
REAR VIEW
4
3
8
7
6
5
9
10
