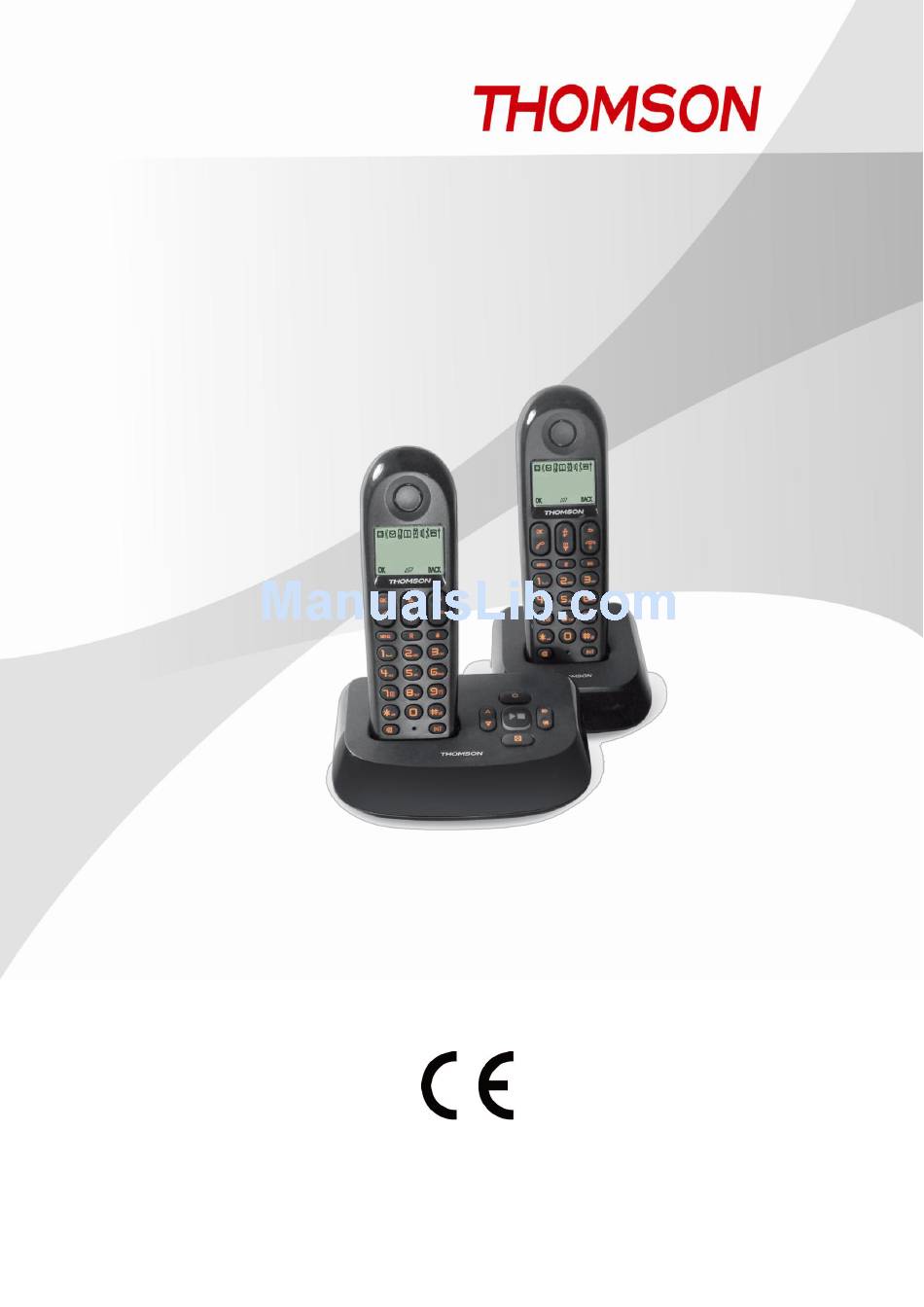

Page 1: Digital Cordless Telephone
Digital Cordless Telephone User Manual SAPHIR TH-052DRB/TH-052DRW TH-052DRB2/TH-052DRW2 Please retain this user manual for future reference. -
Page 2: Table Of Contents
Summary Getting started Important safety instructions Installing the telephone base Transmission range of the handset Signal strength Installing and charging the batteries Low battery warning Battery performance Package contents Presentation of your telephone system Handset Telephone base LCD screen of the handset Using the telephone Switching on the handset Dialing an external call... - Page 3 Clock and alarm Setting the date and time Changing the time format Changing the date format Alarm clock function Personal set setting the handset Setting the ringer volume Selecting the ringtone Setting the key tone Selecting the language Changing the handset name Activating/deactivating auto hang-up Changing the PIN code Registering a handset...
-
Page 4: Getting Started
Only use the telephone base with the supplied power adapter. Failure to observe the correct polarity or voltage of the adapter may cause damage to the telephone base. For phone models SAPHIR TH-052DRB and TH-052DRW: Adapter for the telephone base: S003IV0600050... -
Page 5: Installing The Telephone Base
Installing the telephone base Given the length of the cables, you must install the telephone base within two meters of an electrical outlet and a telephone wall jack. The telephone base should also be placed at least one meter away from other electrical appliances in order to avoid interference. -
Page 6: Low Battery Warning
Charger (only for duo phone model TH-052DRB2 and TH-052DRW2) Adapter Jack Low battery warning icon appears on the screen to indicate that the batteries are fully charged. This icon animates during charging. When it flashes rapidly, the batteries are slightly charged. When it flashes slowly, the batteries are almost completely charged. -
Page 7: Package Contents
Use only Ni-MH batteries. The autonomy for the handsets indicated is based on the original capacity of the batteries. Dispose of used batteries according to the instructions of your local authorities. Package contents The package of solo phone model TH-052DRB and TH-052DRW contains the following: Quantity Telephone base Cordless handset... -
Page 8: Presentation Of Your Telephone System
Presentation of your telephone system Handset 1 RECEIVER 2 CONFIRMATION Press to make a selection on the menu or to confirm the option displayed on the screen. Access to the option displayed right above the OK key on the screen. 3 TALK Press to dial or answer a call. -
Page 9: Telephone Base
8 REDIAL LIST Press to access the redial list. 9 FLASH KEY Press the “R” key to use special functions provided by your telephone service provider such as call waiting and call forwarding. 10 MENU Press to access the main menu. 11 ALPHANUMERIC, (ASTERISK), # (HASH) KEYS Press to enter a number/character,... -
Page 10: Lcd Screen Of The Handset
LCD screen of the handset The below icons may illuminate on the screen when you use your telephone. Icon Description The icon lights up when the handset is within the transmission range of the base. It flashes when it is not yet registered to the base or when it is out of range. It flashes to indicate an incoming internal or external call The icon lights up to indicate that a call is in progress. -
Page 11: Using The Telephone
Using the telephone Switching on the handset When your handset is switched off, press and hold until the screen turns on. To switch off the handset, press and hold until the screen turns off. Dialing an external call - Predialing Enter a phone number and press in order to take the line and dial the number. -
Page 12: Using The Menu
Using the menu All functions and settings can be accessed from the menu. The available menu options are shown in the schema below: PHONEBOOK PERSONAL SET CLOCK/ALARM ADVANCED SET ANSW MACHINE NEW ENTRY HANDSET NAME DATA/TIME CHANGE PIN PLAY LIST HANDSET TONE SET FORMAT REGISTERATION... -
Page 13: Deleting A Number From The Redial List
Deleting a number from the redial list 1. Perform steps 1 and 2 as indicated in “Redialing a number”. 2. Press <MENU> and then use <UP/DOWN> to select DELETE. 3. Press <OK> to confirm deletion. Deleting all the numbers from the redial list 1. -
Page 14: Phonebook
Phonebook Your handset can save up to 50 contacts (names and phone numbers). You may enter up to 24 digits for the phone number and 12 characters for the name for each contact. In phonebook display mode, the contacts appear in alphabetical order. Adding a new contact In standby mode: 1. -
Page 15: Call Log
Call log You should first subscribe to the caller identification service from your telephone service provider before accessing this feature from your telephone. After you have subscribed to this service, when someone calls, the caller’s phone number is displayed on the handset screen. -
Page 16: Clock And Alarm
Clock and alarm You can change the time format and activate the alarm clock. Setting the date and time 1. Press <Menu> then use <UP/DOWN> to select CLOCK/ALARM. 2. Press <OK> to select DATE/TIME. 3. Press <OK> then enter the date. 4. -
Page 17: Setting The Ringer Volume
Configuration Configuring the handset Setting the ringer volume 1. Press <MENU> then use <UP/DOWN> to select PERSONAL SET. 2. Press <OK> then use <UP/DOWN> to select HANDSET TONE. 3. Press <OK> and select RING VOLUME. 4. Press <OK> then use <UP/DOWN> to select the desired volume level (you can set ringer volume from 1 to 4, or mute the ringer). -
Page 18: Changing The Pin Code
Changing the PIN code The 4-digit PIN code is required for changing the settings and for registering/de-registering handsets. The default PIN code is “0000”. 1. Press <MENU> then use <UP/DOWN> to select ADVANCED SET. 2. Press <OK> then use <UP/DOWN> to select CHANGE PIN. 3. -
Page 19: Changing The Recall Time
3. Use <UP/DOWN> to select AUTO PREFIX and then press <OK>. 4. Use <UP/DOWN> to select DETECT DIGIT in order to enter the detection string then press <OK>. The last stored number (if available) is displayed. Enter detection string (maximum 5 digits) and press OK to confirm. -
Page 20: Answering Machine
Answering Machine Answering machine operation by handset You can use the answer machine menu on the handset to access and change the settings for all the answering machine functions. Turn the answering machine on or off 1. Press MENU key to enter menu selection. 2. -
Page 21: Answering Machine Settings
Delete all messages Press Menu to select Answering machine Press OK button, LCD display “Play” Press Up or down button to select Delete all Press OK button LCD display “Confirm” Press OK button again to delete all message Delete message Press Menu to select Answering machine Press OK button, LCD display “Play”... -
Page 22: Set The Ogm Voice Language (Optional)
The remote feature lets you perform the following functions: Once communication is established with the answering machine, you can do one of the following by pressing the buttons: Keys Description Go back to last message Play the message Skip to the next message Delete the playing message Turn on Answer and Record and play OGM (Ans &... -
Page 23: Troubleshooting
Troubleshootings Problem Possible Causes Suggestions No dial tone in the 1. The telephone base is not connected 1. Check the mains and telephone line cordless handset. properly. connections. 2. The handset is too far from the 2. Get closer to the telephone base. telephone base. -
Page 24: Declaration Of Conformity
Used batteries shall be deposited at an appropriate collection point. Never dispose of batteries with household waste. Imported by ADMEA, 12 Rue Jules Ferry, 93110 Rosny sous bois, France. THOMSON is a trademark of Technicolor SA used under license by ADMEA.
