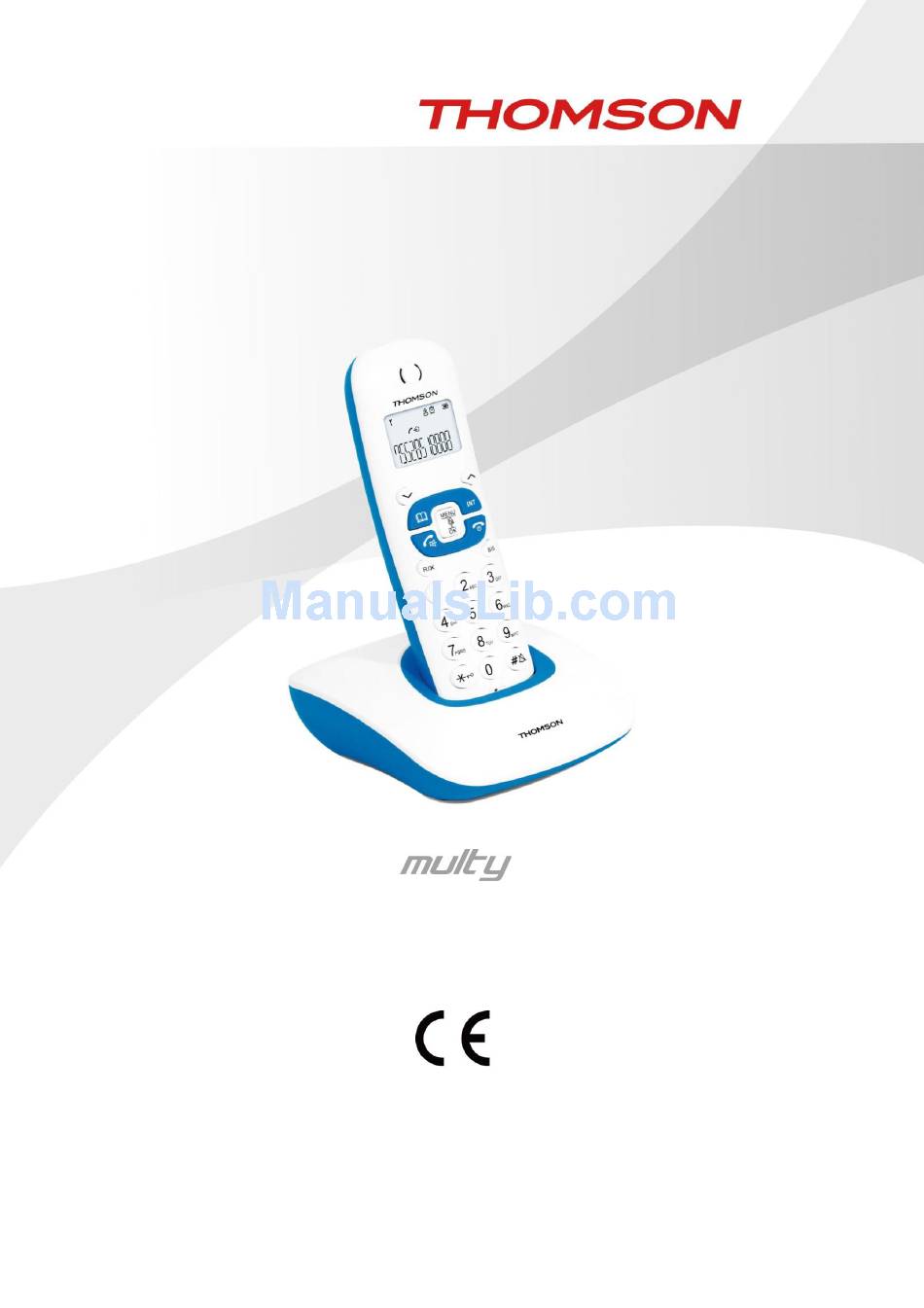

Page 1: Digital Cordless Telephone
Digital Cordless Telephone User Manual TH-500DBK/TH-500DBE/TH-500DRD TH-500DGN/TH-500DOE Please read and retain these instructions... -
Page 2: Table Of Contents
Summary Getting started Important Installing the telephone base Operating range of the handset Signal strength Installing and charging the batteries Low battery warning Battery performance Package contents Presentation of your telephone Handset LCD screen of the handset Menu Operation Switching on/off the handset Menu setting Phone book Call log... -
Page 3: Getting Started
Getting started IMPORTANT SAFETY INSTRUCTIONS Please read carefully and keep these instructions with the product Important To reduce the risk of fire, electric shock and injury, always observe the following basic precautions when • using your telephone: This appliance is intended for indoor use only. •... -
Page 4: Installing The Telephone Base
Installing the telephone base The telephone base should be placed at least 1 meter away from other electrical appliances in order to avoid interference. The handset exchanges radio signals with the telephone base. The strength of these signals depends on the position of the base. You can obtain a stronger signal by placing the base higher. -
Page 5: Package Contents
When you are not using your handset, place it on the charger so that you can always have fully charged batteries. WARNING DO NOT USE STANDARD OR ALKALINE BATTERIES. THEY MAY EXPLODE AND CAUSE INJURY. ONLY USE RECHARGEABLE NI-MH BATTERIES AS INDICATED IN THIS USER MANUAL. -
Page 6: Presentation Of Your Telephone
Presentation of your telephone Handset... -
Page 7: Lcd Screen Of The Handset
ICON DESCRIPTION FUNCTION DEFINITION When there is new call coming, press this key to receive the call. Talk / H.F During conversation, press this key to transfer handset and hands-free mode. Entry to the menu functions from idle mode; Confirming selections & actions. MENU/MUTE/OK MENU/ /OK In talk mode press the key to perform mute function. - Page 8 Icon Description Function The antenna icon will always be shown on the LCD, it indicates for signal strength, flashes when the handset is out of range, disappear ANTENNA when registration to base is lost. The icon will be displayed when the user has pressed TALK key OFF HOOK The alarm icon will be shown as steady on when the alarm is set.
-
Page 9: Menu Operation
Menu Operation SWITCHING ON/OFF THE HANDSET When your handset is off, press and hold the red key until the screen turns on. To switch off the handset, press and hold the red key until the screen turns off. NOTE If you do not modify the password yourself, all the passwords in this manual are default as 0000. MENU SETTING On idle screen, press the MENU/ /OK key to enter the menu setting, those are five sub-menus under the handset menu item. -
Page 10: Phone Book
Press ∧ or ∨ key to review the above items and then press MENU/ /OK key to confirm. Press to quit the setting state, or press (Phonebook/BACK) to back to the previous menu. PHONE BOOK Each individual Handset has its own phonebook, independent of each other handset, with a maximum of 50 entries, each name a maximum of 12 characters, each number a maximum of 20 digits and a melody selected between 1 and 10. -
Page 11: Call Log
Press ∧ or ∨ key to select EDIT RECORD item. This function allows the user to modify a phonebook record. 1) Press MENU/ /OK key to enter, the first record in the phone book will be displayed. 2) Press ∧ or ∨ key to select the designated record to change. Once a record has been selected, the user will have the option to edit each of the name/number and change melody. - Page 12 2) Press MENU/ /OK key to enter, the user will be prompted to enter the PIN code. 3) Input the correct 4-digit pin code using digit key. 4) Press ∧ or ∨ key to scroll the handset names list up and down. 5) Press MENU/ /OK key to confirm.
-
Page 13: Handset Settings
BASE DEFAULT This function allows the user to restore the base setting to the factory default. 1) Press MENU/ /OK key, then using ∧ or ∨ key to select BS DEFAULT item. 2) Press MENU/ /OK key to confirm. 3) The user will be prompted to enter the PIN CODE, the display shows PIN?, then press numerical keys to input code. - Page 14 1) Press MENU/ /OK key, then using ∧ or ∨ key to select “RING SETUP” item. 2) Press MENU/ /OK key to enter. 3) Press ∧ or ∨ key to select the INT RING and EXT RING setup. 4) Press MENU/ /OK key to confirm. 5) Press ∧...
- Page 15 3) Press ∧ or ∨ key to select the language. Each language will display in its own native translation. 4) Press MENU/ /OK key to confirm your selection. HANDSET NAME The operation will allow the user to change the handset name 1) Press MENU/ /OK key.
-
Page 16: Registration
DATE & TIME The user is able to set the date and time on the handset, by selecting the following option. Press MENU/ /OK key to enter date and time settings. 1) Press MENU/ /OK key. Using ∧ or ∨ key to select DATE&TIME, 2) Press MENU/ /OK key and the last two digits of the year flashes. -
Page 17: Handset And Hands-Free Mode
1) In standby mode, press MENU/ /OK key, then using ∧ or ∨ key to select REGISTERATION item. 2) Press MENU/ /OK key to enter. Press ∧ or ∨ key to select BASE from BASE1, BASE2, BASE3 or BASE 4. 3) Press MENU/ /OK key to confirm, LCD displays PIN? Then enter the pin code (defaulted as 0000, if input wrong number, press R/×... -
Page 18: Caller Id - Type I & Ii
Caller ID – type I & II TYPE I After you have applied the caller ID service, you can see the caller phone number during an incoming ring. TYPE II During the conversation, the phone number of the incoming call of the second caller can be seen in the unit. -
Page 19: Review /Delete /Call Back Outgoing Numbers
Delete When the desired number displayed on LCD, press R/× key one time to delete it. Call back When the desired number is shown, press key to dial out the number. Review /delete /call back outgoing numbers Review In standby mode, press ∨... -
Page 20: Intercom
Intercom The intercom feature is activated by pressing the INT key. 1. In idle mode, press INT key once. 2. The user will be prompted to select the number of the internal handset with which you wish to connect. 3. The destination handset will ring. Press the key to enter conversation mode. -
Page 21: Troubleshooting
Trouble shooting LCD become dim Adjust LCD contrast, if the LCD is still dim, charge the batteries. Ring volume too low Check if the ringing volume is set improper, reset it. Receive only Check if you have set the barring number, if you want dial out this number, reset the barring number. -
Page 22: Declaration Of Conformity
Used batteries shall be deposited at an appropriate collection point. Never dispose of batteries with normal household waste. Imported by ADMEA, 12 Rue Jules Ferry, 93110 Rosny sous bois, France. THOMSON is a trademark of Technicolor SA used under license by ADMEA.
