Summary of Contents for Hoover Nextra iconic

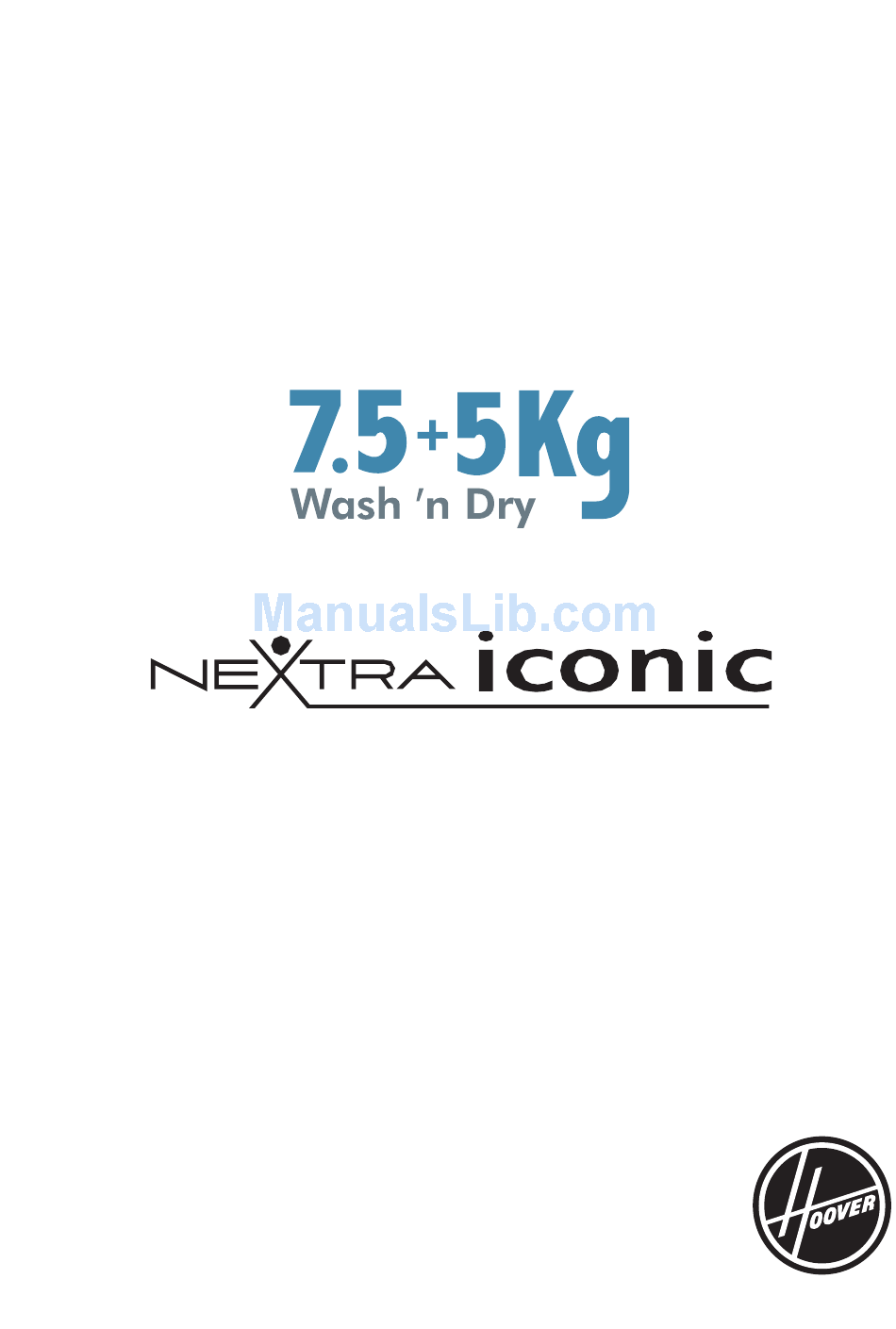

- Page 1 Instruction Book Sensor Washer Dryer Optima Wash System English ®...
-
Page 2: Table Of Contents
Contents Introduction ........3 Delivery information ....... . 3 Do’s . -
Page 3: Introduction
Introduction Check that no damage has occurred to the machine during transit. Please read and follow these instructions carefully and If it has, call for service operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance by GIAS. -
Page 4: Unpacking The Product
Unpacking the product Remove the machine from its packaging close to the final location of the machine. Cut carefully around the base of the packaging. Lay the machine on its back and remove the base and the two polystyrene spacers on each side of the machine. We recommend that a second person assist in the lifting and manoeuvring of the machine. - Page 5 Remove the four retaining screws in the transit bar and pull out the transit bracket. We recommend you keep the transit bracket and screws to protect the machine for future transit. The manufacturers will not be responsible for any damage to the machine caused by not following the instructions relating to releasing the transit protection.
-
Page 6: Installation
Take the two plastic fixing clips and fix the base panel to the base of the machine. Bring the machine back to the upright position. Cover the central hole in the rear of the machine with the cap enclosed in the instruction bag. European directive 2002/96/EC This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment... -
Page 7: Electricity Supply
Electricity supply You may be charged for a service call if a Washing machines are supplied to operate at a voltage of 240V, 50 Hz single phase. Check that the supply circuit is rated problem with your to at least 13A. machine is caused by The plug is already equipped with a 13A fuse which is BS 1362 incorrect installation. -
Page 8: Connecting To The Cold Water Supply
Connecting to the cold water supply Only one hose is required to install this machine to a cold This Appliance water supply. Cold fill is an energy efficient system. Only the water required must be to wash the laundry is heated. There is no loss of heat in the pipeline from the hot water tank or the boiler. -
Page 9: Connection Of The Machine To The Drain
Connection of the machine to the drain This machine must be connected in accordance with the water supply regulations. Water byelaws prohibit connection to a surface water drain. Decide which plumbing option suits you best then follow the instructions below. All machines are tested with water prior to leaving the factory so a small amount of water may remain in the drum and drain hose. -
Page 10: Moving The Machine Into Position
Moving the machine into Do not drag or lift the position machine by its door. Your machine is heavy so care must be taken when moving it. We recommend that two people move the machine to avoid strain and possible injury. ●... -
Page 11: Washing And Drying Advice
Washing and Drying advice The following tips are designed to assist in getting the best results from your machine whilst using it in the most environmentally-friendly and economical way. It is also important to understand the items to avoid in your laundry, to ensure the continued safe and reliable operation of your machine. -
Page 12: Drying
Drying In addition to the above advice the guidelines below must be followed when drying the clothes. Sort the load for drying: ● By care symbols: On the collar or inside seam: Suitable for tumble drying. Tumble drying at high temperature. Tumble drying at low temperature only. -
Page 13: The Dispenser
The Dispenser COMPARTMENT I COMPARTMENT Prewash detergent Fabric Conditioner Maximum dosage 100ml Maximum dosage 100ml of powder COMPARTMENT II Mainwash detergent Maximum dosage 200ml of powder DO NOT exceed the maximum detergent dosage Detergent dosage Only use detergents which are suitable for use in a washing machine. You will obtain the best results from your wash with the minimum use of chemical products, and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose. -
Page 14: Dispensing Instructions
Dispensing instructions The detergent drawer is split into 3 compartments: ● the first, labelled "I", is for detergent utilised during Prewash. ● the second, labelled "II", is for detergent utilised during the main wash. ● the third, labelled is for special additives such as fabric softeners, fragrances, starch, brighteners etc. -
Page 15: Using Inter@Ct 3D For The First Time
Using Inter@ct 3D for the first time This machine will operate even if you do not programme the Inter@ct set-up. However, this machine has Delay Start and Programme Set End Time functions and for these functions to work efficiently the Inter@ct 3D must be programmed. - Page 16 To enter the menu Hold down the Sensitive Care and the Delay Start buttons together for 5 seconds or until the beep sounds. The menu options can be changed by pressing the Sensitive Care button. To confirm and enter an option press the Delay Start button.
- Page 17 Enable Memory (default setting – NO) This is a useful feature if you frequently wash laundry using the same programme. Selecting Enable Memory will tell the machine to remember the last programme/functions used and set them in the memory. This feature works only on the Cottons, Delicates, Synthetics and Woollens programmes.
-
Page 18: The Control Panel
The Control Panel INTER@CT Delay Start/ Programme Child Lock Display Set End Time Selector Drying Options Spin Time Stain Wash Sensitive Start Speed Saver Blaster Temp Care Pause The programme selector must be return to the OFF position to reset the controls between each wash cycle. - Page 19 Start Pause Start After selecting the programme and the required options (see the Wash Options section of this manual), press the Start Pause button once to start the wash cycle. The display will indicate that the door is locked and the machine will begin to sense the wash load and ask you to wait. PLEASE WAIT SET PARAMETERS After the appropriate parameters have been programmed by the machine the display will indicate the...
-
Page 20: Wash And Dry Options
After about two minutes the display will then change to the following, which means that the door can now be opened: PAUSED PROGRAM DOOR OPEN To restart the programme, close the door and press the Start Pause button. Cancelling and changing the programme To cancel the programme the programme selector should be turned to the OFF position. -
Page 21: Time Saver
COTTON WHITE HEAVY SOIL Spin Speed ÷ 100 rpm; so in this example 11 = 1100 rpm The light on the option button will come on if a spin speed lower than that stated in the programme guide has been selected. Time Saver This option can be used on the Cottons (Cottons, Colourfast, Non-fast) and Synthetics programmes. - Page 22 Drying Option Selecting the Drying Programme The Hoover Sensor Washer Dryer gives many options for drying the laundry to suit all circumstances. Drying may be completed as a separate programme selected using the Programme Selector (High Dry/Low Dry) and the Drying Option button. It may also be completed as part of an automatic Wash'n Dry programme by selecting the desired wash programme using the programme selector and the drying programme via the Drying Option button.
-
Page 23: Drying Time Guide
Cancelling or Changing the Drying programme To cancel the drying programme press the Drying Option button for more than 5 seconds, 0 will appear on the display following this action. Once the drying programme has started the timed setting can be reduced (not increased) by pressing the Drying Option button. -
Page 24: Delay Start
If the Absolute Time Mode has been selected at the menu set-up stage and you wish to delay the start of the programme until 08.00, the display will appear as follows: PROGRAM START 08:00 If the Relative Time Mode has been selected at the menu set-up stage and you wish to delay the start of the programme by 4 hours 30 minutes, the display will appear as follows: DELAY START 2. -
Page 25: Automatic Features
When using the Delay Start/Set End Time functions, detergents must only be put in the dispenser drawer. Adding detergents etc. to the drum and then leaving them to stand for a long period of time may damage your laundry. Child Lock This is a useful feature to prevent children playing with the option buttons and tampering with the programme you have set. -
Page 26: Programme Selector
Programme Selector For handling the various types of fabric and their level of soiling in your laundry the washing machine has different programme groups according to type of wash, temperature, spin speeds and duration (see Programme Guide). Cottons The Cottons programmes are designed for maximum washing and rinsing. -
Page 27: Daily Programmes
Woolmark This is a programme dedicated to washing fabrics labelled with the woolmark symbol . The cycle consists of alternate periods of activity and pauses. Washing and rinsing are carried out using a high water level to provide the best results. The programme has a maximum temperature of 30°C and concludes with 3 rinses, one for fabric conditioner, and a short spin at 800rpm. -
Page 28: Programme Guide
Programme Guide Automatic Drying Cycle Maximum Maximum Maximum Load Water Drying High Programme Fabric Type Size (kg) Temp (°C) Load available Cottons Cottons, linen & Prewash ✔ ✔ Colourfast Cotton, colourfast mixed fibres Non-fast Cottons, mixed fabrics, ✔ Coloureds Non-fast AA40 ✔... -
Page 29: A Typical Wash And Dry Cycle
A Typical Wash and Dry Cycle This section summarises the main points when completing a Liquid detergents and wash cycle. For detailed explanations of features, options and details of the machine refer to the relevant section in the some concentrated instruction manual. -
Page 30: Starting The Cycle
Starting the Cycle Press the Start Pause button. The Inter@ct 3D screen will indicate that the machine is setting the wash parameters and then after a few seconds the wash programme will begin. The display will then indicate the time to the end of the cycle and the current phase of the cycle (i.e. -
Page 31: Cleaning And Routine Maintenance
Cleaning and Routine Maintenance The washing machine needs very little maintenance, but regular attention to a few small details will ensure the continued performance of your washing machine. Do not use abrasive cleaners, scouring pads, solvent based cleaners or polishes; wiping the outside of the machine with a damp cloth will suffice. -
Page 32: Cleaning The Filter
Cleaning the filter The washing machine is fitted with a special filter to prevent items such as coins, buttons, etc. blocking the discharge hose. These may be retrieved by: Removing the kickplate by gently pulling it from the bottom in an outwards and upwards direction. Use the kickplate to collect the water still in the filter. -
Page 33: Troubleshooting
Troubleshooting What might be the cause of... Defects you can remedy yourself Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call GIAS Service (tel: 08705 400 600), they may be able to assist you over the telephone. - Page 34 The machine is noisy or vibrates a lot during the cycle… ● Has the transit system been fully removed? Check that the bracket and the polystyrene packing have been taken off the machine. ● Are there any loose items in the pockets of clothing that can rattle in the drum and cause damage? ●...
-
Page 35: Power Failure
Power Failure If there is a power failure the wash cycle will be interrupted, and the wash programme and functions will be suspended. When the power is restored, the wash programme and functions will re-start from the same point and complete the programme. -
Page 36: Customer Service
For a period of one year from the date of purchase the appliance is covered by a guarantee which allows you to call Hoover Service free of charge (except for the price of the call). Phone GIAS on 08705 400 600 Remember to send off the guarantee certificate for validation within 10 days of the date of purchase. -
Page 37: Your Guarantee
Your Guarantee Hoover guarantees all parts of this product for 5 years from the date of purchase. During that time Hoover will replace or repair all defective parts free of charge, except for parts subject to fair wear and tear such as belts. The call out fee and labour costs are chargeable after the first 12 months. - Page 38 40003408...
