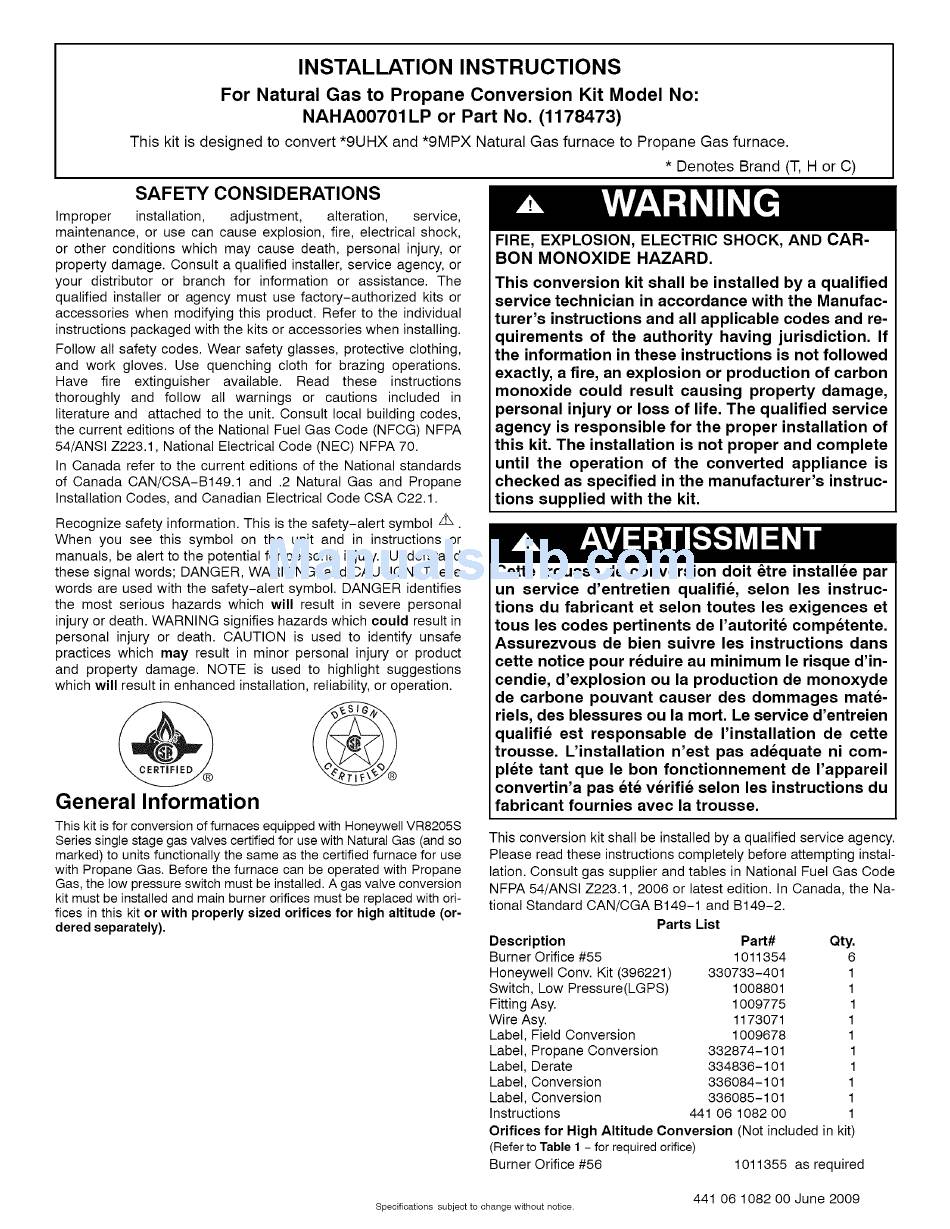

INSTALLATION INSTRUCTIONS
For Natural Gas to Propane Conversion Kit Model No:
NAHA00701LP or Part No. (1178473)
This kit is designed to convert *9UHX and *9MPX Natural Gas furnace to Propane Gas furnace.
* Denotes Brand (T, H or C)
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service,
maintenance, or use can cause explosion, fire, electrical shock,
or other conditions which may cause death, personal injury, or
property damage. Consult a qualified installer, service agency, or
your distributor or branch for information or assistance. The
qualified installer or agency must use factory-authorized kits or
accessories when modifying this product. Refer to the individual
instructions packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Use quenching cloth for brazing operations.
Have fire extinguisher available. Read these instructions
thoroughly and follow all warnings or cautions included in
literature and attached to the unit. Consult local building codes,
the current editions of the National Fuel Gas Code (NFCG) NFPA
54/ANSI Z223.1, National Electrical Code (NEC) NFPA 70.
In Canada refer to the current editions of the National standards
of Canada CAN/CSA-B149.1 and .2 Natural Gas and Propane
Installation Codes, and Canadian Electrical Code CSA C22.1.
Recognize safety information. This is the safety-alert symbol /_ .
When you see this symbol on the unit and in instructions or
manuals, be alert to the potential for personal injury. Understand
these signal words; DANGER, WARNING, and CAUTION. These
words are used with the safety-alert symbol. DANGER identifies
the most serious hazards which will result in severe personal
injury or death. WARNING signifies hazards which could result in
personal injury or death. CAUTION is used to identify unsafe
practices which may result in minor personal injury or product
and property damage. NOTE is used to highlight suggestions
which will result in enhanced installation, reliability, or operation.
General Information
This kit is for conversion of furnaces equipped with Honeywell VR8205S
Series single stage gas valves certified for use with Natural Gas (and so
marked) to units functionally the same as the certified furnace for use
with Propane Gas, Before the furnace can be operated with Propane
Gas, the low pressure switch must be installed. A gas valve conversion
kit must be installed and main burner orifices must be replaced with ori-
fices in this kit or with properly sized orifices for high altitude (or-
dered separately),
FIRE, EXPLOSION, ELECTRIC SHOCK, AND CAR-
BON MONOXIDE HAZARD.
This conversion kit shall be installed by a qualified
service technician in accordance with the Manufac-
turer's instructions and all applicable codes and re-
quirements of the authority having jurisdiction. If
the information in these instructions is not followed
exactly, a fire, an explosion or production of carbon
monoxide could result causing property damage,
personal injury or loss of life. The qualified service
agency is responsible for the proper installation of
this kit. The installation is not proper and complete
until the operation of the converted appliance is
checked as specified in the manufacturer's instruc-
tions supplied with the kit.
Cette trousse de conversion dolt 6tre install6e par
un service d'entretien qualifie, selon les instruc-
tions du fabricant et selon toutes les exigences et
tous les codes pertinents de rautorite competente.
Assurezvous de bien suivre les instructions dans
cette notice pour r6duire au minimum le risque d'in-
cendie, d'explosion ou la production de monoxyde
de carbone pouvant causer des dommages mate-
riels, des blessures ou la mort. Le service d'entreien
qualifi6 est responsable de rinstallation de cette
trousse. L'installation n'est pas ad6quate ni com-
pl6te tant que le bon fonctionnement de rappareil
convertin'a pas 6te verifi6 selon les instructions du
fabricant fournies avec la trousse.
This conversion kit shall be installed by a qualified service agency.
Please read these instructionscompletely before attempting instal-
lation. Consult gas supplier and tables in National Fuel Gas Code
NFPA 54/ANSI Z223.1, 2006 or latest edition. In Canada, the Na-
tional Standard CAN/CGA B149-1 and B149-2.
Parts List
Description Part# Qty,
Burner Orifice #55 1011354 6
Honeywell Conv. Kit (396221) 330733-401 1
Switch, Low Pressure(LGPS) 1008801 1
Fitting Asy. 1009775 1
Wire Asy. 1173071 1
Label, Field Conversion 1009678 1
Label, Propane Conversion 332874-101 1
Label, Derate 334836-101 1
Label, Conversion 336084-101 1
Label, Conversion 336085-101 1
Instructions 441 06 1082 00 1
Orifices for High Altitude Conversion (Not included in kit)
(Referto Table 1 - for required orifice)
Burner Orifice #56 1011355 as required
441 06 1082 00 June 2009
Specifications subject to change without notice.
