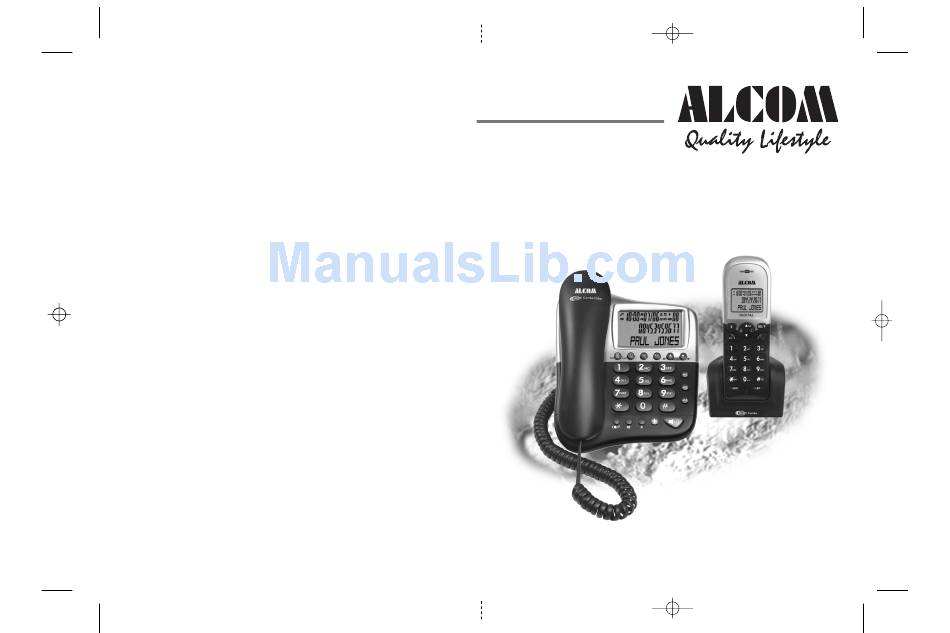

USER GUIDE

Concept Combo 2300
CORDED AND
DIGITAL CORDLESS
TELEPHONE
Before operating this set,
Singapore ALCOM Ver1, Jul 09
please read these instructions carefully.
Note:This guide is for the corded part only. For instructions on how to use
the cordless part see the "Combo 2300 Cordless Handset" user guide.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Concept Combo 2300 and is the answer not in the manual?

Questions and answers

Related Manuals for ALcom Concept Combo 2300

Summary of Contents for ALcom Concept Combo 2300

  • Page 1: User Guide

    DIGITAL CORDLESS TELEPHONE Before operating this set, Singapore ALCOM Ver1, Jul 09 please read these instructions carefully. Note:This guide is for the corded part only. For instructions on how to use the cordless part see the "Combo 2300 Cordless Handset" user guide.
  • Page 2 Important note — emergency calls The CC2300 cordless handset is not designed for making emergency calls when the mains power fails. But, if there’s a power failure, you can use the base unit telephone to make an Emergency Call, by lifting up the corded handset instead of using the speakerphone.

  • Page 3: Where To Find It

    Where to find it e(DEL) Delet Pres s to delete messages, memos, stored numbers or Call er Display records. Up-Down(CDS) Intercom Press to access the Caller display records Press to make an intercom LCD Display and scroll through them call or to transfer a call Press to change earpiece speakerphone volume Press to scroll through the...

  • Page 4: What's On The Display

    What's on the display? The display of your telephone contains one line with the Time/Date and Icons, one line of numbers and one line of text. Number field: shows the telephone numbers Character field: shows the Menu, name and status of a call What do the symbols mean? Talk This will display when the user picks up the...

  • Page 5: Table Of Contents

    Contents Page Page Where to find it To delete a contact in the phonebook 13 To delete all contacts in your phonebook What’s on the display? What the symbols mean? To edit a contact in your phonebook 14 To store a last number redial in your Read First before Use phonebook Choosing a site for base unit and...
  • Page 6 Technical Details Connection and conditions for use. You can connect your Concept Combo 2300 to a direct exchange line (DEL) - a line connected to a local exchange, with its own phone number; to an extension on an approved compatible PBX. Do not connect the Concept Combo 2300 as an extension to a payphone.

  • Page 7: Read First Before Use

    Contact the ALCOM helpline. it is away from hot, humid conditions and strong sunlight...

  • Page 8: Installation And Set-Up

    Installation and Set-up 1/ Choose a suitable site for the base unit (see page 5) 2/ Connect the mains power lead and the telephone line cord into the base unit Plug one end of the telephone line cord into the jack on the back of the base (the other end will plug into the telephone wall socket later) See the note...

  • Page 9: Desk/Wall Mount Installation

    Desk/Wall mount installation To place the CC2300 on a desk, connect Desk Mount the stand to the bottom of the phone in the slots near the rear of the base as shown below. Insert the rigid clips of the stand into the slots on the bottom of the phone (nearer the centre of the base ).
  • Page 10 Desk/Wall mounting continued... Insert the rigid clips of the stand into the slots on the bottom of the phone (nearer the centre of the base). Press down firmly until the flexible clips clicks into place. To remove the stand, (1) pinch the flexible clips, (2) pull back the stand, and then (3) slide up and forward as shown below.

  • Page 11: Basic Settings

    Basic settings To set Date and Time Note:If you subscribe to Caller Display (see page 17) your CC2300 time and date settings will be automatically updated by the network when you receive an incoming call. The Caller Display service only sends the month and date, not the year, so you may still need to set the year, as this is used to calculate the day If the time and date are set on the cordless handset, it will automatically be set on the base unit, and vice-versa.

  • Page 12: Making And Answering Calls

    Making and answering calls To make a call Pick up the handset and the TALK icon will appear,or press a call SPEAKERPHONE button and the SPEAKERPHONE icon will appear. Also the display will show “LINE IN USE”. Use the keypad to enter the number you wish to dial. When you have finished the call place the handset back on the base.

  • Page 13: To Mute Or Un-Mute The Microphone

    To Mute or Un-mute the microphone During a call press the MENU/OK button and the display will show “CALL MUTED”. To un-mute, press the MENU/OK button and the display will show “LINE IN USE”. To change the earpiece or speakerphone volume during a call During a call press the UP button to increase or DOWN button to decrease the Volume.

  • Page 14: Memory/Phonebook Management

    Memory/Phonebook management How to enter characters? To enter the characters, press the button where you see the character e.g. if you want to insert the letter ‘A’ you press ‘2’ if you want to insert the letter ‘B’ you press twice and for ‘C’, three times etc.

  • Page 15: To Create A Contact In Your Phonebook

    To create a contact in your phonebook The Phonebook can store up to 150 names (maximum 12 characters) and numbers (maximum 20 digits) in the memory. Also, you can select a different ringer melody for each entry, but this will only work if you subscribe to CID (see page 17).

  • Page 16: To Delete All Contacts In Your Phonebook

    Use the UP or DOWN buttons to scroll through the list until you see the contact you want to delete. Press the MENU/OK button and the display will show “CONFIRM?”. Press the MENU/OK button to confirm if you really want to delete this entry, or press the PHONEBOOK/CANCEL to save the contact.

  • Page 17: To Store A Last Number Redial In Your Phonebook

    Once you have finished press MENU/OK button to confirm and the display will show “MELODY 1”. Scroll UP or DOWN to select a melody. Then press the MENU/OK button to confirm, and the display will go back to the previous menu. To store a last number redial in your phonebook Press the REDIAL/PAUSE button to review the last number redial list.

  • Page 18: Making Calls From The Phonebook

    Making calls from the phonebook Either press the PHONEBOOK/CANCEL button once, or the MENU/OK button three times, and you will see the 1st number and name in the phonebook. Scroll UP or DOWN to select the name and number of the person you want to call.

  • Page 19: Caller Display (Cds)/Caller Id (Cid)

    Caller Display (CDS) / Caller ID (CID) To subscribe to this feature, you need to contact your service provider, and there may be a charge for this service . Caller Display lets you see the phone numbers of your callers on the display, before you answer.

  • Page 20: To Delete A Caller Id Record

    To delete a Caller ID record Repeat the steps above to review the CID list, and to locate the record you want to delete. Press the MENU/OK button, to see ADD to PB? Press the DOWN button, to see DELETE? Press the MENU/OK button twice, you will hear the completion tone and the display will return to the Caller ID list.

  • Page 21: Ringer Volume, And Melody

    Ringer volume, melody To change ringer volume You can adjust the volume level of the intercom ringer (INT RING) and the external call ringer (EXT RING) independently, with settings from 1 (quietest) to 5 (loudest), or turned OFF. Press the MENU/OK button. Scroll DOWN until you see “SETTINGS”.
  • Page 22 Then press the MENU/OK button. Scroll DOWN until yiu see “RING SETUP”. Press the MENU/OK button. Then it will display “INT RING” or scroll DOWN to select “EXT RING”. Press the MENU/OK button. The display will show “MELODY”. Then press the MENU/OK button to select and the display will show “MELODY 1”.

  • Page 23: Using Multi-Handset

    Using a multi-handset system To Make Intercom calls Press the INTERCOM button. If you have only one cordless handset registered to the base, the display will show "CALLING HS1" and the base will beep. If you have more than one handset registered to the base, the display will show "HS?"...

  • Page 24: To Set Up A Three-Way Conference

    If the handset does not answer within 30 seconds, the transfer will be cancelled and the external call reconnected to the base. Alternatively, once the intercom ringing starts and the display shows, for example, "CALLING HS1", you can hang-up the phone to transfer the call automatically.

  • Page 25: Handset Registration

    Page / locate a handest Press the INTERCOM button. If you have only one cordless handset registered to the base, the display will show "CALLING HS1" and the base will beep. If you have more than one handset registered to the base, the display will show "HS?"...
  • Page 26 To de-register a handset You may need to do this if you need to replace a faulty handset. Call the ALCOM help line if you need more advice. To de-register a handset using the CC2300 base menu With the base in idle mode: 1.

  • Page 27: Sos Call Function

    SOS call function The SOS call function is very useful for people at home to make an emergency call to ask for help from their relatives, police, doctor, etc. How SOS call function works for more than 2 seconds. Press and hold SOS button The line is automatically seized and dials to each of the pre-stored SOS numbers, will wait for 1 minute and then drop the call.

  • Page 28: Advanced Use Of Your Phone

    Advanced use of your phone To Turn on/off key tone Press the MENU/OK. Scroll DOWN until you see “SETTINGS”. Press the MENU/OK and then you will see “DELETE HS”. Then scroll DOWN until you see “KEY TONE”. Press the MENU/OK and the display will show “ON”. Press the UP or DOWN button to select ON or OFF on the display.

  • Page 29: To Set Dialling Mode (Tone/Pulse)

    To Set Dialling Mode (Tone/Pulse) The default setting of this CC2300 telephone is TONE (also called Touch Tone, MF or DTMF). However, for some old telephone lines or PABX systems you may need to change the dialling mode from Tone to Pulse. Press the MENU/OK .

  • Page 30: To Change The Pin Code

    To Change the PIN code Some functions (including handset registration) require a PIN code. The default PIN is 0000, but you are able to change to your personal 4-digit PIN. Press the MENU/OK button. Then scroll DOWN until you see “SETTINGS”. Then press the MENU/OK button.

  • Page 31: Troubleshooting

    Troubleshooting ALWAYS check You have followed all the steps listed onpages 5 & 6 to install first that: and set up your CC2300 All connectors are firmly inserted in their sockets Mains power to the base unit is switched on at the socket The handset’s batteries are correctly and securely installed and are not run down Everyday use...
  • Page 32 If the call now works, the adapter may be faulty. If you cannot make a call, the fault may be on the exchange line. Contact the service provider. If you still cannot identify the cause of the problem, contact ALCOM (65) 6841 2668.

  • Page 33: Declaration Of Conformity

    Declaration of conformity The telephone complies with the essential protective requirements and objectives of: EC R&TTE Directive 1999/5/EC EC Low Voltage Directive 2006/95/EC EC EMC Directive 89/336/EEC and conforms to the following relevant harmonised standards: I Radio: EN 301406 I EMC: EN 301489-1, EN 301489-6 I Safety: EN 60950-1: 2006 The conformity to the requirements is validated by the symbol.

  • Page 34: Cleaning And Care

    Every effort has been made to ensure high standards of reliability for your CC2300. However, if something does go wrong, please do not try to repair it yourself – consult your supplier or the ALCOM Helpline. Guarantee and service Note: Due to continuous product development all features and specifications are subject to...

  • Page 35: Technical Details

    Technical details Standard Cordless Telecommunication Frequency 1.8GHz Operating range Up to 300m outdoors; up to 50m indoors Operating time Standby: 150 hours Talking: 9 hours Battery charge time: 24 hours Temperature range Operating 0 ºC to 40 ºC Storage -20 ºC to 60 ºC Electrical power HANDSET –...
