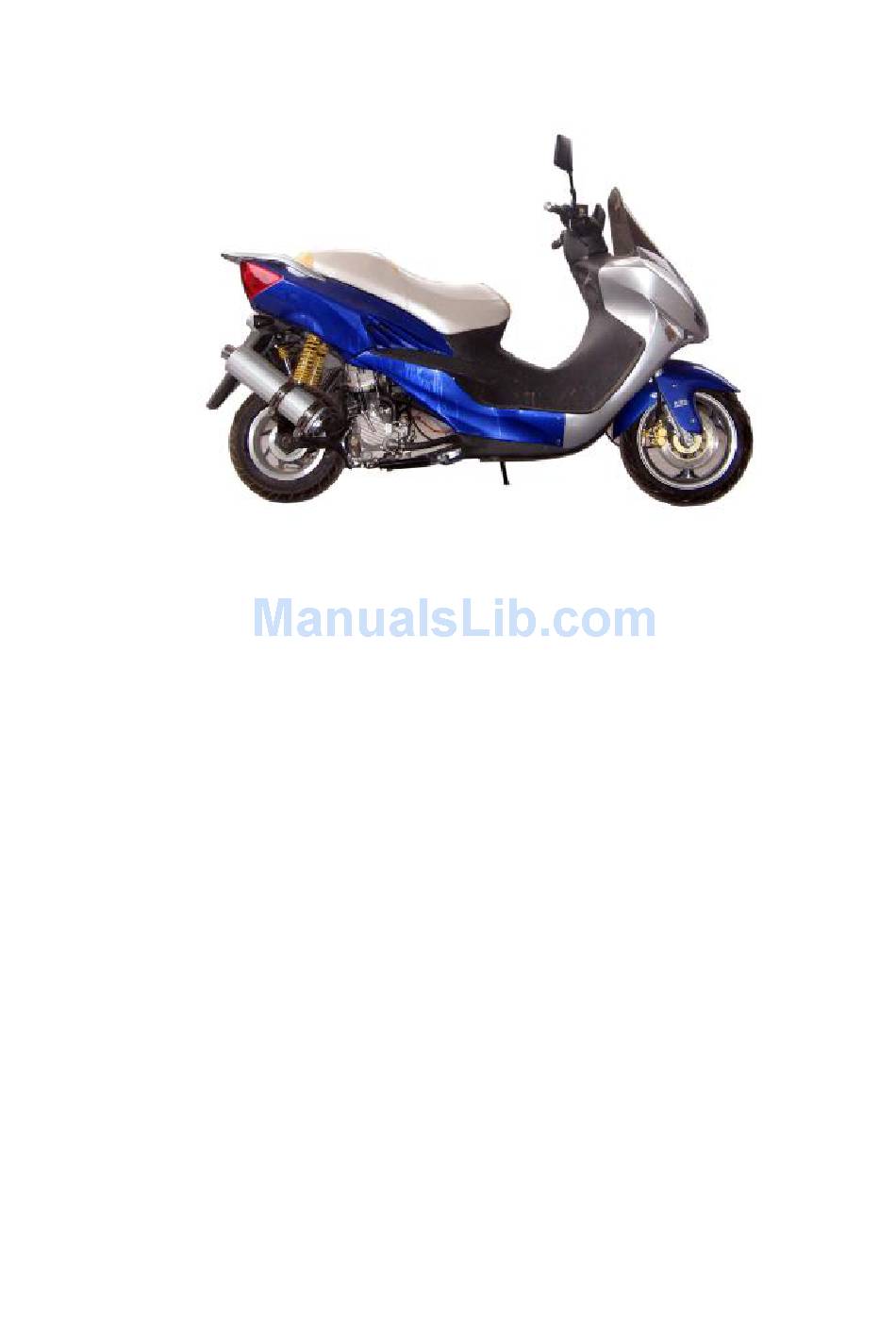

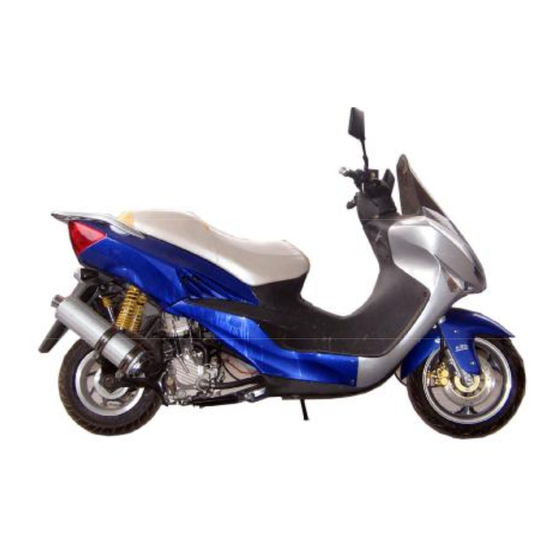

Motorcycle Operating Manual Model:WY250T-3
Thanks for your purchasing the motorcycle WY250T-3, and sincerely
welcome you to be our motorcycle user. To enjoy a more safe and
pleasurable driving, at first please familiarity with the manual must
carry on before driving. Your personal safety depends not only the
vigilance and familiar operation skills, but also relates to whether you
are familiar with the mechanical performance. Before driving, check-up
and periodical maintenance are basic requirement. If maintenance and
repair needed, go to our service center for help. If you know the
mechanic knowledge and have the tools, the dealer can offer you help
with the maintenance and repair, like providing the parts catalogue and
the spare parts.
This manual explains in detail the correct operation and maintenance,
together with the expectation for your long-time use. Modifications in
specification could cause the discrepancy with some figures and content
in the manual, we feel sorry for that and hold the final right of
interpretation.
Have a good enjoyment and thanks again for your purchasing.
USER MANUAL
PREFACE
Advertisement
Table of Contents
Related Manuals for WangYe WY250T-3
Summary of Contents for WangYe WY250T-3
- Page 1 USER MANUAL Motorcycle Operating Manual Model:WY250T-3 PREFACE Thanks for your purchasing the motorcycle WY250T-3, and sincerely welcome you to be our motorcycle user. To enjoy a more safe and pleasurable driving, at first please familiarity with the manual must carry on before driving. Your personal safety depends not only the vigilance and familiar operation skills, but also relates to whether you are familiar with the mechanical performance.
-
Page 2: Table Of Contents
The important points to attention Ÿ The driver and passenger This motorcycle was limited to one driver and one passenger (except children younger than 12 years old). Never exceed the Max load capacity of motorcycle. Ÿ For the safety, avoid driving the motorcycle in atrocious weather or cold weather (under -12℃). Ÿ... -
Page 3: Ⅰ.motorcycle Safe Drive
Ⅰ. Motorcycle safe drive Rules for safe drive 1. The motorcycle happen the many accident, all reasons are that the car drivers didn’t look at the motorcycle drivers. So the motorcycle drivers must: Put up the coat in bright color Avoid to the driving at night .you must drive on guard and carefully to the strong light. -
Page 4: Ⅲ.main Technique Parameter
Ⅲ. Main technique parameter Table 2 Item Item Data Data Front Tyre 2015×680×1210 130/160-13 L×W×H Wheelbase 1350 Rear Tyre 110/180-10 Ground Clearance mm Air Pressure of Fr tyre 200 kPa 250 kPa Dry weight 160kg Air Pressure of Rr tyre Max Load 150kg Transmission system... -
Page 5: Ⅳ.the Parts&Subassemblies And Manual
四、 The parts&subassemblies and manual The parts&subassemblies(fig2 fig3) Fr Brake Lever Meter and indicator Ignition Switch VIN Number Seat Box Battery Main Stand Nameplate Fig 2 - 5 - Rear Brake bar Fuel tank Handhold Seat Lock Air Filter Engine Number Side stand Fig3 Dashed（……）Indicate the not see parts directly。... -
Page 6: Fuel Meter
⑴ Speedo meter ⑵ Odometer ⑶main beam indicator ⑷Left Turning signal light ⑸Right Turning signal light ⑹Water temperature meter ⑺ Fuel meter (8)Time meter (9)Parking light FIG4 Ignition switch （Fig5） (1) On ( )-when the switch turn to this position, Start engine and do not pull out the key. -
Page 7: Starting Switch
： When it on the position, the front head light, tail light, position lighted instrument turn off. Starting Switch（2） （FIG8） Press this button to start engine （P16） Main beam switch（1） （fig9） FIG8 ”button，is high beam；Press“ ”button is low beam。 Press“ Turning signal light switch (2)（fig9）... -
Page 8: Ⅴ. Operation Instruction
Ⅴ. Operation Instruction Checking before driving: Checking before riding, For safety and prevent trouble or accident, pre-check up is necessary. GASOLINE When the pointer or fuel meter is close to red section, replenish fuel. Gasoline tank container: 7L Clock –wise to open the tank cover 2. (Fig 13) Fig 12 Suggestion gasoline: octane number is 90 Do not replenish fuel together with tidy or water... - Page 9 (10～20)mm FIG17 FIG16 Tire Check the tire pressure regularly and adjust. Check before the tire cooled Check if there any metal trash or gravel in the groove of tires WARNING: If the tire pressure dose not accord with the standard, it will properly cause the traffic accident. It is dangerous that use the worn tire, It will have effect to friction between tire and rode.
-
Page 10: Driving Motorcycle
Driving motorcycle: WARNING: Wear the trousers to avoid touching with exhaust pipe and was burnt. The entire device must be installed according to requirement of the traffic rule. Take the license to riding. NOTICE: Control the speed and load during 1000kmof running in period. Load should be within 100kg(including driver) If take more weight and speed will reduce life of engine, Change the crankcase oil after 300km (Page 25) to a new motorcycle. -
Page 11: Engine Power Off Operation
Engine power off operation (Fig 20, Fig 21) Close oil: revolve to the lowest place according to picture. (Normal situation is loose the throttle grip, and the engine is idling speed) Put the key to “OFF FIG 20 FIG21 Stopping operation: When the motorcycle stop, put the key to “... - Page 12 table 4 Cycle speedometer（x1000km） Ref page Every month Item ﹡ Fuel pipe ﹡ Throttle grip ﹡ Core of the air filter Note1 C/1000km, if need: R ﹡ Spark plug C/2000km,If need: R ﹡ Valve ﹡ （300km）R Engine oil (300km) R ﹡...
-
Page 13: Cleaning Air Filter
Table 5 Trouble Trouble reason Solution phenomenon Change fuel The octane value of the fuel is too low Clean oil path Oil path stop up Check wire and change CDI Ignition time is too early or too late Check ignition and clear out Spark too weak or flameout vehicle unable to accelerate... -
Page 14: Adjusting Idling Speed
Adjusting idling speed(Fig 24, Fig 25) The carburetor is in the best situation before sold, if the carburetor is still influence riding Please adjust it under the instruction of professional man. Warm up few minutes before start。 Idle to adjust screw (1) is it is it improve idle speed slightly to enter to fasten, is it is it withdraw it than screw slowly after stocking to Fig24... -
Page 15: Replacing Gearbox Oil
Replacing gearbox oil (Fig 28) Suggestion engine oil : SAE 80W/90 Oil container Resolving capacity ：0.18L Changing capacity ：0.16L Take apart the immiting bolt (2), and the spilling bolt (1). Fig28 NOTICE: THE ENGINE MUST BE WARMER WHEN SPILLING, AND THE VEHCILE MUST BE STEADY BY MAIN STAND! Reinstall the spilling bolt after clean. -
Page 16: Radiator Maintenance
Radiator Maintenance Suggestion Cooled liquid Type: anti-freeze liquid It’s only using no rust no freeze liquid for this engine。 Inspecting Open the bolt, take the cover off, you can see the liquid lever is staying1/5，if less than1/5，please immit it. Immiting the Cooled liquid Ÿ... -
Page 17: Ⅷ.circuit
Ⅷ.Circuit Diagram - 29 - Ⅸ. Vehicle Storage Storage For the motorcycle not to be used for a long period of time, for example, in wintertime, some steps should be taken to prevent malfunction of and damage to its components, which might be caused by long storage. -
Page 18: Ⅹ.emission Control System Warranty Statement
- 31 - Ⅹ.Emission Control System Warranty Statement Wangye USA Co., LLC is pleased to explain the emission control system warranty on Highway Motorcycle. New Highway Motorcycle must be designed, built and equipped to regulations and standards of the United States Environmental Protection Agency and the California Air Resource Board and free from defects in material and workmanship that may keep it from these requirements in the all applicable regulations. - Page 19 Wangye USA, and the above warranty constitutes your sole remedy and the full liability of Wangye USA. In no event shall Wangye USA be liable for special, incidental or consequential damages howsoever caused, whether by negligence or otherwise resulting directly or indirectly from the use of the Motorcycle, or the Motorcycle’s...
