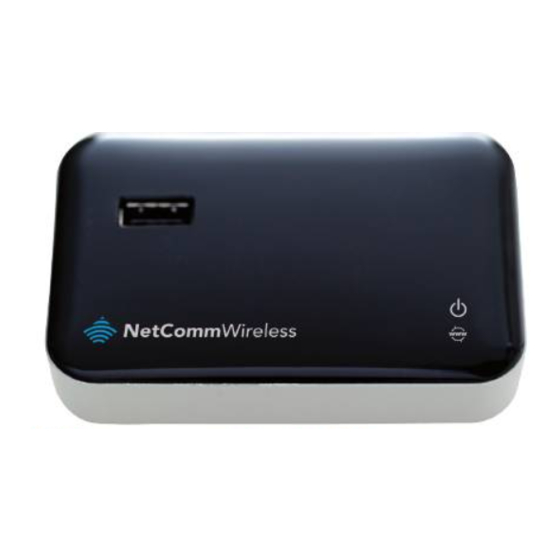

- Page 1 NETCOMM LIBERTY™ SERIES 3G/4G Wireless N150 Router m2 3GM2WN Quick Start Guide...
- Page 2 The router has been designed to be placed on a desktop. All of the cables exit from the rear for better organization. The LED indicator display is visible on the front of the router to provide you with information about network activity and the device status. See below for an explanation of each of the indicator lights.
-
Page 3: Rear Panel
REAR PANEL DESCRIPTION Reset button By using a paper clip, hold this button down for more than 10 seconds to reset to factory defaults. Hold this button for 3 seconds and release to enable the WPS push-button connect function. LAN/WAN port Switchable LAN/WAN Ethernet port for fixed line (ADSL/Cable/Satallite) connection or wired Ethernet clients (computers, laptops, etc) DC IN... - Page 4 Slide to 3G 1. If you are using a 3G/4G connection, attach your 3G/4G USB modem to the USB port on top of the 3GM2WN 2. Slide the “3G-DSL” switch to “3G”. 3. Connect the power adapter to the power socket of your router. Plug the power adapter into the wall socket and switch on.
- Page 5 Connecting with Ethernet WAN Modem Slide to DSL 1. If you are using a fixed line Ethernet WAN connection, slide the “3G-DSL” switch to “DSL”. 2. Connect the provided yellow Ethernet cable to the Ethernet port on the back of the router. 3.
- Page 6 Connecting to the Router via Wireless Tablet Online Gaming Smart Phone Laptop You can connect multiple wireless devices, including laptops, desktops and PDA’s to your router by following these two basic steps. 1. Using your wireless device, scan the wireless networks in your area and select the wireless network name listed on the included Wireless Security Card and then click connect.
-
Page 7: Connecting The Router To The Internet
2. At the login screen, type “admin” into the username and password field and then click “Login” to continue. This will take you to the “First-time Setup Wizard” page. 3. Click “Yes, let’s get started with the wizard” to begin configuring your 3GM2WN. - Page 8 4. Depending on the position of the “3G-DSL” switch, the wizard will show your chosen connection method. Follow the steps below to configure your connection. 3G/4G • Select your country of residence from the drop down box. • From the “Service Provider” drop down box, select your service provider and the network name (APN) will automatically appear •...
- Page 9 Select whether you want to use a wireless connection and what you would like the wireless network name (SSID) to be. If you change the wireless network name, make sure you remember it so you can connect to it later. You can also select whether to hide your wireless network or not.
- Page 10 Attention Telstra IPWAN Customers Telstra IPWAN Mobile Broadband services require a username and password, issued to you by Telstra at the time of purchase, which must be entered in your router before use. Please follow the steps below to setup your Telstra connection: 1.
- Page 11 5. Select “3G/4G” from the WAN Type drop down list if it’s not already selected. 6. Type in the APN required for your service (eg Telstra.corp) and enter the Username and Password as supplied by Telstra. 7. Untick the Enable option on the NAT fields to disable the NAT Masquerading option. 8.
- Page 12 Congratulations! You have successfully completed the set-up process and should now be connected to the Internet.
-
Page 13: Troubleshooting
Troubleshooting Cannot access the Internet • Make sure you have selected the correct connection type • Make sure you have entered the correct account details as provided by your Internet Service Provider • Ensure you are using the correct power adapter (see next page) Cannot establish a wireless connection •... - Page 14 Power Adapter • It is recommended that the supplied power adapter is used. This power adapter inputs 5V DC, 1A. • If the router receives less power from a different power supply, the LED’s may light up, but the router will not work. •...
